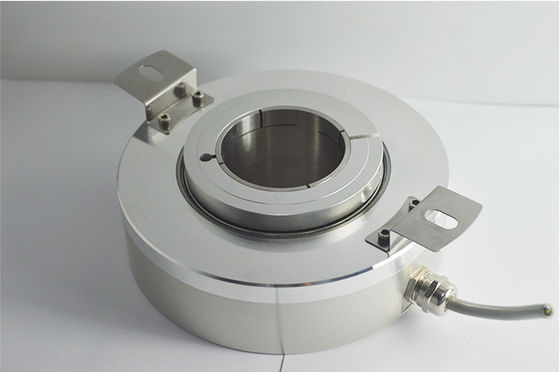

Shaft Diameter 48mm Through Hole Encoder K130 Differential Output 65536 Resolution

Shaft Diameter 48mm Through Hole Encoder K130 Differential Output 65536 Resolution

  • Shaft Diameter 48mm Through Hole Encoder K130 Differential Output 65536 Resolution
  • Shaft Diameter 48mm Through Hole Encoder K130 Differential Output 65536 Resolution
Shaft Diameter 48mm Through Hole Encoder K130 Differential Output 65536 Resolution
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K130 Series Incremental Encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Keywords: Through Hole Rotary Encoder External diameter: 130mm
Thickness: 48mm Installation Dimension: R72.5mm(spring Plate 130T145)
Resolution : 1024;2048;4096;8192;16384;32768;65536 Outlet Type: Socket Out From Side
Package: Carton Box Certification: CE
High Light:

incremental quadrature encoder

,

stainless steel encoder

Shaft diameter 48mm K130 through hole encoder differential output 65536 resolution



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Product introduction of K130 encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 130mm
Thickness 48mm
Installation dimension R72.5mm(spring plate 130T145)
Hollow shaft type through hole (clamping ring at prior)
Hollow shaft diameter 48mm,55mm,60mm;
Resolution 1024;2048;4096;8192;16384;32768;65536
Output phase Phase A+,B+,Z+,A-,B-,Z-
Supply voltage DC5V ; DC8-30V
Outlet type Socket out from side
Output mode Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 300 x 10-3 N.m
Intertia moment less than 220x 10-6kg.m2
Shaft load Radial 90N; Axial 60N
Top REV 3000RPM
Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°



K130 rotary encoder Usage

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • VFFS machine
  • Packing machinery
  • Capsule filling machine
  • Pharmaceutical machine
  • VVVF motor
  • DC motor
  • Stepper motor
  • Servo motion controller
  • Gearbox
  • DC garage door motor
  • DC servo motor
  • Stock driver
  • PMDC geared motor



Shaft Diameter 48mm Through Hole Encoder K130 Differential Output 65536 Resolution 0



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
