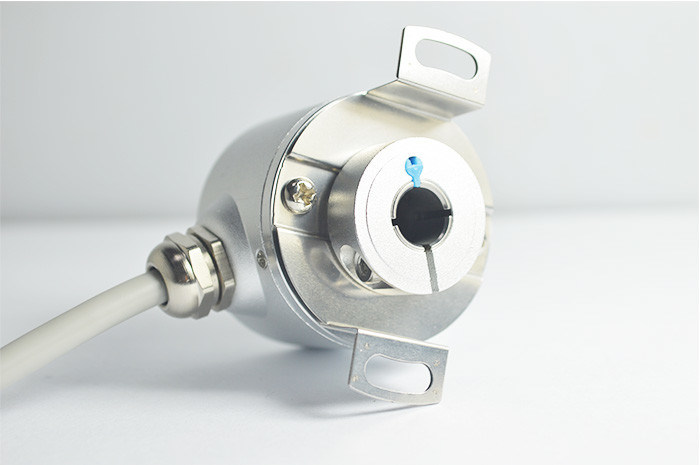

Mini Through Shaft Encoder , Quadrature Shaft Encoder External Diameter 38mm

Mini Through Shaft Encoder , Quadrature Shaft Encoder External Diameter 38mm

  • High Light

    incremental quadrature encoder

    ,

    stainless steel encoder

  • Encoder Type
    Quadrature Shaft Encoder
  • External diameter
    38mm
  • Hollow Shaft Type
    Blind Hole ; Through Hole
  • Pulse
    50ppr - 16384ppr
  • Output phase
    Phase A,B,Z A- B- Z-
  • Shaft Load
    Radiel: 40N; Axial:20N
  • Protection grade
    IP50 ; IP65
  • Hollow Shaft Diameter
    5mm,6mm,6.35mm;8mm
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K38 rotary encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Mini Through Shaft Encoder , Quadrature Shaft Encoder External Diameter 38mm

Mini shaft 6mm through hole encoder outer diameter 38mm operating temperature -40



Reference model number of K38 series

K38-T4C1000

K38-Q3F900

K38-T2N800

K38-Q1V720

K38-T6E450

K38-Q4C400

K38-T3FH360

K38-Q2P256

K38-T1F200



Product Description of K38 encoder

Items Basic parameters
Brand HENGXIANG
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  Long line drive (26LS31)
  Compatible RS422
  Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Consumption current 100mA Max
Shaft Load Radiel: 40N; Axial:20N
Top REV 5000RPM ;IP65≤3000 RPM
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Shock(endure) 490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade IP50 ; IP65
Cable length 1000mm
starting torque less than 9.8X10-3 N.m
Intertia moment less than 6.5x 10-6kg.m2
package Carton box
Net weight About 140g (with package)
Certification CE



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Questions you may like to know before ordering

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
