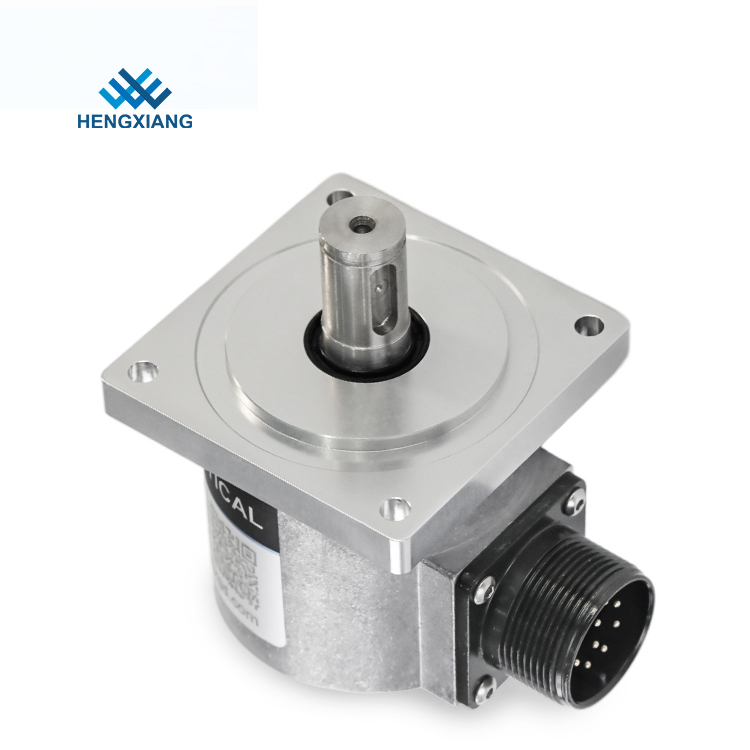

SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder

SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder

  • SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
  • SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: SC65F
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: SC65F Heavy Duty Encoder Solid Shaft 15mm With Keyway 5*5mm Push-pull Output Encoder Type: Incremental Encoder
External diameter: 65mm Thickness: 58mm
Flange Dimension: 68mm X 68mm Installation Dimension: 56mm X 56mm
Shaft Length: 26mm Solid Shaft diameter: 15mm( KEYWAY 5mm)
Supply voltage: DC5V ; DC8-30V Protection grade: IP50 ; IP65
High Light:

Solid Shaft 15mm Heavy Duty Encoder

,

SC65F

,

Push Pull Heavy Duty Encoder

SC65F heavy duty encoder solid shaft 15mm with keyway 5*5mm Push-pull output



Encoder model number for SC65F

SC65F-T1V500

SC65F-T2F512

SC65F-C3V600

SC65F-C4C720

SC65F-T6E500

SC65F-T1V900

SC65F-C2F1000

SC65F-C3V1024

SC65F-T4E2048

SC65F-C6C2500



SC65F Series Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 58mm
Flange dimension 68mm x 68mm
Installation dimension 56mm x 56mm
Shaft length 26mm
Solid Shaft diameter 15mm( KEYWAY 5mm)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+,A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Radial cable
Radial socket
  NPN/PNP(Open Collector Output)
  Voltage output
Output mode Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms

SC65F Solid Shaft 15mm Push Pull Heavy Duty Encoder 0

Shipping

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.



About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO9001:2000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers



Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Aviation and aerospace industry

· Architectural decoration industry

· Oil and gas industry

· FFS machine

· Disc shoe machine,

· Textile dyeing

· Leather machine

· Paper equipment

· Industrial machinery

· Paper cutter

· CNC machine tool

· Automatic measurement

· Remote control
