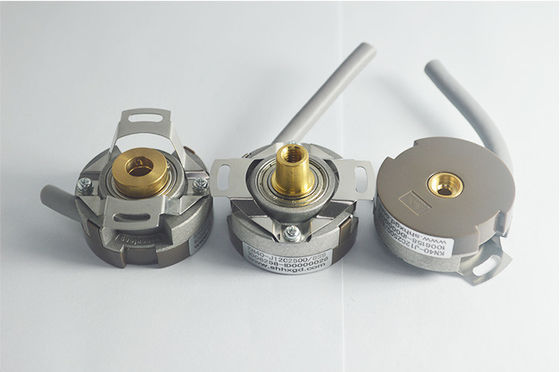

Product Name: Ultra Thin Photoelectric Encoder KN40 Through Hole 8mm Thickness 20mm 10000 Pulse Encoder Type: Incremental Encoder
External diameter: 40mm Outlet Type: Cable Out From Side
Cable out from side: IP40 Cable length: 500mm
Consumption Current: 100mA MAX Top Response Frequency: 300KHZ
Load Voltage: ≤DC30V
High Light:

Ultra Thin Photoelectric Encoder


Through Hole Photoelectric Encoder


10000 Pulse Photoelectric Encoder

Ultra thin photoelectric encoder KN40 through hole 8mm thickness 20mm 10000 pulse


 Product Description

Main Feather of KN40 encoder

Encoder type: Incremental encoder

External diameter: 40mm

Thickness: 20mm

Installation dimension: R17mm, R20mm;R23mm

Hollow shaft type: blind hole; through hole, taper hole,solid taper shaft

Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Protection grade: IP40

Cable length: 500mm


KN40 rotary encoder model no. for reference











Parameter table of KN40 Hollow shaft encoder

Items Basic parameters
Encoder type Incremental encoder
External diameter 40mm
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
  TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
