Aluminum Alloy Hollow Shaft Encoder Totem Pole Output

Aluminum Alloy Hollow Shaft Encoder Totem Pole Output

  • Aluminum Alloy Hollow Shaft Encoder Totem Pole Output
  • Aluminum Alloy Hollow Shaft Encoder Totem Pole Output
  • Aluminum Alloy Hollow Shaft Encoder Totem Pole Output
Aluminum Alloy Hollow Shaft Encoder Totem Pole Output
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K100
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

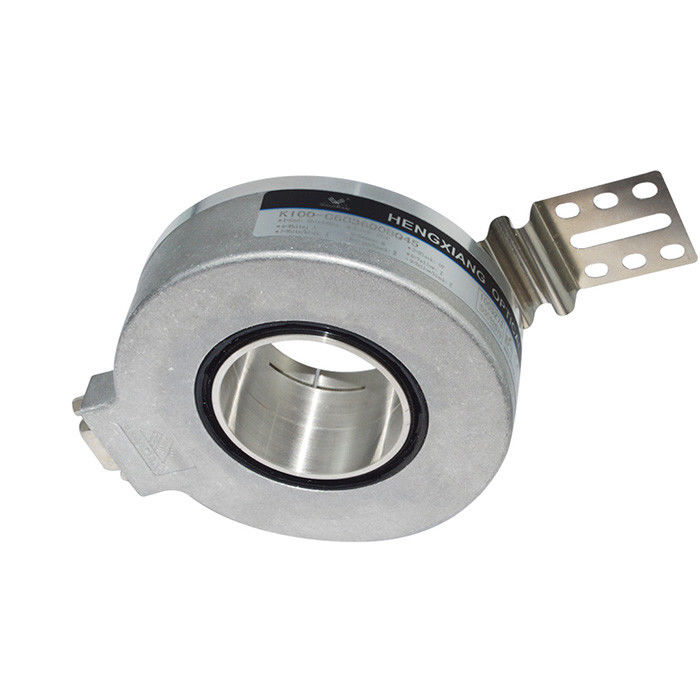

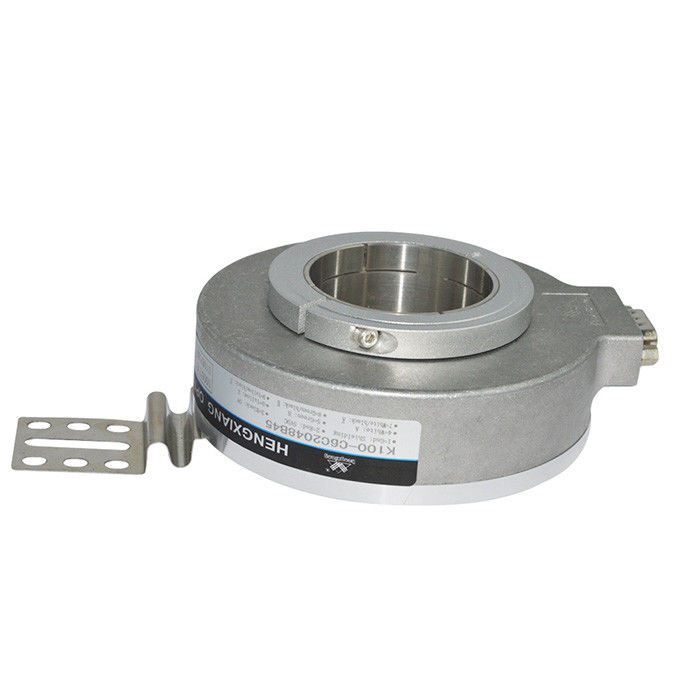

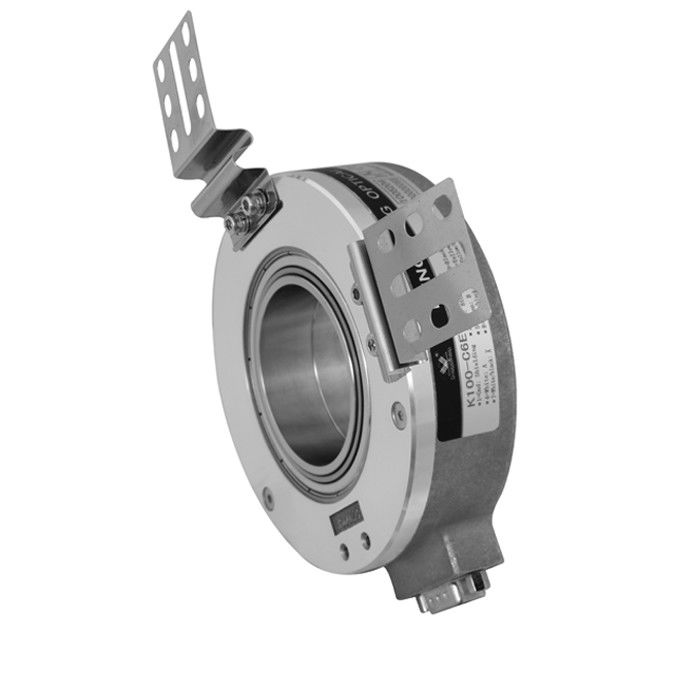

Product Name: Hollow Shaft Encoder Totem Pole Output K100 Optical Encoder Aluminum Alloy For Machinery Brand: HENGXIANG
Encoder Type: Incremental Encoder Hollow Shaft Encoder Totem Pole Output K100 Optical Encoder Aluminum Alloy For Machinery: R50mm(spring Plate 100T90)
Thickness: 38mm Supply voltage: DC5V ; DC8-30V
Outlet Type: Socket Out From Side Socket Out from side: Socket Out From Side
High Light:

Optical Hollow Shaft Encoder

,

Aluminum Alloy Hollow Shaft Encoder

,

Incremental Hollow Shaft Encoder

Hollow shaft encoder totem pole output K100 optical encoder aluminum alloy for machinery



 Product Description


  • Selling points of K100 Series Encoder

    Installation dimension: R50mm(spring plate 100T90)

    Encoder type: Incremental encoder

    Thickness: 38mm

    Supply voltage: DC5V ; DC8-30V

    Outlet type: Socket out from side

    Top response frequency: 300KHZ

    Hollow shaft type: through hole (clamping ring at prior and clamping ring at rear)

    Mark to Space ratio: 45% to 55%

    GND: not connect to encoder



    K100 rotary encoder Description

    Items Basic parameters
    Brand HENGXIANG
    Encoder type Incremental encoder
    External diameter 100mm
    Thickness 38mm
    Installation dimension R50mm(spring plate 100T90)
    Hollow shaft type through hole (clamping ring at prior and clamping ring at rear)
    Hollow shaft diameter 30mm,35mm,38mm;40mm;42mm;45mm;
    Resolution 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000;11520;12000;20000;24000;40000;48000;
    2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12;
    8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16;
    Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Supply voltage DC5V ; DC8-30V
    Outlet type Socket out from side
    Output mode NPN/PNP(Open Collector Output)
    Voltage output
    Push-pull output
    line drive (26LS31) TTL
    line drive(DC8-30V) HTL
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V

    Aluminum Alloy Hollow Shaft Encoder Totem Pole Output 0

    Related model number of K100 series

    K100-C1N1000B45

    K100-C2F1024B42

    K100-C3PH1200B40

    K100-C4C2048B38

    K100-C6E5000B35

    K100-C1N4096BQ45

    K100-C2F10000BQ42

    K100-C3VL11520BQ40

    K100-C4E20000BQ38

    K100-C6C48000BQ35



    Why choose us?

    HENGXIANG brand--The trustworthy partner
    CE approved--advantaged product quality;
    Fast delivery--strong stock product ability;

    Factory directly provide a competitive price;
    One-stop service--for your efficient purchasing experience;

    OEM design accepted--customized design, your own brand accepted.



    Shipment

    Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

    You could select the express according to your requirements if freight collector

    If you do not have any courier account, we will check and find a cheapest and safety express for you.

    Our factory has 30% discount with most courier company, so price could be as cheap as possible.



    Matters needing attention

    1. Must choose the power supply voltage: DC5V or DC8-30V

    2. Must choose leaf spring plate model number if you select hollow shaft encoder

    3. Please advise the motor speed (RPM) that you actually use

    4. If you have any other requirements, please provide detail parameters
