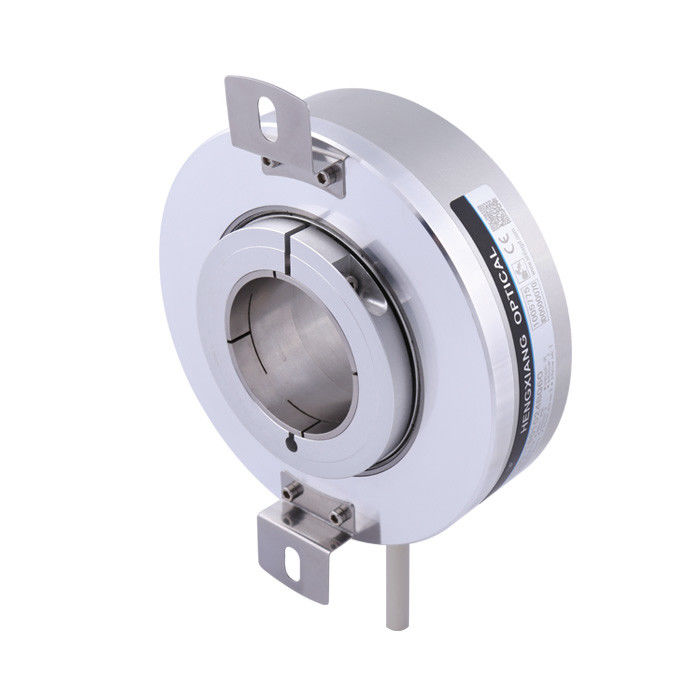

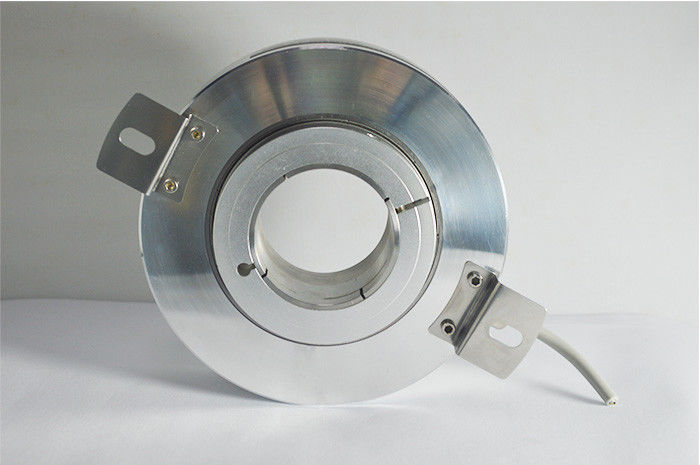

Product Name: Shaft Diameter 48mm K130 Through Hole Encoder Differential Output 65536 Resolution Brand: HENGXIANG
Encoder Type: Incremental Encoder External diameter: 130mm
Thickness: 48mm Installation Dimension: R72.5mm(spring Plate 130T145)
Hollow Shaft Diameter: 48mm,55mm,60mm; Supply voltage: DC5V ; DC8-30V
High Light:

48mm Shaft Through Hole Encoder

,

Differential Through Hole Encoder

,

3000RPM Through Hole Encoder

Shaft diameter 48mm K130 through hole encoder differential output 65536 resolution

 Product Description


  • About Our Factory

    o Own brand of "HENGXIANG" encoder

    o Has ISO9001:2000 Quality Management System Certificate and CE Certification

    o Invention patents five and utility model patents five

    o Passed Shanghai New and High-tech Achievements Transformation Project.

    o Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

    o Located in Shanghai city

    o 20-30 experienced workers

    Product introduction of K130 encoder

    Items Basic parameters
    BrandHENGXIANG
    Encoder typeIncremental encoder
    External diameter130mm
    Thickness48mm
    Installation dimensionR72.5mm(spring plate 130T145)
    Hollow shaft typethrough hole (clamping ring at prior)
    Hollow shaft diameter48mm,55mm,60mm;
    Resolution1024;2048;4096;8192;16384;32768;65536
    Output phasePhase A+,B+,Z+,A-,B-,Z-
    Supply voltageDC5V ; DC8-30V
    Outlet typeSocket out from side
    Output modePush-pull output
    line drive (26LS31) TTL
    line drive(DC8-30V) HTL
    Consumption current100mA MAX
    Top response frequency300KHZ
    Insulation resistance10MΩ
    GNDnot connect to encoder
    Mark to Space ratio45% to 55%
    starting torqueless than 300 x 10-3 N.m
    Intertia momentless than 220x 10-6kg.m2
    Shaft loadRadial 90N; Axial 60N
    Top REV3000RPM
    Environmental temperatureOperating:-20 ~+85°;storage:-25 ~+90°
