High Light
R85mm Through Hole Encoder
,Quadrature Optical Encoder
,DC30V Through Hole Encoder
-
Product NameK158 Through Hole Encoder 80000 P/R Quadrature Optical Encoder For Industrial Line Equipment
-
BrandHENGXIANG
-
Encoder TypeIncremental Encoder
-
External diameter158mm
-
Thickness34mm
-
Installation DimensionR85mm(spring Plate 158T170)
-
Hollow Shaft Diameter70mm,75mm,78mm;80mm;82mm
-
Supply voltageDC5V ; DC8-30V
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberK158
-
Minimum Order Quantity1Pcs
-
PriceConsult us
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability100K pieces per year

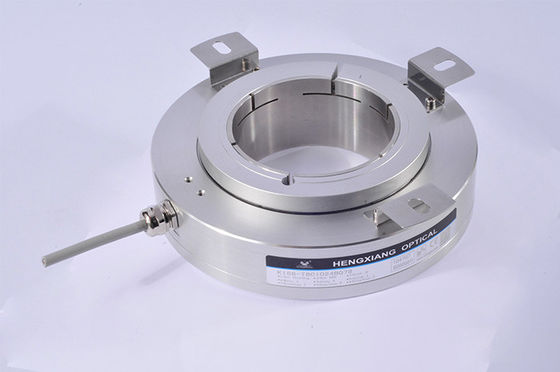

K158 Through Hole Encoder Quadrature Optical Encoder
K158 through hole encoder 80000 P/R quadrature optical encoder for industrial line equipment
Our Service
- Quick response once received customer’s quotation query
- Professional engineer team, to solve your problems at any time
- Strictly inspection before shipment
- Various encoder models to be selected
- Short lead time
- High quality standard
Quick Review of K158 Series encoder
Environmental humidity: Operating and storage: 35-85%RH(noncondensing)
Shaft Material: Stainless steel
Shell Material: aluminum alloy
Cable length: 1000mm(cable with shielding)
Protection grade: IP50
Certification: CE
Package: Carton box
Resolution : 1024;2048;20000;40000;80000
K158 Encoder Product Basis information
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 158mm |
| Thickness | 43mm |
| Installation dimension | R85mm(spring plate 158T170) |
| Hollow shaft type | through hole (clamping ring at prior) |
| Hollow shaft diameter | 70mm,75mm,78mm;80mm;82mm |
| Resolution | 1024;2048;20000;40000;80000 |
| Output phase | Phase A+,B+,Z+,A-,B-,Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Output mode | Push-pull output |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| starting torque | less than 400 x 10-3 N.m |
| Intertia moment | less than 350x 10-6kg.m2 |
| Shaft load | Radial 90N; Axial 60N |
| Top REV | 3000RPM |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° |
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
FAQ
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Our products are sold all over the world, you can rest assured.
