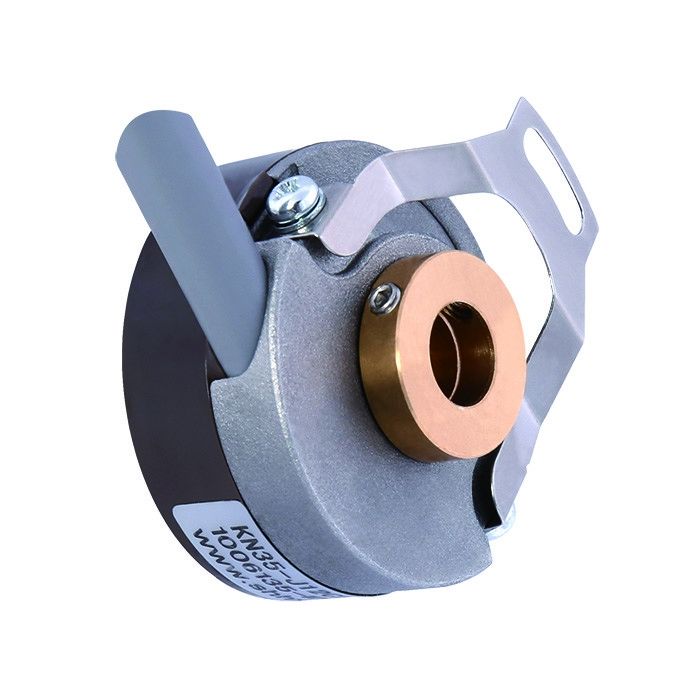

Incremental Rotary IP50 Through Hole Encoder 100mA

Incremental Rotary IP50 Through Hole Encoder 100mA

  • Incremental Rotary IP50 Through Hole Encoder 100mA
Incremental Rotary IP50 Through Hole Encoder 100mA
Product Details:
Place of Origin: Shanghai,China
Certification: CE,ISO9001
Model Number: K158
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: Through Hole 78mm K158 Hollow Shaft Encoder Thickness 43mm Aluminum Alloy Material IP50 Brand: HENGXIANG
Encoder Type: Incremental Encoder External diameter: 158mm
Thickness: 43mm Installation Dimension: R85mm(spring Plate 158T170)
Hollow Shaft Diameter: 70mm,75mm,78mm;80mm;82mm Consumption Current: 100mA MAX
High Light:

IP50 Through Hole Encoder


Incremental Rotary Through Hole Encoder


100mA Through Hole Encoder

Through hole 78mm K158 hollow shaft encoder thickness 43mm aluminum alloy material IP50
 Product Description

  • Production Catalogue

    If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

    But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.


    K158 Series encoder Characteristics

    Items Basic parameters
    Encoder typeIncremental encoder
    External diameter158mm
    Installation dimensionR85mm(spring plate 158T170)
    Hollow shaft typethrough hole (clamping ring at prior)
    Hollow shaft diameter70mm,75mm,78mm;80mm;82mm


    Consumption current100mA MAX
    Top response frequency300KHZ
    Insulation resistance10MΩ
    GNDnot connect to encoder
    starting torqueless than 400 x 10-3 N.m
    Intertia momentless than 350x 10-6kg.m2
    Shaft loadRadial 90N; Axial 60N
    Top REV3000RPM
    Environmental temperatureOperating:-20 ~+80°;storage:-25 ~+85°
    Environmental humidityOperating and storage: 35-85%RH(noncondensing)
    Vibration(endure)Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
    Sock(endure)1960m/s2 (200g),11 ms three times for X,Y,Z direction individually
    Shaft MaterialStainless steel
    Shell Materialaluminum alloy
    Cable length1000mm(cable with shielding)
    Protection gradeIP50
    Cable length1M (cable length could be added appropriately by
     require, but it need payment individually)
    packageCarton box
    Net weightAbout 1800g (with package)

    Principle of encoder
    An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
    Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
    Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
    With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
    Production date
    1. for 1-10 samples: 3-5 working days
    2. for 20-50 mass production: 7-10 working days
    3. for over 100pcs, production will be discussed with customers and ship on time
    Payment terms:
    1. T/T, western union, credit card, Paypal, etc
    2. 3-5 working days after payment received
    3. Encoders will be shipped once ready
    Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
    You could select the express according to your requirements if freight collector
    If you do not have any courier account, we will check and find a cheapest and safety express for you.
    Our factory has 30% discount with most courier company, so price could be as cheap as possible.

    More information
    If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
