76.5mm OD Rotary Hollow Shaft Absolute Encoder With Different Resolutions

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number KC76 Series Hollow shaft Encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Keywords Through Hole Shaft Encoder External diameter 76mm
Installation Dimension R34.5mm(spring Plate 76T69) Hollow Shaft Type Through Hole With Slot
Resolution  100PPR-32768PPR Supply voltage DC5V ; DC8-30V
Consumption Current 100mA MAX Shaft Load 3000RPM
High Light

76.5mm hollow shaft absolute encoder

,

100PPR hollow shaft absolute encoder

,

3000RPM hollow rotary encoder

Leave a Message
Product Description

76.5mm Outer Diameter Through Shaft Hollow Shaft Rotary Encoder with Different Resolutions


Main feature of KC76 encoder

Brand: HENGXIANG

Encoder type: Incremental encoder

External diameter: 76.5mm

Thickness: 28mm

Installation dimension: R34.5mm(spring plate 76T69)

Hollow shaft diameter: 18mm,20mm,22mm;25mm

Outlet type: Cable out from side

Supply voltage: DC5V ; DC8-30V



KC76 Series encoder Parameter table



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 76.5mm
Thickness 28mm
Installation dimension R34.5mm(spring plate 76T69)
Hollow shaft type through hole with slot
Hollow shaft diameter 18mm,20mm,22mm;25mm
Resolution 100;200;250;300;360;400;450;500;512;600;720;800;1000; 1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
7200;8192;10000;14400;16384;28800;32768
1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6; 2500/8;4096/4;4096/6;4096/16;5000/6;5000/8;5000/10; 5000/12;5000/16;
8192/8;8192/10;/8192/16;10000/8;10000/10;10000/16;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 1960m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Certification CE



Encoder Operation method

An incremental encoder outputs a defined amount of pulses per revolution, so that every pulse is expected to be on a defined mechanical position. The maximum deviation between this ideal position and the actual position is called integral non linearity (INL). The INL accuracy is an important value if the incremental encoder is used for positioning tasks.



The duty cycle describes the ratio between “high” time to “low” time of an incremental encoder. Typically this ratio is 50/50, which is equivalent to 180 el° high and 180 el° low.

The performance of magnetic incremental encoders increases with higher PPR settings and higher rotation speeds (RPM). This is in contrast to optical encoders where the performance decreases. The DNL and INL accuracy that are stated in our datasheets are worst case values, a better performance can be expected for higher PPR and RPM.



This is the maximum frequency that the encoder is able to output via the output lines.

For example, the frequency of a 1024 PPR encoder that rotates at 600 RPM is 200 Hz (200*1024/60s).

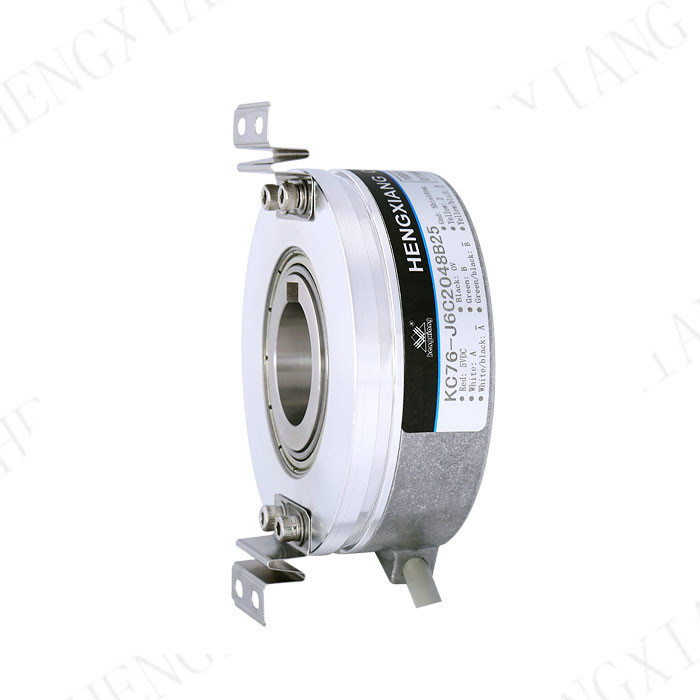

76.5mm OD Rotary Hollow Shaft Absolute Encoder With Different Resolutions 0



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
