12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment

12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment

Products - Through Hole Encoder
  • High Light

    12mm Shaft Through Hole Encoder

    ,

    Office Equipment Through Hole Encoder

    ,

    12mm incremental optical rotary encoder

  • Encoder Type
    Servo Motor Encoder
  • Through Hole Shaft Diameter
    8mm/10mm/12mm
  • Thickness
    34mm
  • Resolution
    50ppr(Min) To 8192ppr(Max)
  • Grade Of Protectio
    IP40
  • Optional Supply Voltage
    DC5V & DC8-30V
  • Shaft Load
    Radial 50N; Axial 30N
  • Outlet Type
    Wire Out From Side
  • Material
    Die Cast Aluminum
  • Package
    Carton Box
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K48-J Series servo encoder
  • Minimum Order Quantity
    1 piece to start order
  • Price
    negotiable
  • Packaging Details
    each piece will be packed by one single carton box, safety package before shipment
  • Delivery Time
    1-3 working days for sample, 7 -10 days for mass production
  • Payment Terms
    Western Union, MoneyGram, T/T, D/P, D/A, L/C
  • Supply Ability
    100K pieces per month

12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment

  • 12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment
  • 12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment
  • 12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment
Get Price Contact Now

For Servo Motor Incremental rotary Hollow Shaft Through Hole Encoder K48 Shaft 12mm For office equipment

Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters

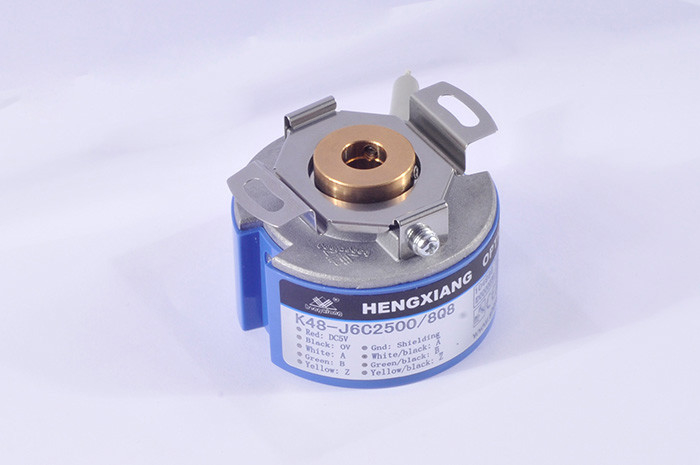

12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment 0

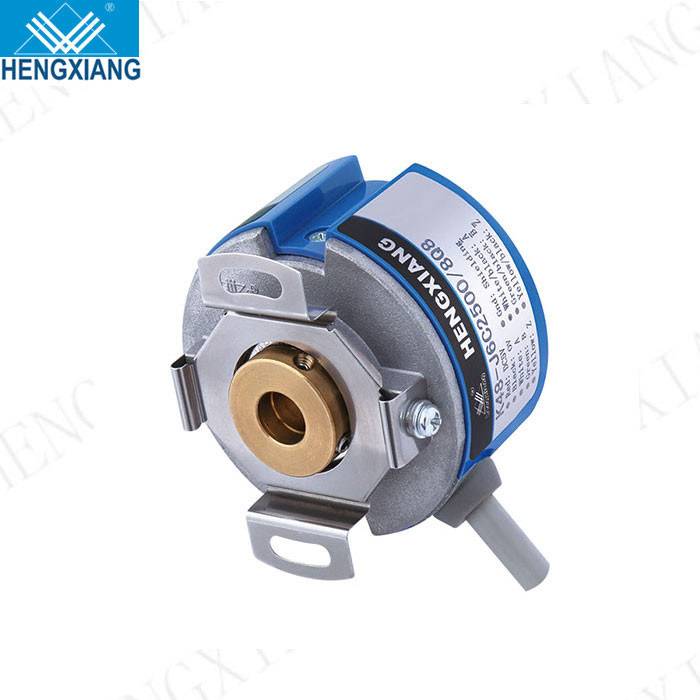

12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment 1



12mm Shaft Servo Motor Incremental Rotary Through Hole Encoder For Office Equipment 2



Related part number of K48 Series

K48-J6E2048Q12

K48-J6C2500Q10

K48-J12E2000/4Q8

K48-J12C2500/8Q6

K48-J6E3600B12

K48-J6C1024B10

K48-J12E1200/6B8

K48-J12C1200/8B6

K48-J12E1000/6Q12

K48-J12C1000/16Q10



K48 Series encoder Specification



Brand HENGXIANG
Encoder type Incremental encoder
External diameter 48mm
Thickness 34mm
Installation dimension 40mm(spring plate 48T40)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;1000; 1024;1200;2000;2048;2500; 4096;5000;8192
  1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4； 2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8;8192/4; 8192/6;8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
  TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Advantage of “HENGXIANG” encoder factory

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment
