KN40 10mm Taper Optical Rotary Encoders Servo Motor UVW Signal Resolution 20000ppr

KN40 10mm Taper Optical Rotary Encoders Servo Motor UVW Signal Resolution 20000ppr

  • KN40 10mm Taper Optical Rotary Encoders Servo Motor UVW Signal Resolution 20000ppr
  • KN40 10mm Taper Optical Rotary Encoders Servo Motor UVW Signal Resolution 20000ppr
  • KN40 10mm Taper Optical Rotary Encoders Servo Motor UVW Signal Resolution 20000ppr

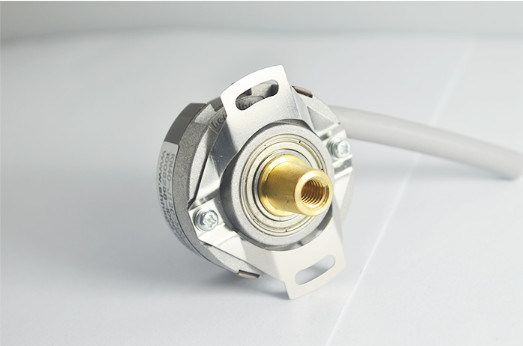

KN40 10mm Taper Optical Rotary Encoders Servo Motor UVW Signal Resolution 20000ppr
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: KN40
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Brand: HENGXIANG Encoder Type: Incremental Encoder
External diameter: 40mm Thickness: 20mm
Installation Dimension: R17mm, R20mm;R23mm Hollow Shaft Type: Blind Hole; Through Hole, Taper Hole,solid Taper Shaft
Solid Shaft Diameter: 10mm (taper Shape) Hollow Shaft Diameter: 6mm;8mm;9mm;9.52mm;10mm
Resolution : 1000-20000;1000-5000/4/6/8 Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage: DC5V ; DC8--30V Outlettype: Cable Out From Side
Output mode: NPN/PNP/Voltage/Push-pull/HTL/TTL Protection grade: IP40
Certification: CE Net weight : About 90g (with Package)
High Light:

UVW Signal Absolute Optical Rotary Encoder

,

Optical Rotary Taper Shaft Encoder

,

Servo Motor Absolute Position Encoder

KN40 10mm taper shaft super thin servo motor UVW signal resolution up to 20000ppr small size HENGXIANG





(1). The adventage of KN40 Series Encoder

Encoder type: Incremental encoder with various shaft size(Blind hollow/Through hole/Taper hole/Solid taper hole)

Outer diameter : 40mm

Thickness: Ultra-thin with 20mm



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 40mm
Thickness 20mm
Installation dimension R17mm, R20mm;R23mm
Hollow shaft type blind hole; through hole, taper hole,solid taper shaft
Solid shaft diameter 10mm (taper shape)
Hollow shaft diameter 6mm;8mm;9mm;9.52mm;10mm
Resolution 1000;1024;2048;2500;4096;5000;8192;10000;16384;20000
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlettype Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frenquency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+100°C;storage:-25 ~+100°C
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material Dia cast aluminium
Certification CE
package Carton box
Net weight About 90g (with package)
