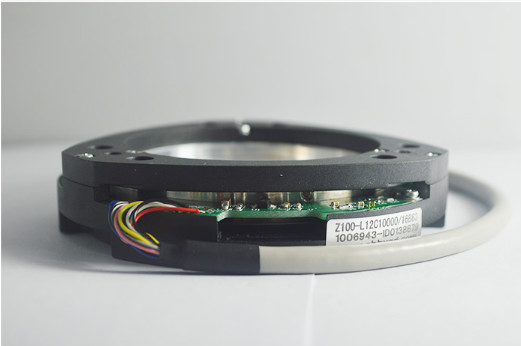

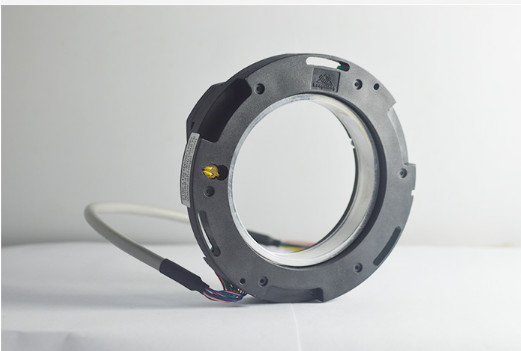

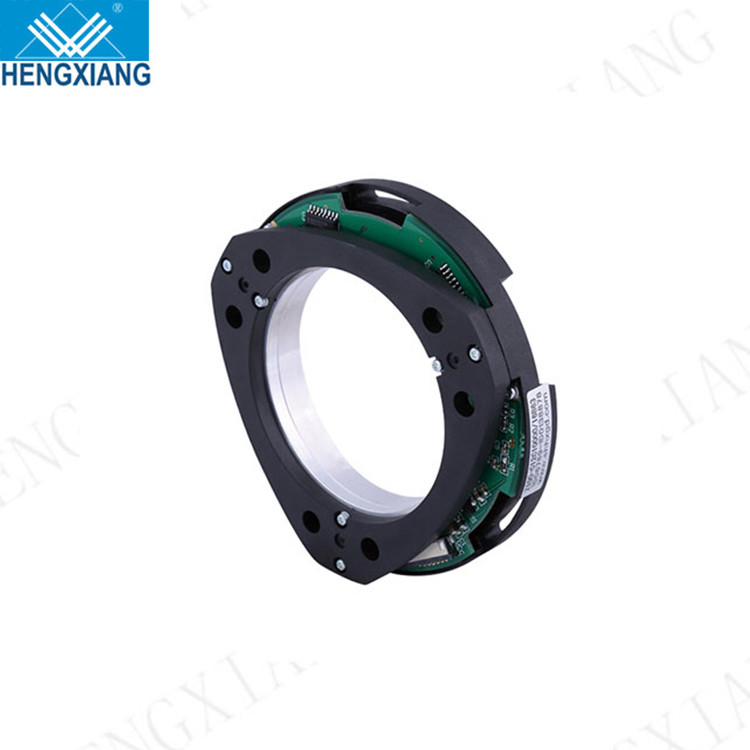

Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial

Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial

  • Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial
  • Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial
  • Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial
Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z100
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Brand: HENGXIANG Encoder Type: Bearingless Encoder
External diameter: 100mm Thickness: 16mm
Hollow Shaft Type: Through Hole Hollow Shaft Diameter: 40mm;63mm
Resolution: 2500-10000/8/10/16 Output phase: A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Output Mode: Radial Cable/socket;line Drive (26LS31) TTL;line Drive(DC8-30V) HTL Net weight : About 200g (with Package)
High Light:

Bearingless Optical Motor Shaft Encoder

,

Hollow Shaft Absolute Optical Encoder

,

UVW Signal Radial Optical Shaft Encoder

Z100 bearingless unique encoder ultra thin hollow shaft up to 63mm UVW signal radial type



# 1. The adventage of Z100 Series Encoder

Z100 type: Incremental encoder with external diameter 100mm

Shaft diameter : 40mm/63mm

Thickness: Ultra-thin with 16mm

Resolution/Pole : Up to 10000/16

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 100mm
Thickness 16mm
Hollow shaft type through hole
Hollow shaft diameter 40mm;63mm
Resolution 2500/8;2500/10;2500/16;5000/10;5000/16;
10000/8;10000/10;10000/16
Output phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Output mode radial cable
radial socket
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
rise/fall time less than 1 us(cable length:2 meters)
Consumption current 120mA MAX
Top response frenquency 300KHZ
GND not connect to encoder
Slew speed (top response frequency/pulse)×60
Environmental temperature Operating:-20 ~+105°;storage:-25 ~+110°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminium alloy
Certification CE
package Carton box
Net weight About 200g (with package)




#2. Associated model number of Z100 series



Z100 Bearingless Optical Shaft Encoder Ultra Thin Hollow Shaft UVW Signal Radial 0



....



# 3. Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



# 4. Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



# 5. The reason to choose us

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



# 6. FAQ

Q1: What are our strengths?

A1: ※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing    institutions.

※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.

※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.

※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.

Q2:What can we do for you?

A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.

Q3: How to select a right encoder model?

A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q4: Do you offer technical support?

A4: Yes, we have professional technician who can solve all your doubts.



# 7. Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.

# 8. Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.
