K35 Blind Hole Hollow Shaft Encoder 6mm High Precision

K35 Blind Hole Hollow Shaft Encoder 6mm High Precision

  • High Light

    Blind Hole Hollow Shaft Encoder


    High Precision Hollow Shaft Encoder


    6mm Hollow Shaft Rotary Encoder

  • Brand
  • Encoder Type
    Incremental Encoder
  • External diameter
  • Thickness
  • Installation Dimension
    40mm(spring Plate 35T40); 29mm(35T29)
  • Hollow Shaft Type
    Blind Hole
  • Hollow Shaft Diameter
    6mm,8mm;10mm (Depth 15mm)
  • Resolution
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
  • Supply voltage
    DC5V & DC8--30V
  • Outlettype
    Cable Out From Side
  • Output mode
  • Protection grade
  • Net weight
    About 100g (with Package)
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

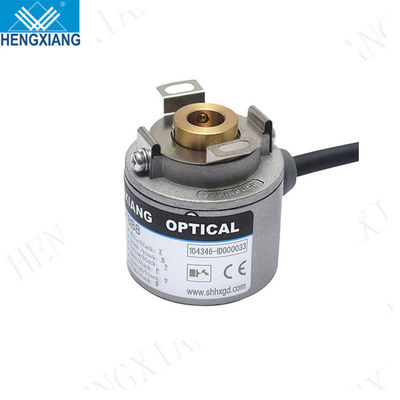

K35 Blind Hole Hollow Shaft Encoder 6mm High Precision

K35 logical compact configuration small size hollow shaft 6/8/10 mm outer 35mm encoder high precision low cost
-1. The parameter of K35

ItemsBasic parameters
Encoder typeIncremental encoder
External diameter35mm
Installation dimension40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft typeblind hole
Hollow shaft diameter6mm,8mm;10mm (Depth 15mm)
Resolution50;60;100;200;250;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500;4096;5000
Output phasePhase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltageDC5V & DC8--30V
OutlettypeCable out from side
Output modeNPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection gradeIP50
Cable length500mm
Consumption current120mA MAX
Top response frenquency300KHZ
Allowable rippleK35 Blind Hole Hollow Shaft Encoder 6mm High Precision 0
Load Voltage≤DC30V
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDnot connect to encoder
Mark to Space ratio45% to 55%
starting torqueless than 5.9x 10-3 N.m
Intertia momentless than 1x 10-6kg.m2
Shaft loadRadial 30N; Axial 20N
Top REV5000RPM
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating:-20 ~+85°;storage:-25 ~+90°
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell MaterialDia cast aluminium
packageCarton box
Net weightAbout 100g (with package)
