Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V

Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V

  • High Light

    Optical Solid Shaft Elevator Encoder

    ,

    IP50 Elevator Incremental Encoder

    ,

    Mechanical Elevator Encoder 30V

  • Encoder Type
    Incremental Encoder
  • External diameter
    51mm
  • Output mode
    NPN; PNP; Voltage; Push-pull; TTL; HTL
  • Outlet Type
    Radial Cable; Radial Socket; Radial Cable With Plug
  • Phase
    A/AB/ABZ/±AB/±ABZ/±ABZUVW
  • Resolution
    100-23040 Ppr
  • Diameter Of Shaft
    Solid Shaft 8mm(D Type)
  • Protection Grade
    IP50; IP65
  • Supply Voltage
    DC5V; DC8-30V
  • Thickness
    29mm
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S52
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V

Optical solid shaft incremental mechanical medium duty elevator encoder 5-30V



1. Feature: 8mm Solid shaft incremental pole encoder.



2. Application: Motor, CNC and other industrial automations.



3. Important parameters: High protection grade IP65, High resolution 100-23040 ppr, UVW signal,                                                   resolution/pole up to 8192/8







Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
51mm
Thickness
29mm
Installation dimension
diameter 40mm
Shaft length
16mm
Solid Shaft diameter
8mm(D shape)
Resolution
1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
4096;5000;5760;8192;10000;11520;16384;20000;23040

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;

2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from back
Socket out from back
Cable out from back with socket
Output mode
NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 5 x 10-3 N.m
Intertia moment
less than 3x 10-6kg.m2
Shaft load
Radial 60N; Axial 60N
Top REV
3000RPM ;IP65≤2000r rpm
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ~+80°;storage:-25 ~+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Protection grade
IP50 ; IP65
Cable length
1M (cable length could be added appropriately by

require, but it need payment individually)
Certification
CE
package
Carton box
Net weight
About 300g (with package)





Products Description

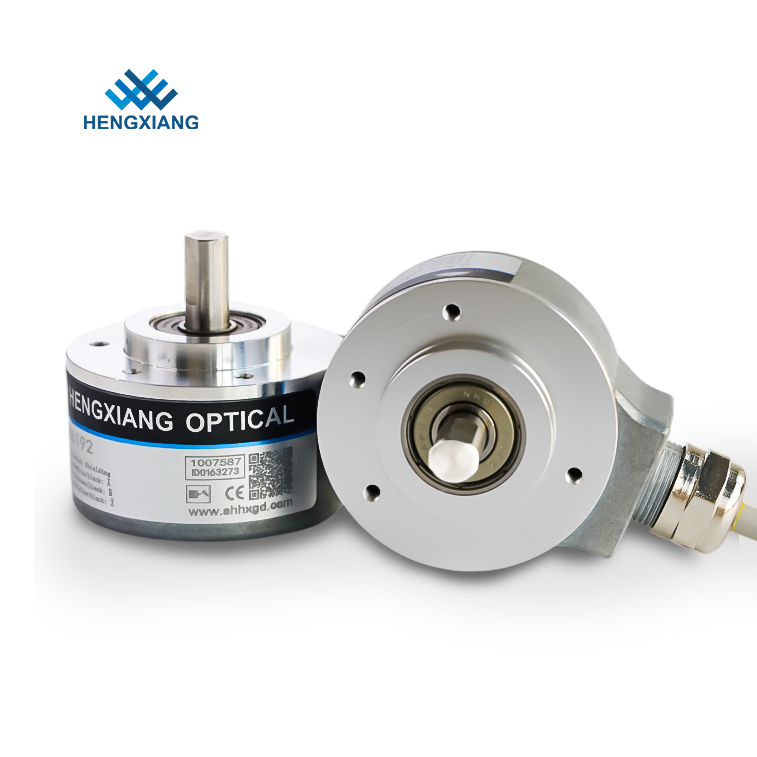

Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 0

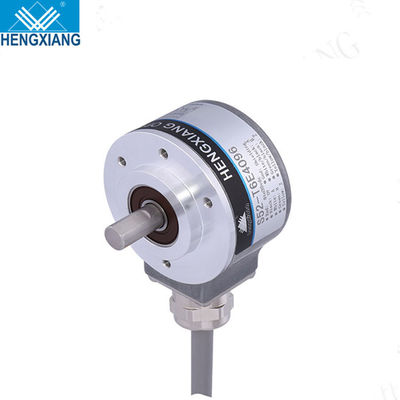

Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 1
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 2



Model Selection Guide
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 3











S52 encoder model number for reference:

S52-T2N1024 DC12V

S52-Q2F2048 DC30V

S52-TE3V1200 DC8-30V

S52-T3F5760 DC24V

S52-Q4E8192 DC5V

S52- TE4C5000

S52-T6C3600

S52-Q6E2000

S52-TE3PH10000

S52-T12C1024/4 DC5V

S52-Q12E2048/6 DC8-30V

S52-T6E12C4096/8 DC5V

Manufacturing Dimensions
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 4
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 5

Product packaging
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 6
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 7
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 8
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 9
Product Usage
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 10
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 11
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 12
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 13
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 14
Customers' Feedback
Optical Solid Shaft Incremental Mechanical Medium Duty Elevator Encoder 5 - 30V 15
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
