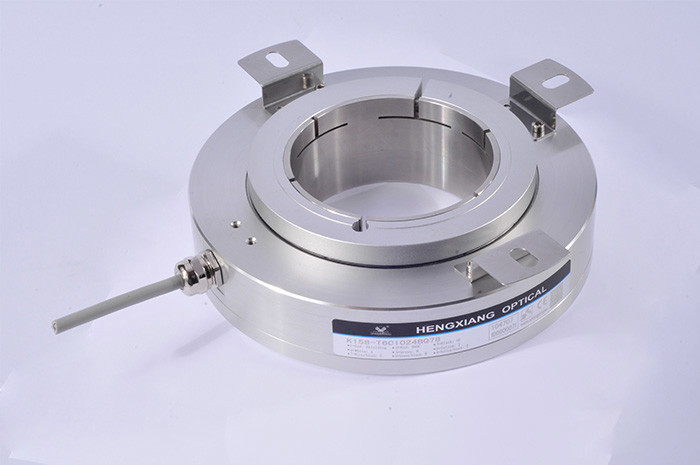

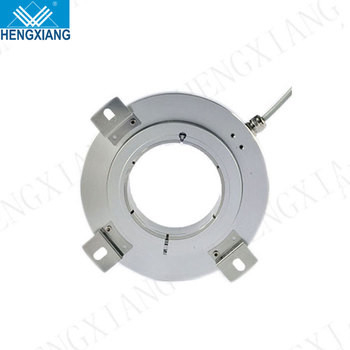

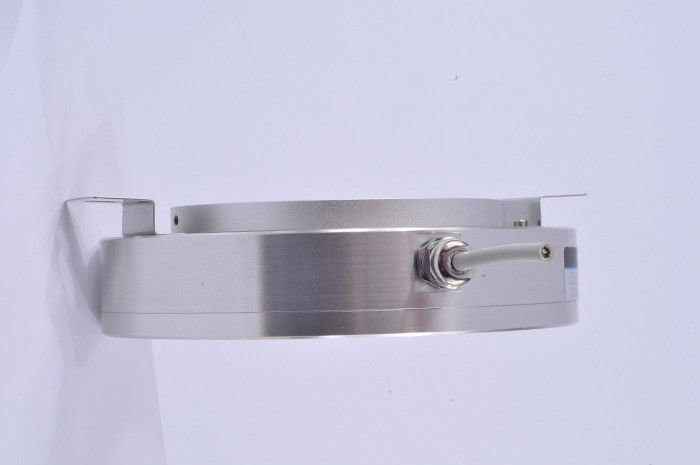

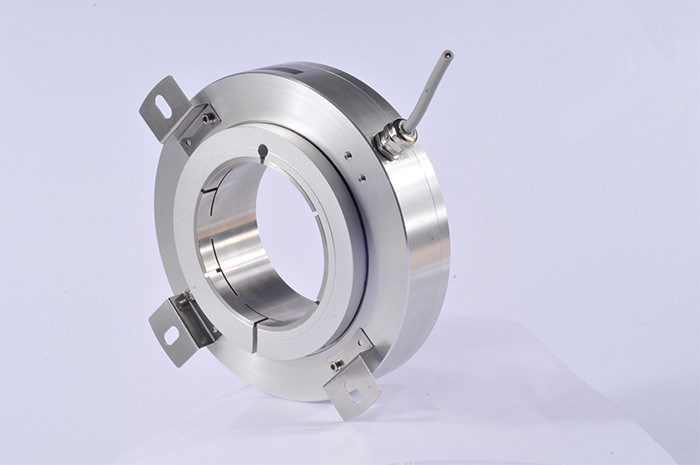

Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158

Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158

  • High Light

    Hollow Shaft Electronic Encoder

    ,

    K158 Hollow Shaft Incremental Encoder

    ,

    82mm High Resolution Rotary Encoder

  • Product Name
    Large Aperture Rotary Encoder Position Measuring‎ Through Hole 75mm K158-T6C2048BQ75 For Elevator
  • External diameter
    158mm
  • GND
    Not Connect To Encoder
  • Installation Dimension
    R85mm(spring Plate 158T170)
  • Resolution
    1024;2048;20000;40000;80000
  • Supply voltage
    DC5V ; DC8-30V
  • Top Response Frequency
    300KHZ
  • Consumption Current
    100mA MAX
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    large aperture rotary encoder position measuring‎ through hole 75mm K158-T6C2048BQ75 for elevator
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158

Hollow shaft electronic encoder elevator spare parts 80000 ppr shaft up to 82mm K158





1. Feature: Large shaft, sturdy and durable, various output mode available.



2. Application: Automation control like CNC machine, motor, industrial line equipment.



3. External dimensions: External dia 158mm, thickness 43mm, shaft max 82mm.



4. Resolution: Up to 80000 ppr



5. Supply voltage: DC5V; DC8-30V



6. Protection grade: IP50



Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
158mm
Thickness
43mm
Installation dimension
R85mm(spring plate 158T170)
Hollow shaft type
through hole (clamping ring at prior)
Hollow shaft diameter
70mm,75mm,78mm;80mm;82mm
Resolution
1024;2048;20000;40000;80000
Output phase
Phase A+,B+,Z+,A-,B-,Z-
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from side
Output mode
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current
100mA MAX
Top response frenquency
300KHZ
Insulation resistance
10MΩ
GND
not connect to encoder
starting torque
less than 400 x 10-3 N.m
Intertia moment
less than 350x 10-6kg.m2
Shaft load
Radial 90N; Axial 60N
Top REV
3000RPM
Environmental temperature
Operating:-20 ~+80°;storage:-25 ~+85°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)
1960m/s2 (200g),11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
aluminium alloy
Cable length
1000mm(cable with shielding)
Protection grade
IP50
Cable length
1M (cable length could be added appropriately by

require, but it need payment individually)
Certification
CE
package
Carton box
Net weight
About 1800g (with package)
Net weight
About 1700g (with package)



Cable length
1M (cable length could be added appropriately by

require, but it need payment individually)
Certification
CE
package
Carton box
Net weight
About 670g (with package)

Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158 0



Model Selection Guide
Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158 1

Model Number of K158 encoder for reference

K158-T4E1024BQ70

K158-T6C2048 BQ75

K158-T4E20000 BQ78

K158-T6C40000 BQ80

K158-T4E80000 BQ82

K158-T6C1024 BQ70

K158-T4E2048 BQ75

K158-T6C20000 BQ78

K158-T4E40000 BQ80

K158-T6C80000 BQ82



Manufacturing Dimensions
Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158 2

Product Usage
Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158 3
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158 4
FAQ
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
