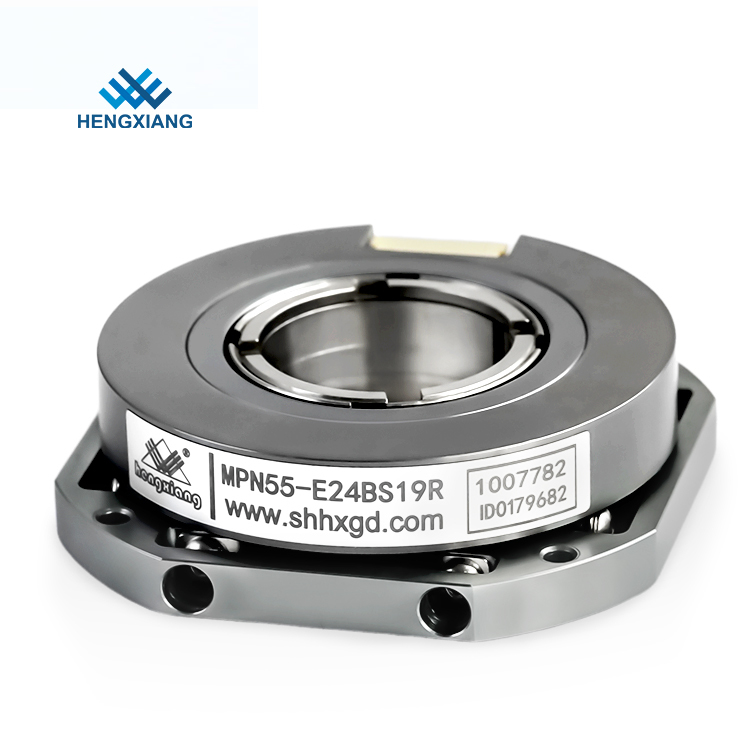

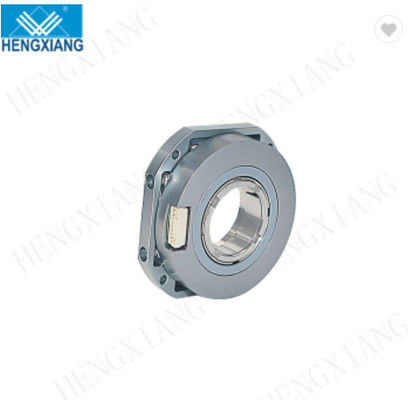

16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55

16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55

Products - Hollow Shaft Absolute Encoder
  • High Light

    Rotary Flange Absolute Robot Encoder

    ,

    32bits Hollow Shaft Absolute Encoder

    ,

    SSI 15mm Robot Absolute Encoder

  • Brand
    Hengxiang
  • Encoder Type
    Absolute Encoder
  • External Diameter
    55mm（Mounting Flange 65mm）
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    14mm; 15mm; 19mm; 20mm; 24mm
  • Thickness
    15mm
  • Resolution
    Single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit; Multi-turn: 1716=17+16Bit, 1916=19+16Bit,2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
  • Interface
    E=SM08B-GHS-TB ；J=radial Cable
  • Communication
    B=BISS-C; S=SSI
  • Electrical Connection
    R=RS-485
  • Output Mode
    M=multi-turn; S=single-turn
  • Protection
    IP50
  • Net Weight
    About 150g
  • Allowable Speed
    ≤32200 R/min (restricted By Mechanical Speed Limit)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    MPN55
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55

  • 16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55
  • 16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55
  • 16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55
  • 16bits 32bits Multi-Turn Rotary Flange Absolute Robot Encoder SSI 15mm Hollow MPN55
Get Price Contact Now

16bits 32bits multi-turn rotary flange absolute robot encoder SSI 15mm hollow MPN55



Absolute encoder:

Absolute encoder is the sensor which outputs digital directly, there are several concentric code discs along the radial direction on its circular code disc, there are translucent and non-translucent sectors on each channel composed of each other, the sector trees of adjacent code channels are double relationship, the number of code channels on the code disc is the number of bits of its binary digital, on one side of the code disc is the light source.



1. Feature: Flange encoder, absolute type, multi-turn, hollow shaft, SSI encoder,

high quality encoder chinese supplier in Shanghai.



2. Application: Servo motor, robot and other industrial automations.



3. Important parameters:

Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder
External diameter
55mm(Mounting flange 65mm)
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB ；J=radial cable
Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode
M=multi-turn
S=single-turn
Scanning principle
Reflective grating code
Accuracy
±80"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 30N; Axial 20N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 150g



4. Details of MPN55
