48000 High Resolution Encoder Hollow Shaft TTL Output For Elevator Parts

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K100-C Series
Minimum Order Quantity 1 piece
Price negotiable
Packaging Details each piece will be packed by one single carton box, safety package before shipment
Delivery Time 1-3 working days for sample, 7 -10 days for mass production
Payment Terms Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability 100K pieces per month
Product Details
Brand HENGXIANG Shaft Diameter 30mm/35mm/38mm/40mm/42mm/45mm
Thickness 40mm Resolution 100ppr(Min) To 48000ppr(Max)
Grade Of Protection IP50 Optional Supply Voltage DC5V & DC8-30V
Output Mode Open Collector, Voltage Output, Push-pull, TTL,HTL Outlet Type Socket From Side
Wire Length 1M (it Can Be Added As Requirement) Weight About 670g (with Package)
High Light

electric motor encoder

,

high speed rotary encoder

Leave a Message
Product Description

K100-C series 100mm 45mm hollow shaft elevator rotary encoder suitable For elevator parts 48000 resolution TTL output

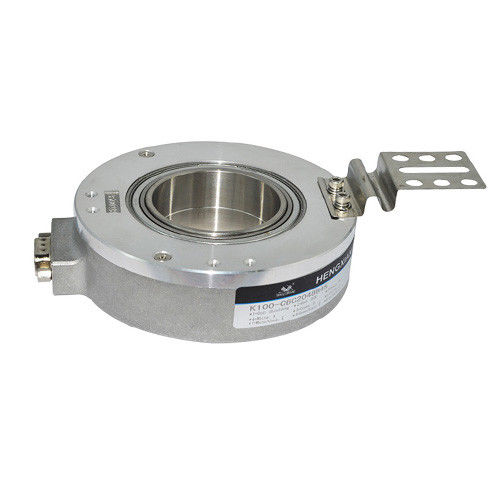

48000 High Resolution Encoder Hollow Shaft TTL Output For Elevator Parts 0



Specifications:



Items

Basic parameters
External dimensions External diameter: 100mm
Thickness: 38mm
Shaft diameter: 30mm/35mm/38mm/40mm/42mm/45mm
Resolution 100;200;250;256;360;500;512;600;512;600;700;800;900
1000;1024;1200;2000;2048;2500;3000;3600;4096;5000;7200; 8192;10000;11520;12000;20000;24000;40000;48000
Output phase Phase A,B,Z or A B Z antipole
Supply voltage DC5V & DC8-24V
Outlettype Socket out from side
Output mode N=Collector open circuit output
V=Voltage output
F=Push-pull output
Difference output C=Long line drive (26LS31)
Compatible RS422
E=Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 670g (with package)
Certification CE



More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.



Lead time:

1-3 working days for sample
7-10 working days for mass production



Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
