Push Pull High Precision Rotary Encoder , 10000 Revolution Optical Rotary Shaft Encoder

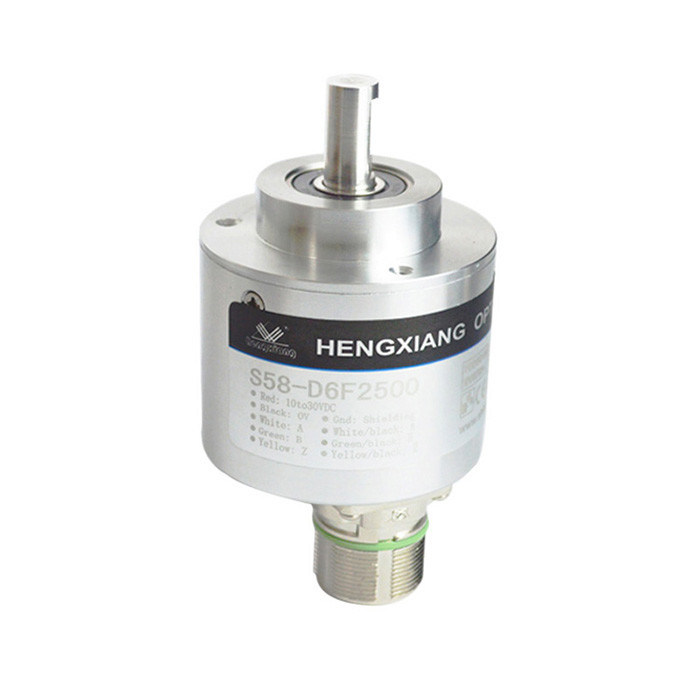

Push-pull complementary output with alarm/sensing S58 rotary encoder 10000 revolution optical rotary shaft encoder



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



S58 Series simply introduction

External diameter: 58mm

Thickness: 46mm

Installation dimension: diameter 48mm

Shaft length: 19.5mm

Solid Shaft diameter: 10mm (D shape)

Output phase: Phase A+, B+, Z+, A- B- Z-

Top REV: 6000RPM ;IP65≤3000r rpm

Bearing life: 1.5x109 revs at rated load (100000hrs at 2500RPM)

Environmental temperature: Operating:-20 ~+80°;storage:-25 ~+85°

Environmental humidity: Operating and storage: 35-85%RH (noncondensing)



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. For over 100pcs, production will be discussed with customers and ship on time



Some Related S58 encoder model number

S58-Q3F1200C3 DC12V

S58-Q3V1024 DC5-12V

S58-Q6C2500 DC5V

S58-T6E4096 DC8-30V

S58-T3F5000D DC24V

S58-T3N8192D DC5-30V

S58-D6E7200 DC8-24V

S58-D6C1000 DC5V

S58-D6E10000C5 DC8V

S58-C3N16384DC5-24V

S58-C3V20000C7 DC12V

S58-C4C23040 DC3.5V

S58-T4E500 DC24V

S58-D6C720 DC5V

S58-D6E512 DC8-30V

S58-C3V23040 DC5-30V



Push Pull High Precision Rotary Encoder , 10000 Revolution Optical Rotary Shaft Encoder 0



Encoder Parameter table

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 58mm
Thickness 46mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ , A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
  Cable out from side
  Socket out from side
  Socket out from back
Output mode NPN Collector open circuit output
  Voltage output
  Push-pull output
  Difference output Long line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Protection grade IP50 ; IP65
Certification CE
package Carton box
Net weight About 420g (with package)
