Flange 65×65mm Industrial Rotary Encoder , Solid Shaft Reflective Optical Encoder

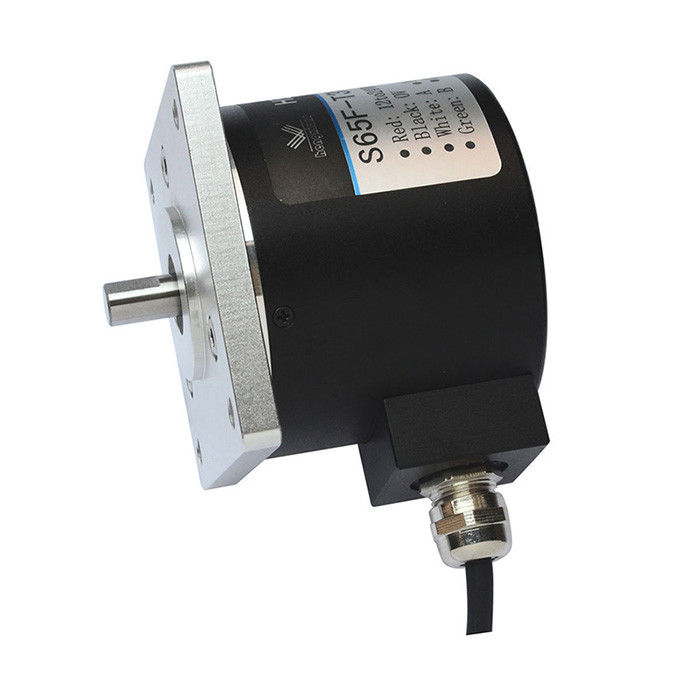

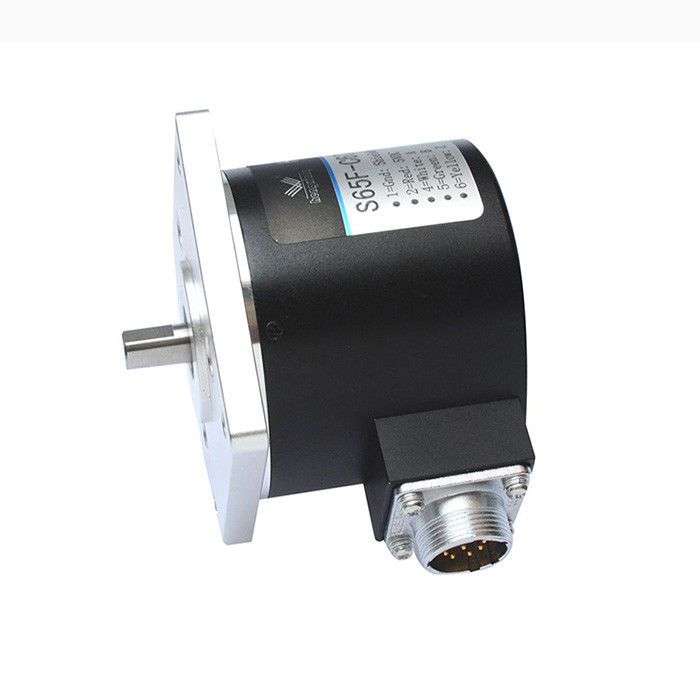

Flange 65*65mm solid shaft encoder 20000ppr 600rpm S65F encoder push-pull output



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



S65F Encoder Detail Specification

Items Basic parameters
External dimensions External diameter: 65mm,Thickness: 52.5mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
720;1000;1024;1200;1250;1440;1800;2000;2048;2500
;2880;3000;3600;4000;4096;5000;5760;8192;10000;
11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V & DC8-30V
Outlet type Cable out from side with metal sleeve
Socket out from side
  NPN/PNP(Open Collector Output)
  Voltage output
Output mode Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M
Shell aluminum
package Carton box
Net weight About 190g (with package)
Certification CE



Flange 65×65mm Industrial Rotary Encoder , Solid Shaft Reflective Optical Encoder 0



FAQ

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query



Encoder catalogue

Please email us directly or contact online service right now to get the latest catalogue.



Shipment

1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

2. You could select the express according to your requirements if freight collector

3. If you do not have any courier account, we will check and find a cheapest and safety express for you.

4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Application

VFFS machine

Packing machinery

Capsule filling machine

Pharmaceutical machine

Gearbox

DC garage door motor

DC servo motor

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine

VFD

Leather machine



Technical Theory

The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.

Replacement of Older Output Drivers

A logic gate interprets certain input voltages as high (logic 1) or low (logic 0).

TTL (transistor-transistor-logic): A signal above 2 V is interpreted as logic 1 and a signal less than 0.8 V is interpreted as logic 0. The output voltage ranges between 0-5 V.

HTL (high-threshold-logic): A signal above 3 V is a logic 1 and a signal less than 1 V is a logic 0. The high output signal level is dependent from the supply voltage. Because of the higher voltage difference between logic 0 and 1, the HTL logic is more immune to interference and more resistant against electrical noise.

Mechanical degree is the actual rotation of the shaft in degrees. Electrical degree is used for electrical signals. The required time for completing one alternating voltage/current cycle is defined as 360 electrical degrees (el°). For incremental encoders, one cycle is equal to one complete pulse. With a given PPR the electrical degree can be converted to mechanical degree for any incremental encoder.
