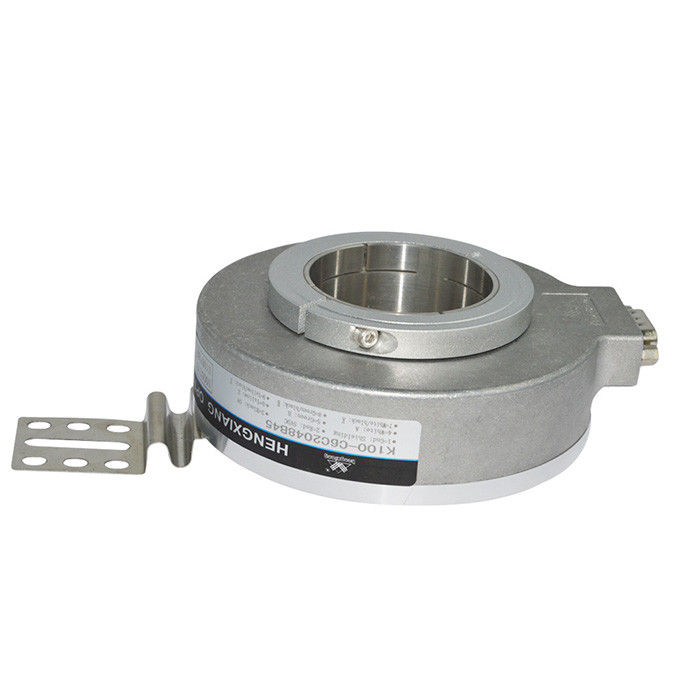

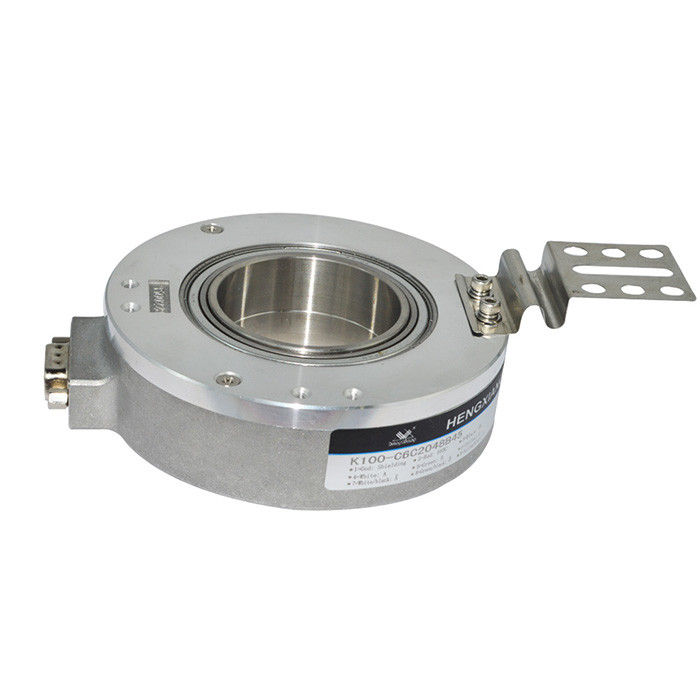

IP50 High Resolution Optical Encoder , 24000 Pulse Through Hole Encoder

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K100-C Series
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Product Name High Resolution Optical Encoder Shaft Diameter 30mm/35mm/38mm/40mm/42mm/45mm
External diameter 100mm Resolution 100ppr(Min) To 48000ppr(Max)
Installation Dimension R50mm(spring Plate 100T90) Optional Supply Voltage DC5V & DC8-30V
Output Mode Open Collector, Voltage Output, Push-pull, TTL,HTL Shaft Load Radial 90N; Axial 60N
Protection grade IP50 Top REV 3000RPM
High Light

high precision rotary encoder

,

reflective optical encoder

Leave a Message
Product Description

500 counts per revolution K100 24000 pulse through hole shaft encoder coaxially 0.03mm max



About our factory

1. Own brand of "HENGXIANG" encoder

2. Has ISO9001:2000 Quality Management System Certificate and CE Certification

3. Invention patents five and utility model patents five

4. Passed Shanghai New and High-tech Achievements Transformation Project.

5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

6. Located in Shanghai city

7. 20-30 experienced workers



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



Shipment

1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

2. You could select the express according to your requirements if freight collector

3. If you do not have any courier account, we will check and find a cheapest and safety express for you.

4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Our advantage

Customers from about 200 countries

IS09001:2015 Certification

Trademark Registration certificate

More than 20 years experienced engineers

Professional working team

High quality standard



FAQ

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.



IP50 High Resolution Optical Encoder , 24000 Pulse Through Hole Encoder 0



Product Characteristics

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 100mm
Thickness 38mm
Resolution 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000;11520;12000;20000;24000;40000;48000;
  2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12;
  8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Socket out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
starting torque less than 98 x 10-3 N.m
Intertia moment less than 120x 10-6kg.m2
Shaft load Radial 90N; Axial 60N
Top REV 3000RPM
Cable length 1000mm(cable with shielding)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Certification CE



Production video

There are various of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.
