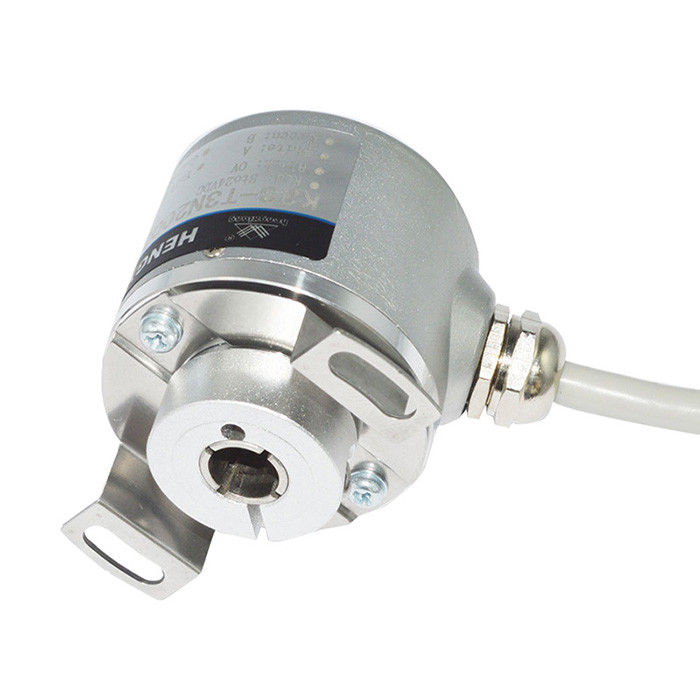

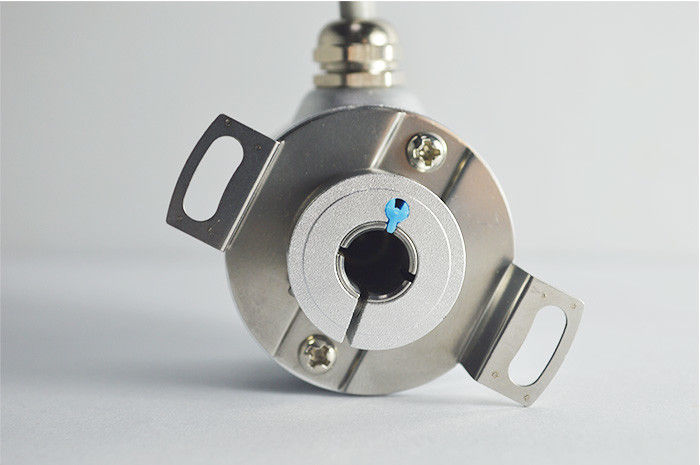

K38 Series Shaft Position Encoder 16384 Revolution Outer Diameter 38mm

Place of Origin Shanghai,China
Certification CE,ISO9001
Model Number K38 Series
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Keywards Shaft Position Encoder External diameter 38mm
Thickness 38mm Output phase Phase A,B,Z A- B- Z-
Hollow Shaft Diameter 5mm,6mm,6.35mm;8mm Shaft Load Radiel: 40N; Axial:20N
Shell  Die Cast Aluminum Certification CE
High Light

high resolution optical encoder


reflective optical encoder

Leave a Message
Product Description

Quadrature optical rotary encoder K38 through hole 6.35mm long driver 26LS31 IP65


Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be hold within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.


Simple Product introduction

Max resolution16384ppr

External diameter 38mm

Thickness 28mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn:50ppr to 16384ppr

Hollow shaft diameter 6mm,6.35mm, 8mm

Through hole or blind hole shaft

Protection level grade IP50 or IP65

Circuit signal output: NPN, PNP, Voltage output, Push-pull, Line driver output


Some Related K38 encoder model number

K38-T6C1024Q6.35 DC5V

K38-T6E1200Q6 DC8-30V

K38-T3N2048Q6.35 DC5V

K38-T3F720B8 DC5-12V

K38-T3N512B6 DC12-24V

K38-T3F360B5 DC12-24V

K38-T3V4096Q6.35 DC8-12V

K38-Q3F2500Q6.35 DC5-30V

K38-T6C8192Q6.35 DC5V

K38-T6C5000Q6 DC5V

K38-T6C10000B6 DC5V

K38-T6E16384B8 DC24V

K38-T6E50Q6.35 DC12V


K38 Series Shaft Position Encoder 16384 Revolution Outer Diameter 38mm 0



Items Basic parameters
Encoder type Incremental encoder
External diameter 38mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384
Output phase Phase A,B,Z A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Consumption current 100mA Max
Shaft Load Radial: 40N; Axial:20N
Top REV 5000RPM ;IP65≤3000r rpm
Shell Material die cast aluminum



Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.
