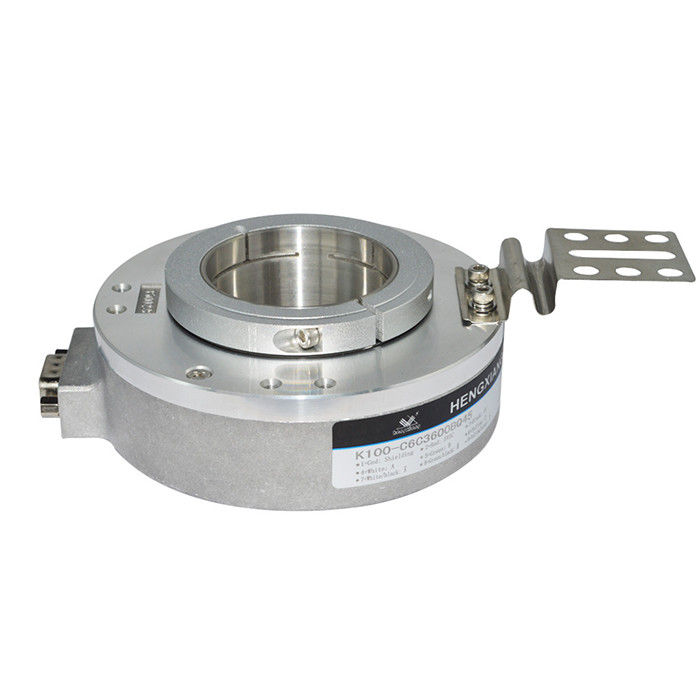

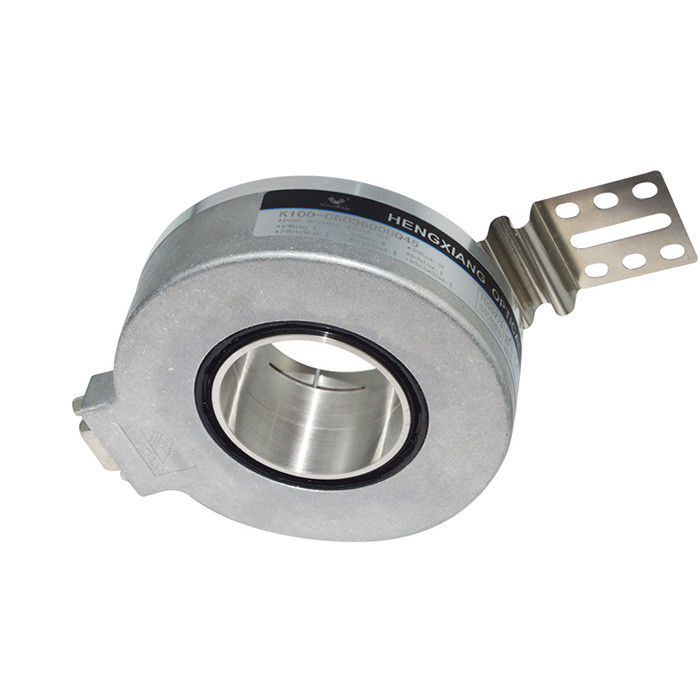

K100 Through Hole High Resolution Rotary Encoder External Diameter 100mm Shaft 42mm 12000ppr
-
High Light
high resolution optical encoder
,reflective optical encoder
-
Product NameHigh Resolution Optical Encoder
-
External diameter100mm
-
Resolution100ppr(Min) To 48000ppr(Max)
-
Installation DimensionR50mm(spring Plate 100T90)
-
Optional Supply VoltageDC5V & DC8-30V
-
Output ModeOpen Collector, Voltage Output, Push-pull, TTL,HTL
-
Shaft LoadRadial 90N; Axial 60N
-
Protection gradeIP50
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberK100-C Series
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
K100 Through Hole High Resolution Rotary Encoder External Diameter 100mm Shaft 42mm 12000ppr
K100 through hole encoder external diameter 100mm shaft 42mm 12000ppr high resolution rotary encoder
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
Encoder Usage
VFFS machine
Packing machinery
Capsule filling machine
Pharmaceutical machine
VVVF motor
Textile dyeing
Leather machine
Paper equipment
Industrial machinery
Paper cutter
CNC machine tool
Automatic measurement
Remote control
Our factory
1. Own brand of "HENGXIANG" encoder
2. Has ISO9001:2000 Quality Management System Certificate and CE Certification
3. Invention patents five and utility model patents five
4. Passed Shanghai New and High-tech Achievements Transformation Project.
5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
6. Located in Shanghai city
7. 20-30 experienced workers
Lead Time
3-5 working days for sample after full paid
7-15 days for mass production after full paid
Parameter table
Cable length
Protection grade
Cable length
Certification
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 100mm |
| Thickness | 38mm |
| Installation dimension | R50mm(spring plate 100T90) |
| Hollow shaft type | through hole (clamping ring at prior and clamping ring at rear) |
| Hollow shaft diameter | 30mm,35mm,38mm;40mm;42mm；45mm； |
| Resolution | 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000；11520;12000;20000;24000;40000;48000; |
| 2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12; | |
| 8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16; | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Socket out from side |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| 1000mm(cable with shielding) | |
| IP50 | |
| 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | |
| CE |
More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
FAQ
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
Q: Where is your factory?
A: Our factory is located on Shanghai City.
