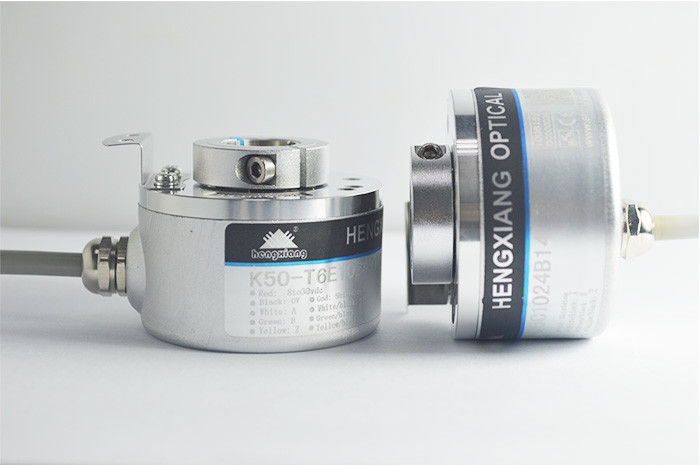

8192 High Resolution Optical Rotary Encoder Open Collector Output Incremental Type
|Place of Origin||Shanghai,China|
|Model Number||K50 Series|
|Minimum Order Quantity||1pcs encoder to start order|
|Packaging Details||each 1 piece was packed into single carton box|
|Delivery Time||3-5 working days for sample order, 7-15 working days for mass order|
|Payment Terms||D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc|
|Supply Ability||100K pieces per year|
|Keywards||High Resolution Rotary Encoder||Brand||HENGXIANG|
|External diameter||50mm||Hollow Shaft Diameter||8mm,10mm,12mm;14mm;15mm|
|Top Response Frequency||300kHz Max||Output Mode||Open Collector, Voltage Output, Push-pull, TTL,HTL|
|Protection grade||IP50 ; IP65||Shaft Load||Radiel: 40N; Axial:20N|
high precision rotary encoder,
high resolution optical encoder
8192 resolution open-collector output incremental encoder diameter of axle 10mm K50
Hollow shaft diameter:8mm, 10mm, 12mm; 14mm; 15mm
Resolution :50;60;66;100;200;250;256;300;360;400;450;500;512;600; 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384；23040
Consumption current:100mA Max
Bearing life:1.5x109 revs at rated load (100000hrs at 2500RPM)
Shaft Material:Stainless steel
Shell Material:Die cast aluminum
Protection grade:IP50; IP65
|Encoder type||Incremental encoder|
|Installation dimension||R27.5mm,R30mm, R34.5mm|
|Output mode||NPN/PNP(Open Collector Output)|
|Long line drive (26LS31)|
|Long line drive (RT7272)|
|Environmental temperature||Operating temperature: -20~+90°|
|Storage temperature: -25~+100°|
|Environmental humanity||Operating and storage: 35~85%RH (non-condensing)|
|Shell||Die cast aluminum|
|Consumption current||100mA Max|
|Shaft Load||Radiel: 40N; Axial:20N|
|Top REV||5000RPM ;IP65≤3000r rpm|
|Insulation strength||AC500V 60s|
|Net weight||About 140g (with package)|
Mechanical degree is the actual rotation of the shaft in degrees. Electrical degree is used for electrical signals. The required time for completing one alternating voltage/current cycle is defined as 360 electrical degrees (el°). For incremental encoders, one cycle is equal to one complete pulse. With a given PPR the electrical degree can be converted to mechanical degree for any incremental encoder.
Every 90 el° the incremental encoder outputs a rising or falling edge on the “A” or “B” output that can be interpreted as a count. If an encoder outputs 1000 PPR, a counter can interpret 4000 counts (4 counts each pulse).
The phase angle states the length between 2 edges, given in el°. This parameter is typically specified with a defined constant phase angle value and phase angle error (also called quadrature error).
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
About our factory
1. Own brand of "HENGXIANG" encoder
2. Has ISO9001:2000 Quality Management System Certificate and CE Certification
3. Invention patents five and utility model patents five
4. Passed Shanghai New and High-tech Achievements Transformation Project.
5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
6. Located in Shanghai city
7. 20-30 experienced workers
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
