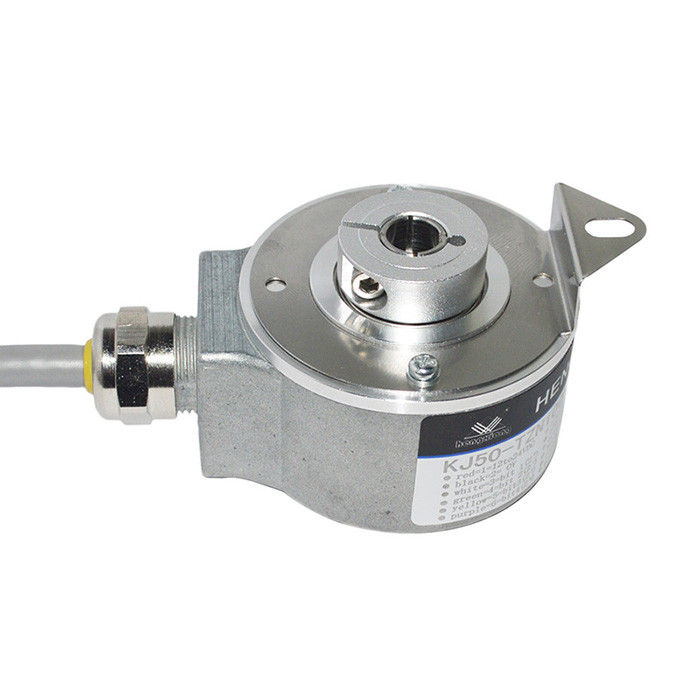

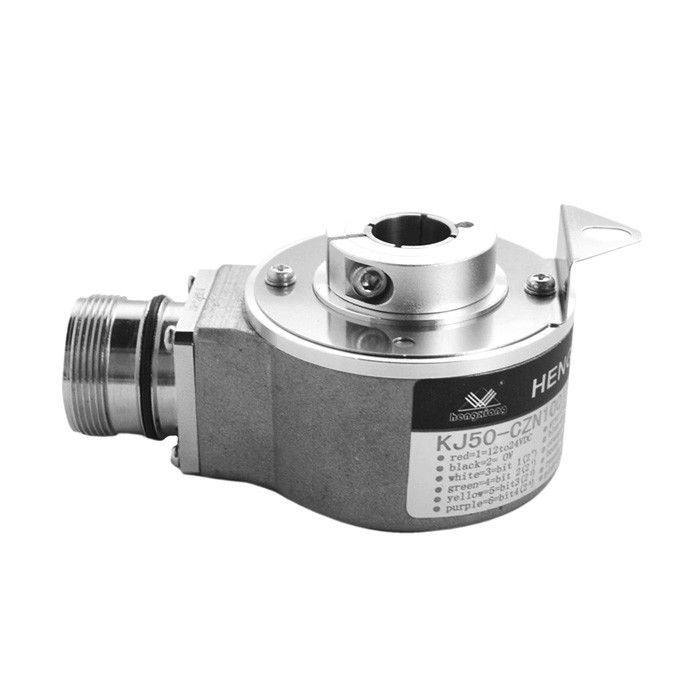

1024 Ppr 10 Bit Absolute Optical Rotary Encoder Through Hole 8mm NPN Output

1024 Ppr 10 Bit Absolute Optical Rotary Encoder Through Hole 8mm NPN Output

  • 1024 Ppr 10 Bit Absolute Optical Rotary Encoder Through Hole 8mm NPN Output
  • 1024 Ppr 10 Bit Absolute Optical Rotary Encoder Through Hole 8mm NPN Output
1024 Ppr 10 Bit Absolute Optical Rotary Encoder Through Hole 8mm NPN Output
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: KJ50 absolute encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Hollow Shaft Absolute Encoder Precision: 360/(resolution X 4)
Installation Dimension: 40mm Diameter Hollow Shaft diameter: 8mm;10mm;12mm;14mm;15mm
Shell Material: Die Cast Aluminum Cable Length: 1000mm(cable With Shielding)
Interface: NPN Output Output Code: Gray Code
High Light:

absolute digital encoder

,

miniature absolute encoder

Hollow shaft absolute encoder KJ50 rotary encoder through hole 8mm 1024ppr 10 bit absolute optical rotary encoder



KJ50 model Number to choose from:
KJ50-T5N32CB15

KJ50-T6NH64WB14

KJ50-C7 N128 CB12

KJ50-C8 N256WB10

KJ50-TE9 NH512WQ14

KJ50-TE10 N1024 CQ12

KJ50-T11 NH2048Q10

KJ50-T12 N4096 CQ8

KJ50-C5 NH32WB15



Characteristics

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
External diameter 51mm
Thickness 39mm
Installation dimension 40mm diameter
Hollow shaft type through hole or blind hole
Hollow Shaft diameter 8mm;10mm;12mm;14mm;15mm
Bit(steps) 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage DC5V ; DC8-30V
Outlet type Radial cable
Radial socket
Radial cable with plug
Count direction counterclockwise
outside control direction
clockwise
Interface NPN low level effective
NPN high level effetive
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code



1024 Ppr 10 Bit Absolute Optical Rotary Encoder Through Hole 8mm NPN Output 0

Our advantage

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Applications

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • VFFS machine
  • Stock driver
  • PMDC geared motor
  • Brushless dc motor
  • Servo motor
  • Drawing machine
  • VFD
  • Inverter
  • Variable frequency driver
  • Embroidery machine
  • Elevator
  • Printing machinery



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
