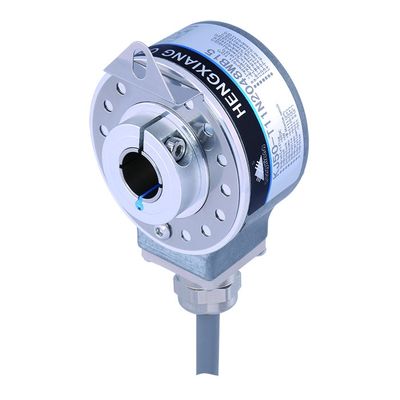

Blind Hole 15mm Hollow Shaft Absolute Encoder Gray Code Output High Precision

Blind Hole 15mm Hollow Shaft Absolute Encoder Gray Code Output High Precision

  • Blind Hole 15mm Hollow Shaft Absolute Encoder Gray Code Output High Precision
  • Blind Hole 15mm Hollow Shaft Absolute Encoder Gray Code Output High Precision
Blind Hole 15mm Hollow Shaft Absolute Encoder Gray Code Output High Precision
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: KJ50 absolute encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Hollow Shaft Absolute Encoder Precision: 360/(resolution X 4)
Installation Dimension: 40mm Diameter Hollow Shaft diameter: 8mm;10mm;12mm;14mm;15mm
Hollow Shaft Type: Through Hole Or Blind Hole Cable Length: 1000mm(cable With Shielding)
Interface: NPN Output Certification: CE,ISO9001
High Light:

mechanical absolute encoders

,

miniature absolute encoder

KJ50 hollow shaft encoder blind hole 15mm absolute rotary encoder gray code output



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Blind Hole 15mm Hollow Shaft Absolute Encoder Gray Code Output High Precision 0



Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



Parameter table for KJ50 hollow shaft absolute encoder

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
Interface NPN low level effective
  NPN high level effetive
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Output code gray code
Precision 360/(resolution x 4)
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
starting torque less than 5x 10-3N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 3000RPM ;IP65≤2000 RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°C;storage:-25 ~+90°C
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
