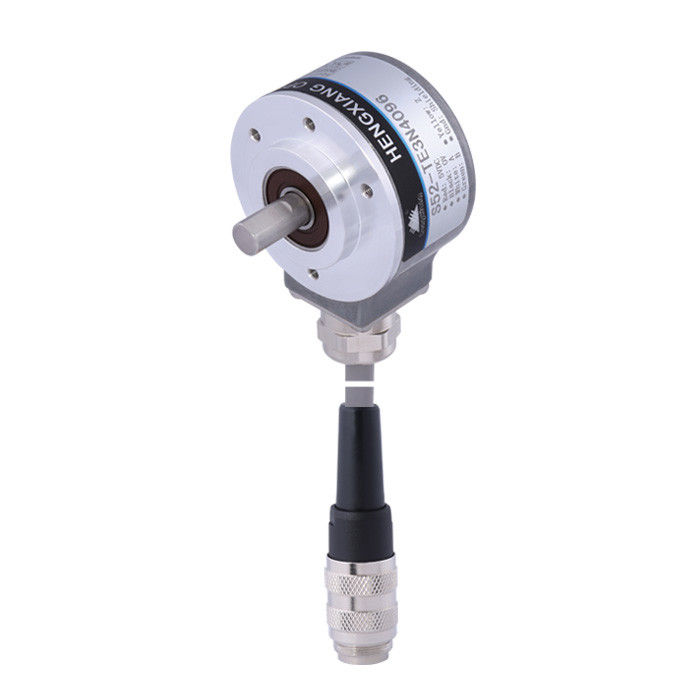

Solid Shaft Heavy Duty Encoder S52 Rotary Encoder 2048 ppr ABZUVW Phase 4 Poles IP66

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number S52 heavy duty encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Installation Dimension Diameter 40mm Product Name Heavy Duty Encoder
Top REV 3000RPM ; IP65≤2000r Rpm Output mode OC, Voltage, Push-pull, Difference Output
Shell Material Die Cast Aluminum Cable Length 1000mm(cable With Shielding)
Shaft Load Radial 50N; Axial 30N Certification CE,ISO9001
High Light

industrial rotary encoder

,

mechanical rotary encoder

Leave a Message
Product Description

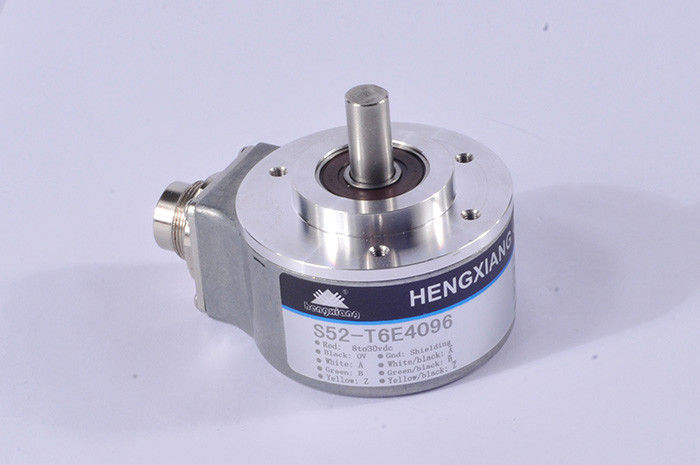

Solid shaft heavy duty encoder S52 rotary encoder ABZUVW phase 2048ppr 4 poles IP66



Simple introduction for S52 rotary encoder

Encoder type: Incremental encoder

External diameter: 51mm

Brand: HENGXIANG

Installation dimension: diameter 40mm

Solid Shaft diameter: 8mm(D shape)

Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Supply voltage: DC5V ; DC8-30V

Consumption current: 100mA MAX

Top response frequency: 300KHZ



S52 series encoder Characteristics

Items Basic parameters
Brand HENGXIANG
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
  4096;5000;5760;8192;10000;11520;16384;20000;23040
  1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
  2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
  Socket out from back
  Cable out from back with socket
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Consumption current 100mA MAX
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Certification CE



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Solid Shaft Heavy Duty Encoder S52 Rotary Encoder 2048 ppr ABZUVW Phase 4 Poles IP66 0



Production video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Applications

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Stepper motor
  • Servo motion controller
  • Gearbox
  • DC garage door motor
  • DC servo motor
  • Stock driver
  • PMDC geared motor
  • Brushless dc motor



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
