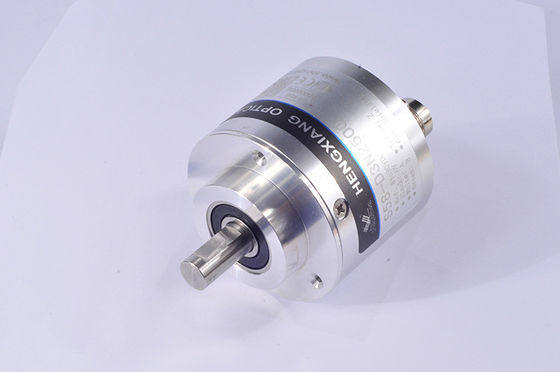

Quadrature rotary encoder S58 solid shaft encoder complementary output with alarm/sensing
Some part number for S58 series
S58-T3F8192C2
S58-Q2N4096
S58-D6C5000C5
S58-C4E2000
S58-T3N2048C6
S58-Q2F1200
S58-D1V1000
S58-C6E1024
S58-T4C200
S58-Q3V100 DC5V
S58-D2N60 DC8-30V
S58-C1F50 DC24V
S58 Characteristics
Items | Basic parameters | |
Brand | HENGXIANG | |
Solid Shaft diameter | 10mm(D shape) | |
Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600; | |
700;720;800;900;1000;1024;1200;2000;2048;2500;5000 | ||
8192;10000;11520;16384;20000;23040 | ||
Output phase | Phase A+,B+,Z+ , A- B- Z- | |
Supply voltage | DC5V ; DC8-30V | |
Outlet type | Cable out from back | |
Cable out from side | ||
Socket out from side | ||
Socket out from back | ||
Output mode | NPN Collector open circuit output | |
Voltage output | ||
Push-pull output | ||
Difference output | Long line drive (26LS31) | |
compatible RS422 | ||
Long line drive (RT7272) | ||
Top REV | 6000RPM ;IP65≤3000 RPM | |
Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) | |
Environmental temperature | Operating:-20 ~+80°;storage:-25 ~+85° | |
Environmental humidity | Operating and storage: 35-85%RH(noncondensing) | |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually | |
Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually | |
Shaft Material | Stainless steel | |
Shell Material | die cast aluminum | |
Cable length | 1000mm(cable with shielding) | |
Certification | CE | |
package | Carton box |
