Heavy duty encoder resolution up to 23040ppr S58 optical encoder voltage output IP65
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
Quick description of S58 series encoder
Bearing life: 1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft load: Radial 60N; Axial 40N
Intertia moment: less than 3x 10-6kg.m2
Shaft Material: Stainless steel
Shell Material: die cast aluminum
Package: Carton box
Solid Shaft diameter: 10mm(D shape)

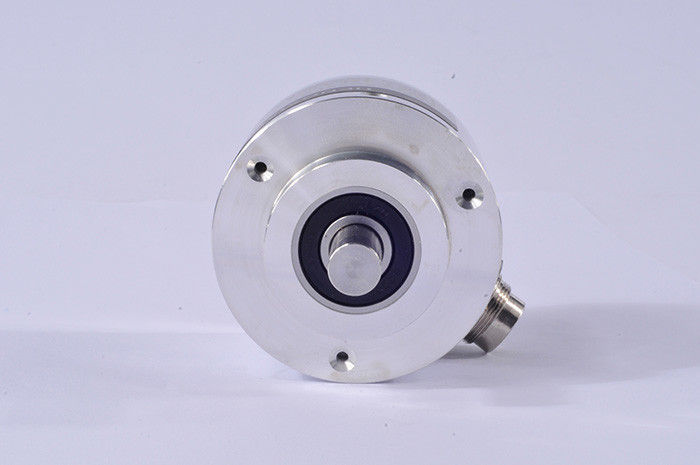

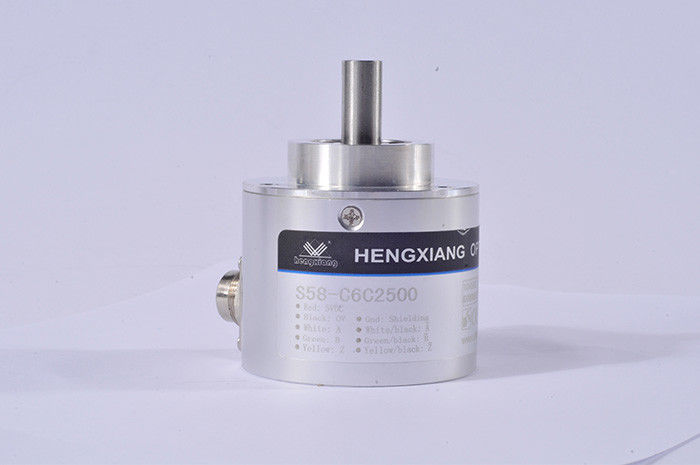

S58 rotary encoder Product introduction
|Encoder type||Incremental encoder|
|Installation dimension||diameter 48mm|
|Solid Shaft diameter||10mm(D shape)|
|Output phase||Phase A+,B+,Z+ , A- B- Z-|
|Supply voltage||DC5V ; DC8-30V|
|Outlet type||Cable out from back|
|Cable out from side|
|Socket out from side|
|Socket out from back|
|Output mode||NPN Collector open circuit output|
|Difference output||Long line drive (26LS31)|
|Long line drive (RT7272)|
|Protection grade||IP50 ; IP65|
|Cable length||1M (cable length could be added appropriately by|
|require, but it need payment individually)|
|Consumption current||100mA MAX|
|Insulation strength||AC500V 60s|
|GND||not connect to encoder|
|Mark to Space ratio||45% to 55%|
|starting torque||less than 10m N.m|
Signal Circuit of encoder
1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.
An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.
2. PNP output
The PNP output is an interface based on an output circuit with a PNP transistor.
3. Push-Pull output(HTL)
High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.
“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.
4. TTL RS-422 output
In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.
The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
