SC65F Heavy Duty Solid Shaft Encoder 15mm With Keyway 5 * 5mm Push Pull Output

SC65F Heavy Duty Solid Shaft Encoder 15mm With Keyway 5 * 5mm Push Pull Output

Products - Heavy Duty Encoder
  • High Light

    industrial rotary encoder

    ,

    mechanical rotary encoder

  • Kaywords
    Icremental Shaft Encoder
  • Solid Shaft diameter
    15mm( KEYWAY 5mm)
  • External diameter
    65mm
  • Resolution
    50PPR-23040PPR
  • Starting Torque
    Less Than 80 X 10-3 N.m
  • Intertia Moment
    Less Than 100x 10-6kg.m2
  • Consumption Current
    100mA MAX
  • Net weight
    About 590g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    SC65F incremental shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

SC65F Heavy Duty Solid Shaft Encoder 15mm With Keyway 5 * 5mm Push Pull Output

  • SC65F Heavy Duty Solid Shaft Encoder 15mm With Keyway 5 * 5mm Push Pull Output
  • SC65F Heavy Duty Solid Shaft Encoder 15mm With Keyway 5 * 5mm Push Pull Output
Get Price Contact Now

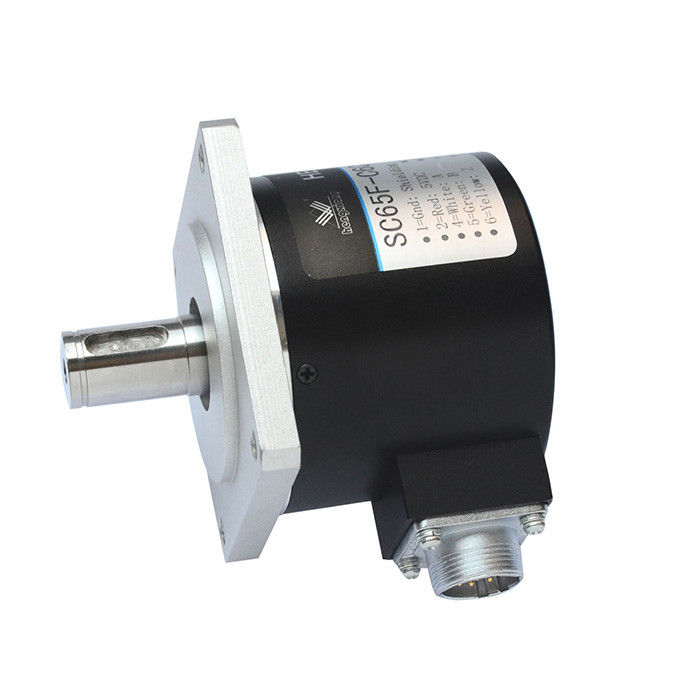

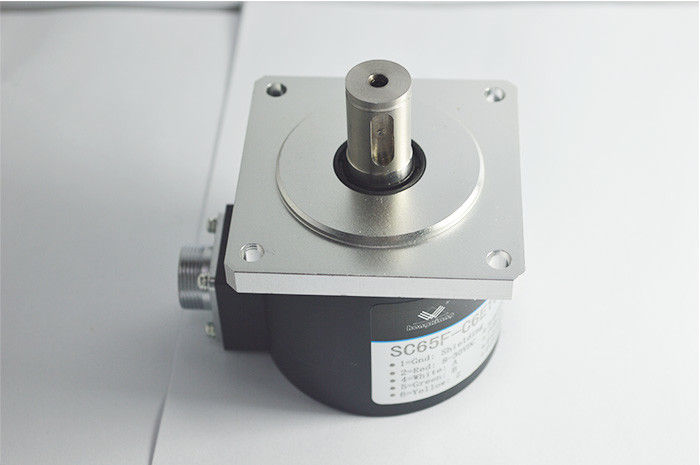

SC65F heavy duty encoder solid shaft 15mm with keyway 5*5mm Push-pull output



Encoder model number for SC65F

SC65F-T1V500

SC65F-T2F512

SC65F-C3V600

SC65F-C4C720

SC65F-T6E500

SC65F-T1V900

SC65F-C2F1000

SC65F-C3V1024

SC65F-T4E2048

SC65F-C6C2500



SC65F Series Product introduction



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 58mm
Flange dimension 68mm x 68mm
Installation dimension 56mm x 56mm
Shaft length 26mm
Solid Shaft diameter 15mm( KEYWAY 5mm)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
　 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+,A- B- Z-
Supply voltage DC5V ； DC8-30V
Outlet type Radial cable
Radial socket
　 NPN/PNP(Open Collector Output)
　 Voltage output
Output mode Push-pull output
　 line drive (26LS31) TTL
　 line drive(DC8-30V) HTL
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms



SC65F Heavy Duty Solid Shaft Encoder 15mm With Keyway 5 * 5mm Push Pull Output 0



Shipping

  • Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
  • You could select the express according to your requirements if freight collector
  • If you do not have any courier account, we will check and find a cheapest and safety express for you.
  • Our factory has 30% discount with most courier company, so price could be as cheap as possible.



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Applications

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • Disc shoe machine,
  • Textile dyeing
  • Leather machine
  • Paper equipment
  • Industrial machinery
  • Paper cutter
  • CNC machine tool
  • Automatic measurement
  • Remote control
