Heavy Duty Industrial 10000 Ppr Encoder SC65F Diameter 65mm With Flange
-
High Light
photoelectric rotary encoder
,mechanical rotary encoder
-
KaywordsIcremental Shaft Encoder
-
Solid Shaft diameter15mm( KEYWAY 5mm)
-
External diameter65mm
-
Resolution50PPR-23040PPR
-
Starting TorqueLess Than 80 X 10-3 N.m
-
Intertia MomentLess Than 100x 10-6kg.m2
-
Thickness37mm
-
Top REV3000RPM
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberSC65F incremental shaft encoder
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
Heavy Duty Industrial 10000 Ppr Encoder SC65F Diameter 65mm With Flange

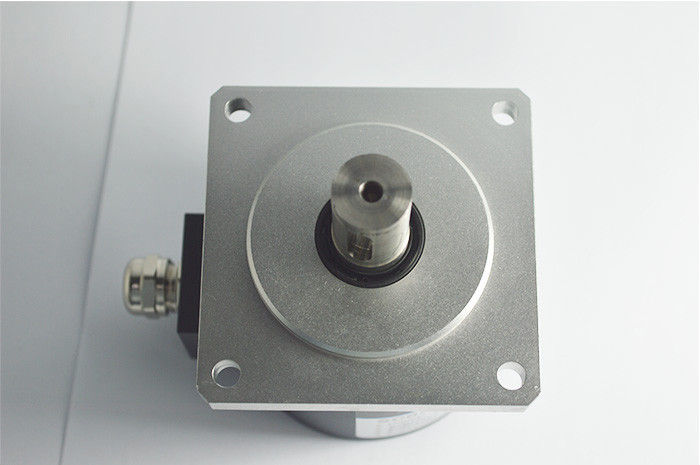

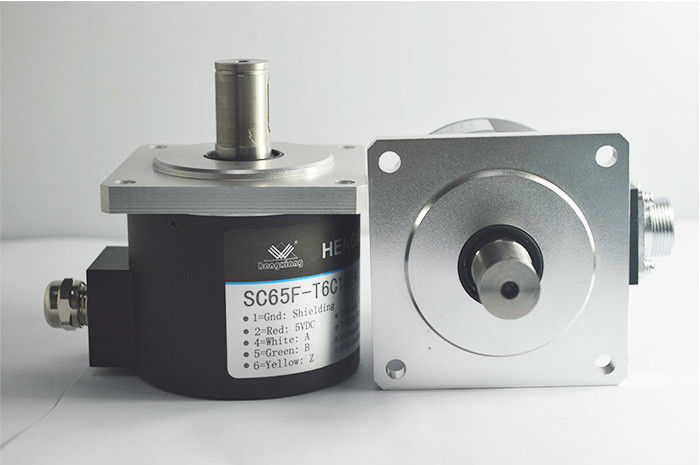

Heavy industrial encoder SC65F rotary encoder diameter 65mm 10000ppr with flange
Our Service
- Quick response once received customer’s quotation query
- Professional engineer team, to solve your problems at any time
- Strictly inspection before shipment
- Various encoder models to be selected
- Short lead time
- High quality standard
Detail Specifications for SC65F rotary encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 65mm |
| Protection grade | IP50 ; IP65 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually) | |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shaft Material | Stainless steel |
| Shell Material | die cast aluminum |
| Cable length | 1000mm(cable with shielding) |
ENCODER TECHNOLOGY THEORY
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Questions you may like to know before ordering
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
Shipment
- Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
- You could select the express according to your requirements if freight collector
- If you do not have any courier account, we will check and find a cheapest and safety express for you.
- Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Our products are sold all over the world, you can rest assured.
