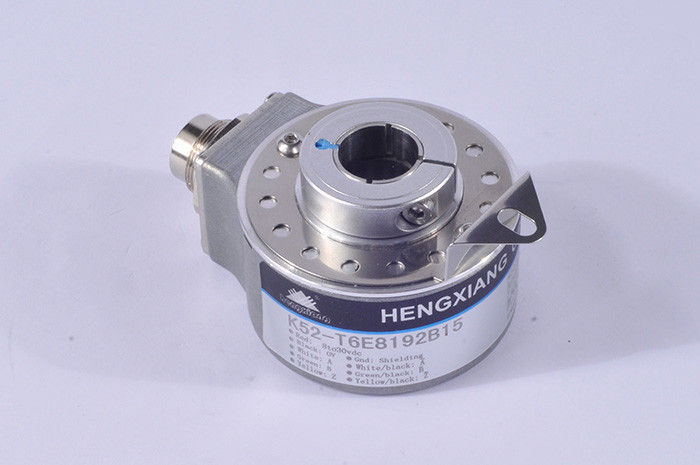

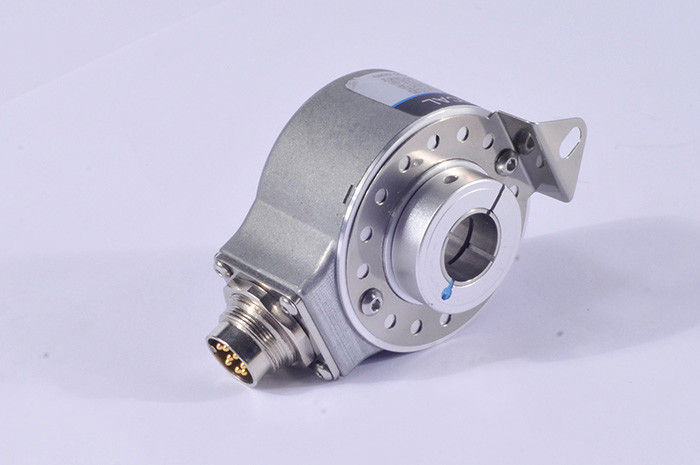

3600 Ppr Mechanical Rotary Encoder , K52 Heavy Duty Optical Shaft Encoder Blind Hole 10mm

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K52 through shaft encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Installation Dimension R27.5mm(spring Plate 50T55) Product Name Hollow Shaft Encoder
External diameter 52mm Hollow Shaft Diameter 8mm,10mm,12mm;14mm;15mm
Shaft Load Radial 50N; Axial 30N Top REV 3000RPM ;IP65≤2000r Rpm
Cable Length 1000mm(cable With Shielding) Certification CE,ISO9001
High Light

photoelectric rotary encoder

,

industrial rotary encoder

Leave a Message
Product Description

Mechanical encoder K52 heavy duty encoder blind hole 10mm 3600ppr voltage output



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



Our advantage

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Parameter table of K52 series encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 51mm
Thickness 39mm
Installation dimension R27.5mm(spring plate 50T55)
Hollow shaft type through hole or blind hole
Hollow shaft diameter 8mm,10mm,12mm;14mm;15mm
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
4096;5000;5760;8192;10000;11520;16384;20000;23040
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
Socket out from back
Cable out from back with socket
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Consumption current 100mA MAX
Top response frequency 300KHZ
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Certification CE
package Carton box
Net weight About 310g (with package)



Shipment

  • Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
  • You could select the express according to your requirements if freight collector
  • If you do not have any courier account, we will check and find a cheapest and safety express for you.
  • Our factory has 30% discount with most courier company, so price could be as cheap as possible.

3600 Ppr Mechanical Rotary Encoder , K52 Heavy Duty Optical Shaft Encoder Blind Hole 10mm 0



K52 encoder model number for reference

K52-T12C1000/4B15 DC5V

K52-T3F1024B14

K52-C3V1200B12

K52-TE12E1024/8B10 DC8-30V

K52-C6C1250B8

K52-TE3F1440Q14

K52-T2N5000Q12

K52-C1V5760Q10

K52-TE12E8192/8Q8 DC12-24

K52-T6C8192Q14

K52-C4E10000Q10

K52-TE3F16384B14

K52-T2V20000B15

K52-C1N23040B15 DC8-30V
