Electric Motor Elevator Encoder Incremental Hollow Shaft K80 Aluminum Alloy Material

Electric Motor Elevator Encoder Incremental Hollow Shaft K80 Aluminum Alloy Material

  • High Light

    high speed rotary encoder


    relative rotary encoder

  • Model
    Electric Motor Encoder
  • Encoder Type
    Incremental Encoder
  • Circuit Signal
    HTL, TTL
  • Hollow Shaft Diameter
    10.5mm, 12mm
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-
  • Motor Speed
    2000RPM ;IP65≤1500 RPM
  • Shaft Load
    Radial 50N; Axial 30N
  • Allowable Ripple
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    K80 electric motor encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

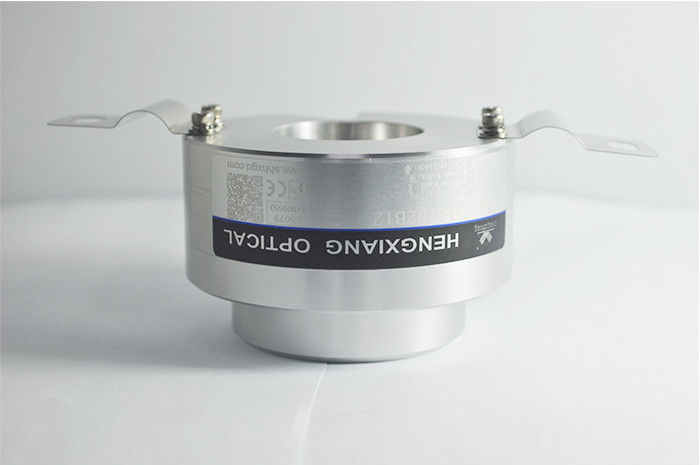

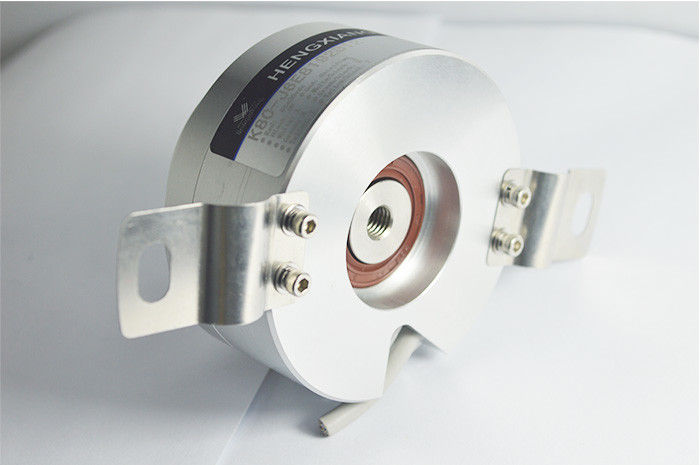

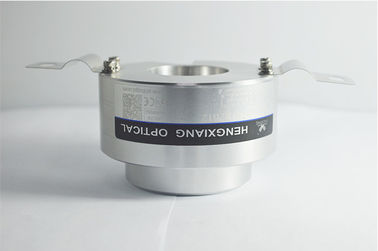

Electric Motor Elevator Encoder Incremental Hollow Shaft K80 Aluminum Alloy Material

Conventional rotary encoder K80 aluminum alloy material hollow shaft encoder for elevator


Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready


Electric Motor Elevator Encoder Incremental Hollow Shaft K80 Aluminum Alloy Material 0


Encoder model number for K80 Encoder












K80 rotary encoder Product Information

Items Basic parameters
Encoder type Incremental encoder
External diameter 80mm
Thickness 50mm
Installation dimension R60.5mm(spring plate 76T69)
Hollow shaft type through hole
Hollow shaft diameter 10.5mm; 12mm, shaft diameter can be customized.
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 20m N.m
Intertia moment less than 25x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 2000RPM ;IP65≤1500 RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure) 1000m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Protection grade IP50;IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Certification CE
package Carton box
Net weight About 600g (with package)


Technical Theory of encoder

A logic gate interprets certain input voltages as high (logic 1) or low (logic 0).

TTL (transistor-transistor-logic): A signal above 2 V is interpreted as logic 1 and a signal less than 0.8 V is interpreted as logic 0. The output voltage ranges between 0-5 V.

HTL (high-threshold-logic): A signal above 3 V is a logic 1 and a signal less than 1 V is a logic 0. The high output signal level is dependent from the supply voltage. Because of the higher voltage difference between logic 0 and 1, the HTL logic is more immune to interference and more resistant against electrical noise.


Mechanical degree is the actual rotation of the shaft in degrees. Electrical degree is used for electrical signals. The required time for completing one alternating voltage/current cycle is defined as 360 electrical degrees (el°). For incremental encoders, one cycle is equal to one complete pulse. With a given PPR the electrical degree can be converted to mechanical degree for any incremental encoder.


Every 90 el° the incremental encoder outputs a rising or falling edge on the “A” or “B” output that can be interpreted as a count. If an encoder outputs 1000 PPR, a counter can interpret 4000 counts (4 counts each pulse).


The phase angle states the length between 2 edges, given in el°. This parameter is typically specified with a defined constant phase angle value and phase angle error (also called quadrature error).
