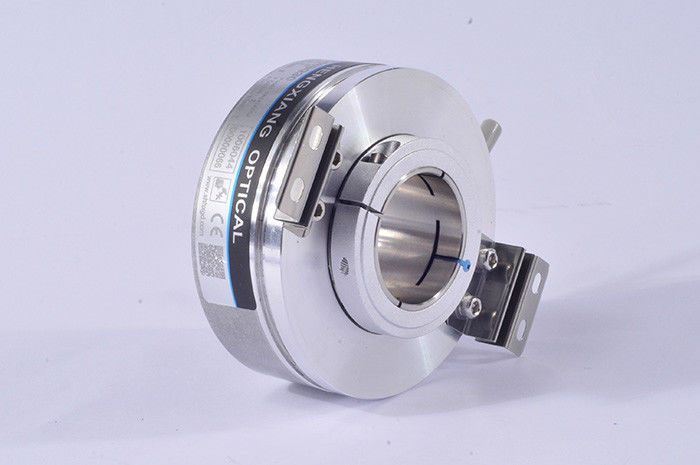

300KHZ 28800P/R K76 Rotary Shaft Position Encoder

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Encoder Type Incremental Encoder Installation Dimension R34.1mm (spring Plate 58T64)
Hollow Shaft Type Clamping Ring At Prior Or Clamping Ring At Rear Hollow Shaft Diameter 15mm, 16mm, 18mm; 20mm; 22mm
Encoder Thickness 39mm Shaft Load Radial 50N; Axial 30N
Top REV 3000RPM Bearing Life 1.5x109 Revs At Rated Load (100000hrs At 2500RPM)
Environmental Temperature Operating:-20 ~+85°;storage:-25 ~+90° Top Response Frequency 300KHZ
High Light

Rotary Shaft Position Encoder

,

28800P/R Shaft Position Encoder

,

3000RPM Rotary Encoder

Leave a Message
Product Description

28800 P/R high resolution K76 rotary encoder shaft hole 16mm differential output dc8-30v



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Product Description

Encoder type: Incremental encoder

Encoder Thickness: 39mm

Installation dimension: R34.1mm (spring plate 58T64)

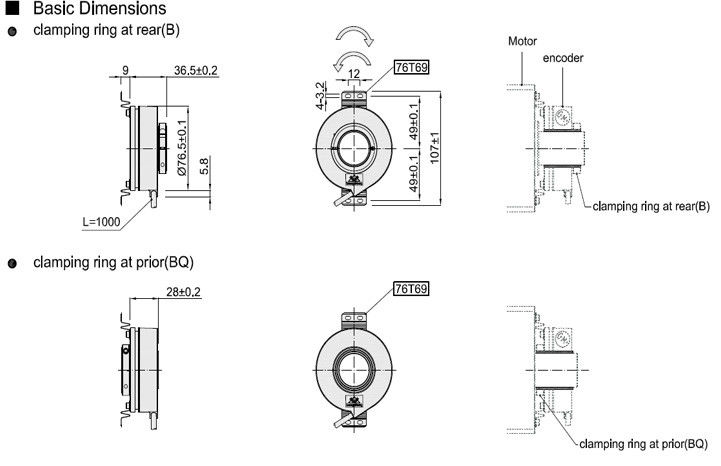

Hollow shaft type: clamping ring at prior or clamping ring at rear

Hollow shaft diameter: 15mm, 16mm, 18mm; 20mm; 22mm

Shaft load: Radial 50N; Axial 30N

Top REV: 3000RPM

Bearing life: 1.5x109 revs at rated load (100000hrs at 2500RPM)

Environmental temperature: Operating:-20 ~+85°;storage:-25 ~+90°

Top response frequency: 300KHZ



Detail Specifications

Output phase



Supply voltage



Outlet type



Output mode



Consumption current



Top response frequency



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 58mm
Thickness 24mm
Installation dimension R34.1mm(spring plate 58T64)
Hollow shaft type clamping ring at prior or clamping ring at rear
Hollow shaft diameter 15mm,16mm,18mm;20mm;22mm
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;4096;5000;
7200;14400;28800
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;
5000/4;5000/6;/5000/8
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
DC5V ; DC8-30V
Cable out from side
NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
100mA MAX
300KHZ



Our advantage

More than 20 years experienced engineers

Professional working team

High quality standard

CE certification for all models

Prompt delivery date

100% full inspection before shipment

Customers from about 200 countries

IS09001:2015 Certification



Technical Theory

An incremental encoder outputs a defined amount of pulses per revolution, so that every pulse is expected to be on a defined mechanical position. The maximum deviation between this ideal position and the actual position is called integral non linearity (INL). The INL accuracy is an important value if the incremental encoder is used for positioning tasks.



The duty cycle describes the ratio between “high” time to “low” time of an incremental encoder. Typically this ratio is 50/50, which is equivalent to 180 el° high and 180 el° low.

The performance of magnetic incremental encoders increases with higher PPR settings and higher rotation speeds (RPM). This is in contrast to optical encoders where the performance decreases. The DNL and INL accuracy that are stated in our datasheets are worst case values, a better performance can be expected for higher PPR and RPM.



Encoder Usage

Paper equipment

Industrial machinery

Paper cutter

CNC machine tool

Automatic measurement

Remote control

Servo motion controller

Gearbox

DC garage door motor

DC servo motor

Stock driver

FFS machine

VFFS machine



Our Service

1. Quick response once received customer’s quotation query

2. Professional engineer team, to solve your problems at any time

3. Strictly inspection before shipment

4. Various encoder models to be selected

5. Short lead time

6. High quality standard



FAQ

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production
