300KHZ Radial Socket K100 35mm Through Hole Encoder

300KHZ Radial Socket K100 35mm Through Hole Encoder

Products - High Resolution Rotary Encoder
  • High Light

    35mm Through Hole Encoder

    ,

    Radial Socket Through Hole Encoder

    ,

    300KHZ High Resolution Rotary Encoder

  • Environmental Temperature
    Operating:-20 ～+85°；storage:-25 ～+90°
  • External Diameter
    100mm
  • Thickness
    35mm
  • Encoder Type
    Incremental Encoder
  • Consumption Current
    100mA MAX
  • Top Response Frequency
    300KHZ
  • Allowable Ripple
    ≤3%rms
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

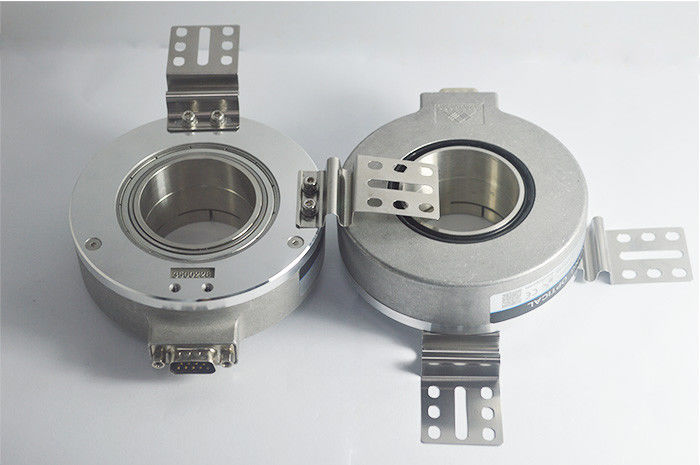

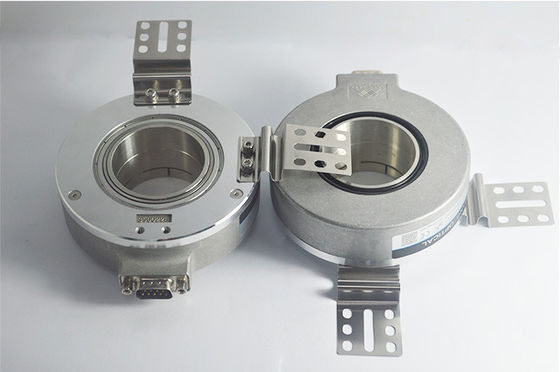

300KHZ Radial Socket K100 35mm Through Hole Encoder

  • 300KHZ Radial Socket K100 35mm Through Hole Encoder
  • 300KHZ Radial Socket K100 35mm Through Hole Encoder
Get Price Contact Now

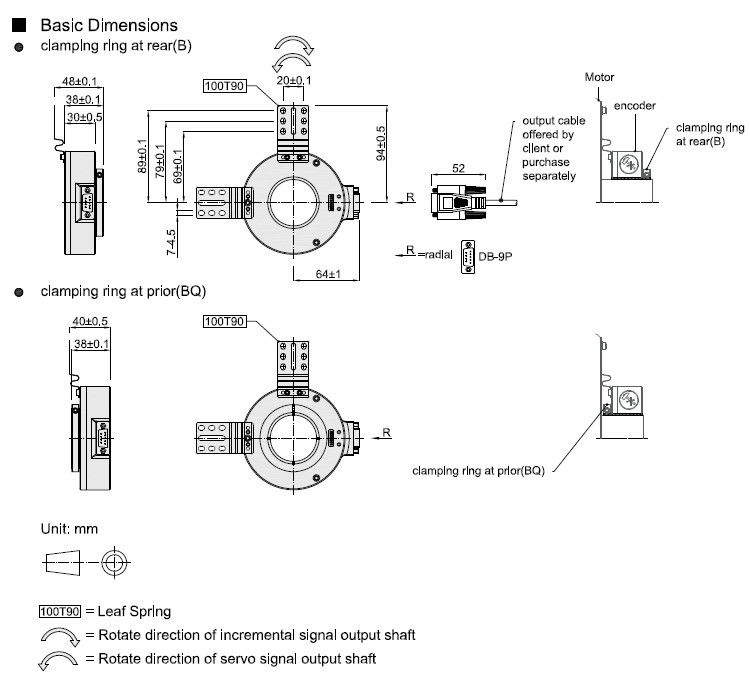

Radial socket K100 high resolution rotary encoder 40000 pulses per rotation hole 35mm



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.



Our Service

1. Quick response once received customer’s quotation query

2. Professional engineer team, to solve your problems at any time

3. Strictly inspection before shipment

4. Various encoder models to be selected

5. Short lead time

6. High quality standard



Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Some Related K100 encoder model number

K100-C3N1024B48 DC5-12V

K100-C6C2048B42 DC12V

K100-C6E5000B40 DC24V

K100-C3F512BQ45 DC5V

K100-C3N4096BQ40 DC5-12V

K100-C3F10000BQ35 DC24V

K100-C3V20000B30 DC5-24V

K100-C6E1000BQ38 DC8-30V

K100-C6C48000B40 DC5V

Our Selling points

Utility Model Patent Certificate

Own brand and unique brand

CE certification for all models

Prompt delivery date

100% full inspection before shipment

Customers from about 200 countries

IS09001:2015 Certification

Trademark Registration certificate



Encoder Parameter table

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 100mm
Thickness 38mm
Resolution 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000；11520;12000;20000;24000;40000;48000;
  2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12;
  8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16;
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Environmental temperature Operating:-20 ～+85°；storage:-25 ～+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 1960m/s2 ,11 ms three times for X,Y,Z direction individually



Application For K100 Series encoder

Disc shoe machine,

Textile dyeing

Leather machine

Paper equipment

Industrial machinery

Paper cutter

CNC machine tool

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine
