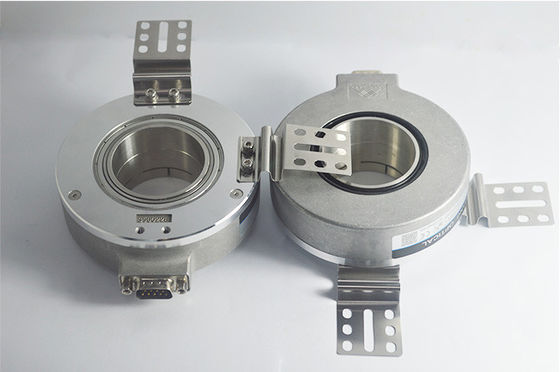

OD 100mm Shaft 42mm 12000ppr High Resolution Rotary Encoder

OD 100mm Shaft 42mm 12000ppr High Resolution Rotary Encoder

  • OD 100mm Shaft 42mm 12000ppr High Resolution Rotary Encoder
  • OD 100mm Shaft 42mm 12000ppr High Resolution Rotary Encoder
OD 100mm Shaft 42mm 12000ppr High Resolution Rotary Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: Incremental Encoder External Diameter: 100mm
Thickness: 38mm Installation Dimension: R50mm(spring Plate 100T90)
Hollow Shaft Type: Through Hole (clamping Ring At Prior And Clamping Ring At Rear) Hollow Shaft Diameter: 30mm,35mm,38mm;40mm;42mm;45mm;
Output Phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- Supply Voltage: DC5V ; DC8-30V
High Light:

12000ppr High Resolution Rotary Encoder

,

Shaft 42mm Rotary Encoder

,

Incremental Rotary Encoder

K100 external diameter 100mm shaft 42mm 12000ppr high resolution rotary encoder



About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



Encoder Usage

VFFS machine

Packing machinery

Capsule filling machine

Pharmaceutical machine

VVVF motor

Textile dyeing

Leather machine

Paper equipment

Industrial machinery

Paper cutter

CNC machine tool

Automatic measurement

Remote control



Our factory

1. Own brand of "HENGXIANG" encoder

2. Has ISO9001:2000 Quality Management System Certificate and CE Certification

3. Invention patents five and utility model patents five

4. Passed Shanghai New and High-tech Achievements Transformation Project.

5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

6. Located in Shanghai city

7. 20-30 experienced workers



Lead Time

3-5 working days for sample after full paid

7-15 days for mass production after full paid



Parameter table



Cable length



Protection grade



Cable length







Certification



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 100mm
Thickness 38mm
Installation dimension R50mm(spring plate 100T90)
Hollow shaft type through hole (clamping ring at prior and clamping ring at rear)
Hollow shaft diameter 30mm,35mm,38mm;40mm;42mm;45mm;
Resolution 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000;11520;12000;20000;24000;40000;48000;
2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12;
8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Socket out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
1000mm(cable with shielding)
IP50
1M (cable length could be added appropriately by
require, but it need payment individually)
CE



More information

If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
