Blind Hole 8mm Axial 20N 5000RPM Miniature Rotary Encoder

Blind Hole 8mm Axial 20N 5000RPM Miniature Rotary Encoder

  • Blind Hole 8mm Axial 20N 5000RPM Miniature Rotary Encoder
Blind Hole 8mm Axial 20N 5000RPM Miniature Rotary Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K35
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

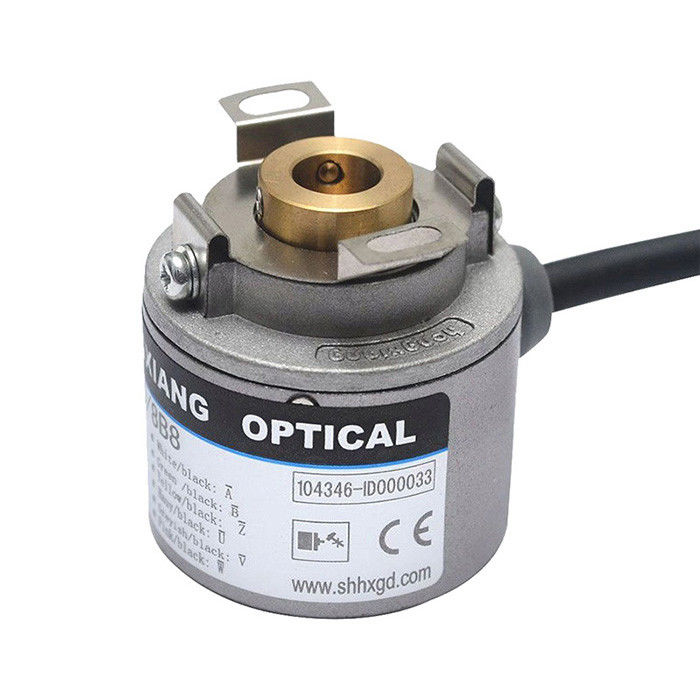

Product Name: Blind Hole 8mm External Diameter 35mm K35 Miniature Rotary Encoder 40mm Leaf Spring Top REV: 5000RPM
Mark To Space Ratio: 45% To 55% Shaft Load: Radial 30N; Axial 20N
External diameter: 35mm Thickness: 35mm
High Light:

Blind Hole 8mm Rotary Encoder

,

5000RPM Miniature Rotary Encoder

,

Axial 20N Miniature Rotary Encoder

Blind Hole 8mm 5000RPM Miniature Rotary Encoder



 Product Description






Key Features of K35 servo motor encoder

Bearing life: 1.5x109 revs at rated load(100000hrs at 2500RPM)

Environmental temperature: Operating:-20 ~+80°;storage:-25 ~+90°

Vibration(endure): Amplitude 0.75mm,5-55Hz,2 hours for three axis individually

Sock(endure): 490m/s2 ,11 ms three times for X,Y,Z direction individually

Certification: CE

Top REV: 5000RPM

Mark to Space ratio: 45% to 55%

Shaft load: Radial 30N; Axial 20N



Some Related K35 encoder model number

K35-J12C2500/8B6 DC5V spring plate 35T40

K35-J12L2000/4B8 DC5V spring plate 35T29

K35-J3N2500/16B10 DC5-12V spring plate 35T29

K35-J3F1200B6 DC12-24V spring plate 35T29

K35-J6S2500/8B8 DC5V spring plate 35T29

K35-J6C2000B10 DC5V spring plate 35T40

K35-J6E720B6 DC8-30V spring plate 35T29

K35-J12C1000/4B8 DC5V spring plate 35T40

K35-J12L2048/6B10 DC5V spring plate 35T40



 Specification



Product Name

Blind hole 8mm external diameter 35mm K35 miniature rotary encoder 40mm leaf spring

Brand

HENGXIANG

Encoder Type Incremental encoder

External dimensions

External diameter: 35mm

Thickness: 35mm

Installation dimension

40mm(spring plate 35T40); 29mm(35T29)

Hollow shaft type

blind hole

Hollow shaft diameter

6mm,8mm;10mm

Resolution

30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8

Output phase

Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Supply voltage

DC5V & DC8--30V

Outlet type

Cable out from side

Output mode

NPN/PNP(Open Collector Output)

Voltage output

Push-pull output

line drive (26LS31) TTL

line drive(DC8-30V) HTL

Protection grade

IP50

Cable length

500mm

package

Carton box

Certification CE



Blind Hole 8mm Axial 20N 5000RPM Miniature Rotary Encoder 0





Our Selling Points


  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment
  • Customers from about 200 countries
  • IS09001:2015 Certification



About Encoder Vibration




Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



About Our Factory


  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



More Information




If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
