Complementary Push Pull Solid Shaft Encoder ISO9001

Complementary Push Pull Solid Shaft Encoder ISO9001

Products - Heavy Duty Encoder
  • High Light

    Push Pull Solid Shaft Encoder

    ,

    Complementary Solid Shaft Encoder

    ,

    ISO9001 Solid Shaft Encoder

  • Product Name
    Heavy Duty Encoder Push-pull Complementary Output S58 Solid Shaft Encoder Socket At Side
  • Encoder Type
    Incremental Encoder
  • Shaft Length
    19.5mm
  • Solid Shaft diameter
    10mm(D Shape)
  • Output phase
    Phase A+,B+,Z+ , A- B- Z-
  • Supply voltage
    DC5V ; DC8-30V
  • Shaft Material
    Stainless Steel
  • Certification
    CE
  • Shell Material
    Die Cast Aluminum
  • Cable Length
    1000mm(cable With Shielding)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S58
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

Complementary Push Pull Solid Shaft Encoder ISO9001

  • Complementary Push Pull Solid Shaft Encoder ISO9001
  • Complementary Push Pull Solid Shaft Encoder ISO9001
  • Complementary Push Pull Solid Shaft Encoder ISO9001
Get Price Contact Now

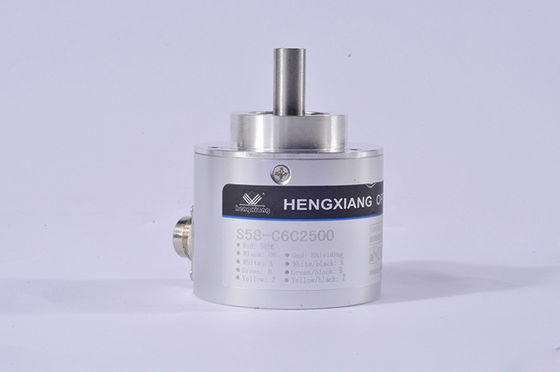

Heavy duty encoder Push-pull complementary output S58 solid shaft encoder socket at side



 Product Description

Quick description of S58 solid shaft encoder

Brand: HENGXIANG

Output phase: Phase A+,B+,Z+ , A- B- Z-

Protection grade: IP50 ; IP65

Consumption current: 100mA MAX

Top response frequency: 300KHZ

Insulation resistance: 10MΩ

External diameter: 58mm

Installation dimension: diameter 48mm

Encoder type: Incremental encoder



Why choose “HENGXIANG” encoder ?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



S58 Characteristics



Product Name

Heavy duty encoder Push-pull complementary output S58 solid shaft encoder socket at side

Brand

HENGXIANG

Shaft length

19.5mm

Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;

700;720;800;900;1000;1024;1200;2000;2048;2500;5000

8192;10000；11520；16384；20000；23040

Solid Shaft diameter

10mm(D shape)

Output phase

Phase A+,B+,Z+ , A- B- Z-

Supply voltage

DC5V ; DC8-30V

Outlet type

Cable out from back

Cable out from side

Socket out from side

Socket out from back

Solid Shaft diameter

10mm(D shape)

Resolution

1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;

4096;5000;5760;8192;10000；11520；16384；20000；23040

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;

2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8

Output mode

NPN Collector open circuit output

Voltage output

Push-pull output

Difference output

Long line drive (26LS31)

compatible RS422

Long line drive (RT7272)

TProtection grade

IP50 ; IP65

Cable length

1M (cable length could be added appropriately by require, but it need payment individually)

Consumption current

100mA MAX

Sock(endure)

490m/s2 ,11 ms three times for X,Y,Z direction individually

Shaft Material

Stainless steel

Shell Material

die cast aluminum

Cable length

1000mm(cable with shielding)

Certification

CE

package

Carton box

Complementary Push Pull Solid Shaft Encoder ISO9001 0

Complementary Push Pull Solid Shaft Encoder ISO9001 1

Packing Details



Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Advantage of “HENGXIANG” encoder factory

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment



Regarding Connecting Coupling:

There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

5. Here are some coupling part number, please carefully check before ordering.

4H4

6H6

6H8

8H8

8H10

6M6

6M8

8M8

8M10
