Product NameS58 Photoelectric Rotary Encoder Axial Socket 10000 Resolution Differential Output 10-24VDC
-
Encoder TypeIncremental Encoder
-
Output phasePhase A,B,Z Or A- B- Z-
-
Supply voltageDC5V ; DC8-30V
-
Protection gradeIP50 ; IP65
-
Consumption Current100mA MAX
-
Top Response Frequency300KHZ
-
CertificationCE
-
Allowable Ripple≤3%rms
-
Cable Length1000mm(cable With Shielding)
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberS58
-
Minimum Order Quantity1Pcs
-
PriceConsult us
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability100K pieces per year
24VDC S58 Photoelectric Rotary Encoder PNP Output 300KHZ

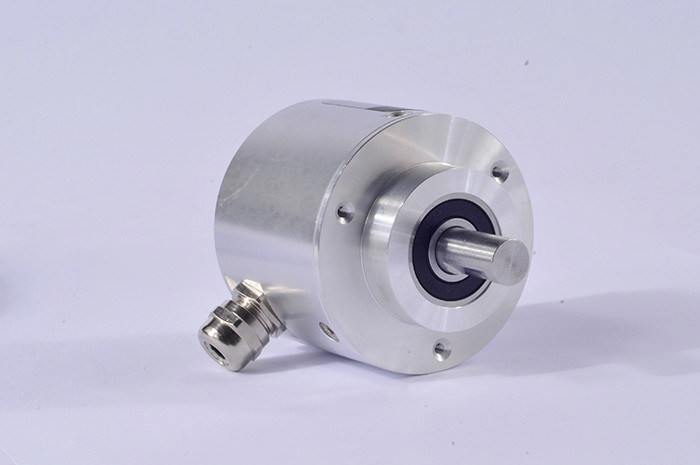

S58 photoelectric rotary encoder axial socket 10000 resolution differential output 10-24VDC
Product Description
Video of Encoder products
There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.
At the same time, you could also visit our YOUTUBY page easily.
Most of the encoder series have videos for reference.
Product Basis information of S58 series encoder
| Product Name | S58 photoelectric rotary encoder axial socket 10000 resolution differential output 10-24VDC |
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| Output phase | Phase A,B,Z or A- B- Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Cable out from back | |
| Socket out from back | |
| Output mode | NPN&PNP |
| Voltage output | |
| Push-pull output | |
| Difference output(TTL,HTL,RS422) | |
| Protection grade | IP50 ; IP65 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually) | |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| Solid Shaft diameter | 10mm(D shape) |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; | |
| 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 | |
| Certification | CE |
| Net weight | About 420g (with package) |
Notice for encoder installation
- Please read the encoder specification carefully before installation
- Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
- The power supply voltage must be holded within specified range, or encoder could be destroyed.
- Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
- Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.
- Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
- Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.
- The encoder cable signal can’t be drew or bent forcibly.
Shipment
- Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
- You could select the express according to your requirements if freight collector
- If you do not have any courier account, we will check and find a cheapest and safety express for you.
- Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Some Part number of S58 series for reference
S58-T1N23040
S58-Q2F16384
S58-D3V11520
S58-C4C10000D
S58-T6E2880
S58-D1V3600D
S58-T2F3000
S58-T3N2880D
S58-Q4C2500
S58-Q6E2048
S58-D3NH2000
S58-C4E1440D
S58-C3PH1250
