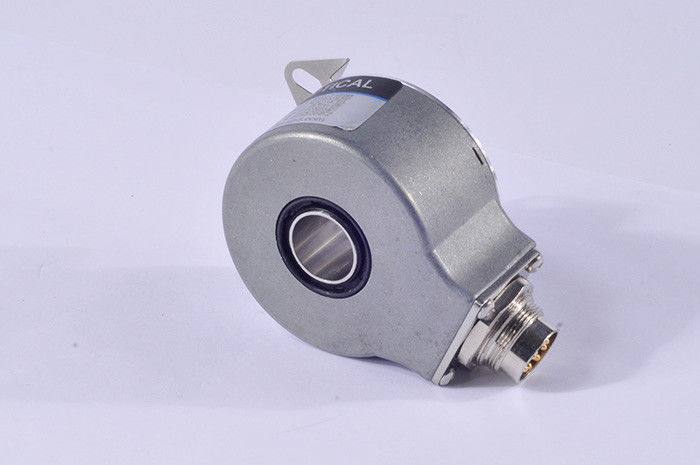

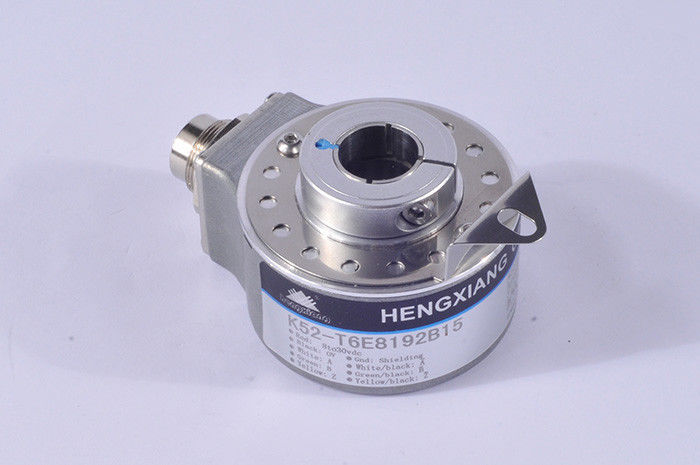

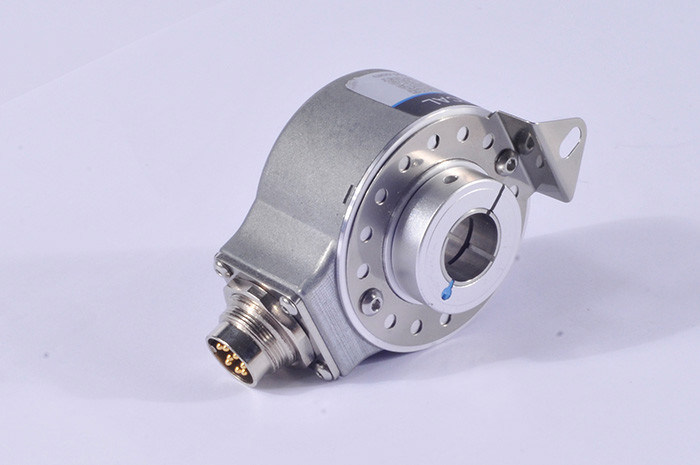

IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm

IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm

  • IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm
  • IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm
  • IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm
IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K52
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: Protection Level IP66 Industrial Encoder K52 Rotary Encoder Through Hole 14mm Encoder Type: Incremental Encoder
External diameter: 51mm Supply voltage: DC5V ; DC8-30V
Shaft Material: Stainless Steel Shell Material: Die Cast Aluminum
Cable Length: 1000mm(cable With Shielding) Protection grade: IP50 ; IP65
Output phase: Phase A+,B+,Z+,A- B- Z- Certification: CE
High Light:

SS Shaft Heavy Duty Encoder

,

K52 Rotary Encoder

,

Through Hole 14mm Rotary Encoder

Protection level IP66 industrial encoder K52 rotary encoder through hole 14mm​



 Product Description


K52 series Key Features:

Encoder type: Incremental encoder

External diameter: 51mm

Thickness: 39mm

Installation dimension: R27.5mm(spring plate 50T55)

Hollow shaft type: through hole or blind hole

Hollow shaft diameter: 8mm,10mm,12mm;14mm;15mm

Supply voltage: DC5V ; DC8-30V



Product Basis information of K52 incremental encoder



Items

Basic parameters

Brand

HENGXIANG

Encoder type

Incremental encoder

External diameter

51mm

Resolution

1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;



4096;5000;5760;8192;10000;11520;16384;20000;23040



1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;



2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8

Output phase

Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Supply voltage

DC5V ; DC8-30V

Outlet type

Cable out from back



Socket out from back



Cable out from back with socket

Output mode

NPN/PNP(Open Collector Output)



Voltage output



Push-pull output



line drive (26LS31) TTL



line drive(DC8-30V) HTL



TTL(DC5V) phase ABZ are back of phase UVW

Sock(endure)

490m/s2 ,11 ms three times for X,Y,Z direction individually

Shaft Material

Stainless steel

Shell Material

die cast aluminum

Cable length

1000mm(cable with shielding)

Protection grade

IP50 ; IP65

IP66 Heavy Duty Encoder K52 Rotary Encoder Through Hole 14mm 0

Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.







Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
