100mm Diameter Bearingless Encoder 2500ppr  With Large Hole

100mm Diameter Bearingless Encoder 2500ppr With Large Hole

  • High Light

    2500ppr Bearingless Encoder

    ,

    100mm diameter Bearingless Encoder

    ,

    2500ppr hollow shaft rotary encoder

  • Theory
    Optical Sensor
  • Output
    Analog SENSOR
  • External Diameter
    100mm
  • Hollow Shaft Diameter
    40mm-63mm
  • Resolution
    2500ppr To 10000ppr
  • Protection Grade
    IP40
  • Weight
    About 180 Grams
  • Circuit Mode
    TTL/HTL
  • Usage
    Robot, Servo Motor For Space Saver Application
  • GND
    Not Connect To Encoder
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Z100
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

100mm Diameter Bearingless Encoder 2500ppr With Large Hole

Bearingless encoder Z100 Incremental rotary encoder built in encoder with large hole


About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers





Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Reference encoder model number of Z100

Z100-J12C5000/10B46

Z100-C12E5000/16B50

Z100-J12C10000/8B52

Z100-C12E10000/10B55

Z100-J12C10000/16B60

Z100-J12E2500/8B51

Z100-C12C2500/10B52

Z100-J12C2500/16B53

Z100-C12E5000/10B54

Z100-J12C5000/16B55

Z100-C12E10000/10B61

Z100-J12C10000/16B63

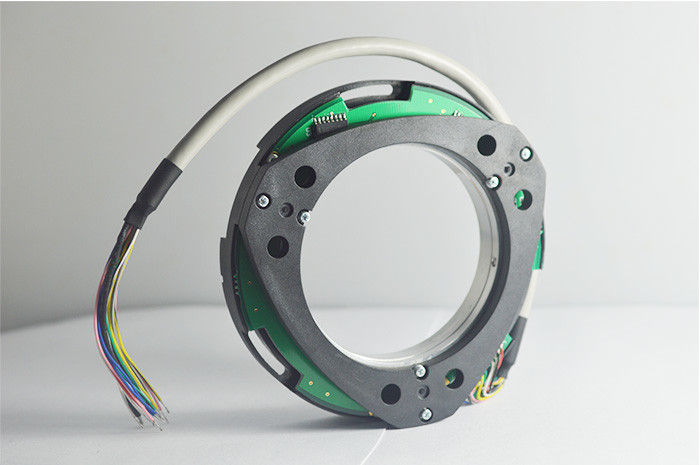

100mm Diameter Bearingless Encoder 2500ppr  With Large Hole 0

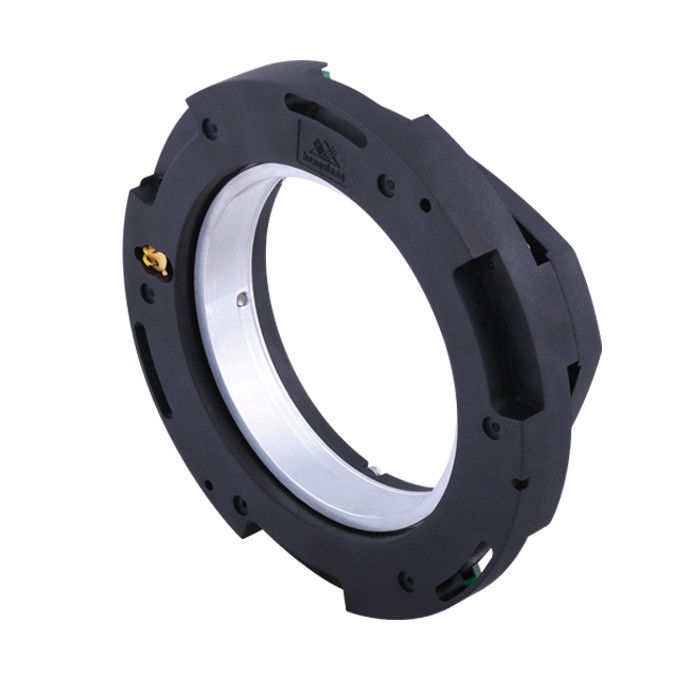

100mm Diameter Bearingless Encoder 2500ppr  With Large Hole 1



Product Description

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 100mm
Thickness 16mm
Hollow shaft type through hole
Hollow shaft diameter 40mm;63mm;65mm
Resolution 2500/8;2500/10;2500/16;5000/10;5000/16;
10000/8;10000/10;10000/16
Output phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Output mode Radial cable
Radial socket
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
rise/fall time less than 1 us(cable length:2 meters)
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE
package Carton box
Net weight About 180g (with package)

100mm Diameter Bearingless Encoder 2500ppr  With Large Hole 2



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
