24mm Diameter Incremental Rotary Bearingless Encoder DC5V

24mm Diameter Incremental Rotary Bearingless Encoder DC5V

  • 24mm Diameter  Incremental Rotary Bearingless Encoder DC5V
  • 24mm Diameter  Incremental Rotary Bearingless Encoder DC5V
  • 24mm Diameter  Incremental Rotary Bearingless Encoder DC5V
24mm Diameter  Incremental Rotary Bearingless Encoder DC5V
Product Details:
Place of Origin: Shanghai,China
Certification: CE,ISO9001
Model Number: Z58-J non-bearingencoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Keywords: Incremental Rotary Encoder Shaft Diameter: 14mm;19mm;20mm;24mm;25mm
Consumption Current: 120mA MAX Resolution: 1024ppr(Min) To 10000ppr(Max)
Optional Supply Voltage: DC5V & DC8-30V External diameter: 58mm
Thickness: 15mm Cable length: 300mm
High Light:

24mm Diameter bearingless encoder


DC5V bearingless encoder


5000RPM Incremental Rotary Encoder

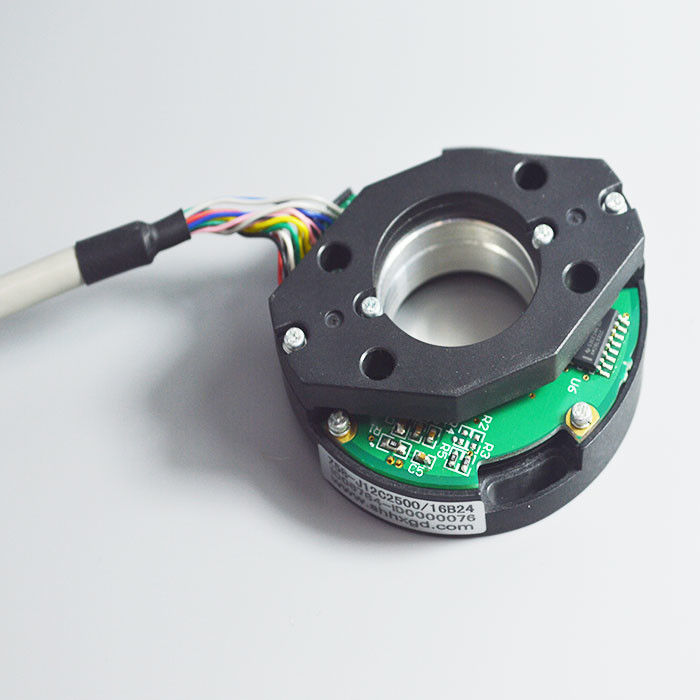

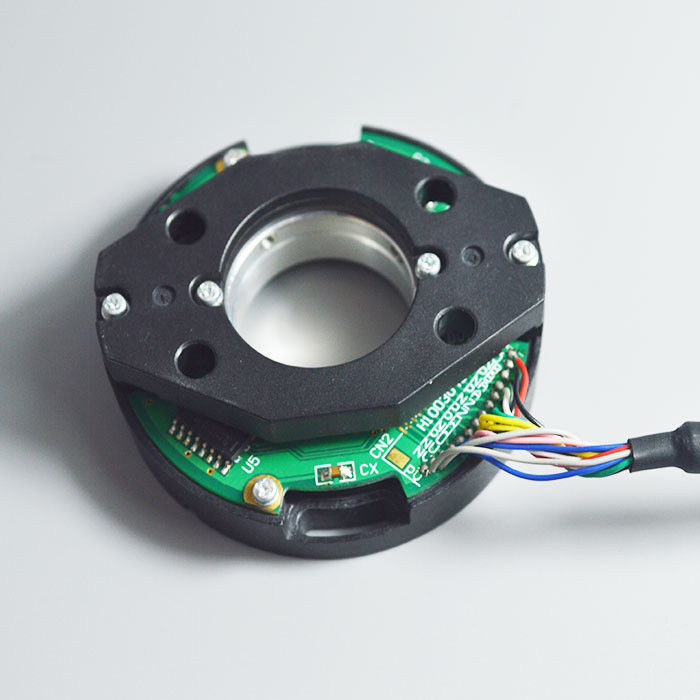

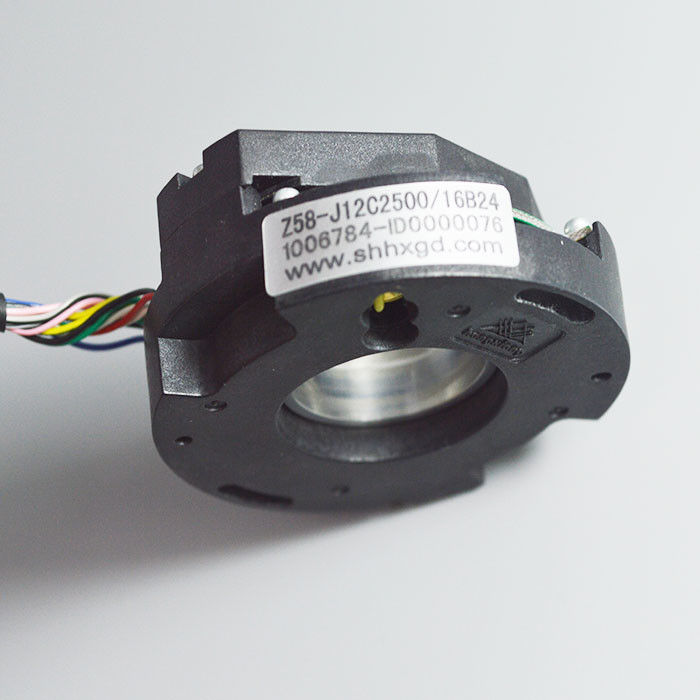

Bearingless Encoder Incremental Rotary 14-24mm Shaft Diameter CCW Direction For Robot Z58

Part Number to choose of Z58 Series encoder

Z58- J12C2500/10B18

Z58- C12E4096/10B19

Z58- J12C2500/16B20

Z58- C12E4096/16B14




Z58- C12E10000/8B16

Z58- J12C5000/8BB19

Z58- C12E5000/10B20

Z58- J12C10000/10B15

Z58- C12E5000/16B16

Z58- J12C10000/16B19


Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)


Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.


Delivery date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time


Product Basis information

Items Basic parameters
Encoder type bearingless encoder
External diameter 58mm
Thickness 15mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
Resolution 1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE
package Carton box
Net weight About 85g (with package)


24mm Diameter  Incremental Rotary Bearingless Encoder DC5V 0


More information

If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.


Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.

Contact Details
Shanghai Hengxiang Optical Electronic Co., Ltd.

Contact Person: Manager

Tel: +8615000797209

Send your inquiry directly to us (0 / 3000)


Factory Address:R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai,201600
