RS485 Hollow Shaft Absolute Encoder

RS485 Hollow Shaft Absolute Encoder

  • High Light

    RS485 Hollow Shaft Absolute Encoder


    24 Bits Hollow Shaft Absolute Encoder


    Through Hole Hollow Shaft Absolute Encoder

  • Encoder Type
    MP55 High Precision Absolute Enoder SSI RS485 BiSS-C
  • Brand
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft diameter
  • Precision
    +/- 60
  • Output Code
    BISS-C; SSI;RS485
  • Package
    Carton Box
  • Net weight
    About 100g (with Package)
  • External diameter
  • Thickness
  • Scanning Principle
    Reflective Grating Code
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    MP55 high precision absolute enoder SSI RS485 BiSS-C
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

RS485 Hollow Shaft Absolute Encoder

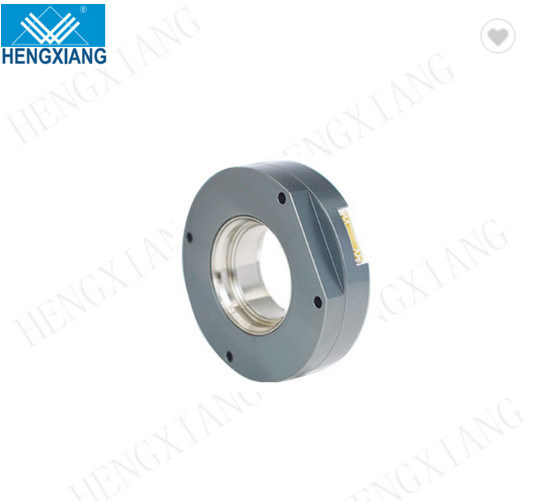

MP55 high precision absolute enoder SSI RS485 BiSS-C single-turn multi-turn max 24 bits encoder

MP55  RS485

Absolute shaft encoder, optical , RS485
Especially for food and beverage industry
Acid- and alkaline resistance
High pressure / steam cleaning
Clamping flange;
Housing: Ø 55 mm

17/24-bit Single-turn/Multi-turn;
Shaft: Ø 14-24mm

● Full-scale true multi-turn encoder composed of precision reduction gears, no battery needed, power-break memory; any position within the range is unique, even if there is interference or movement after power break, the number of turns will not be lost .
● All parameters can be set through the communication of the computer, and the zero position can be set at any position, so when installing the encoder, the equipment can stay at any position, the connecting shaft can be fixed without considering the rotation position of the encoder, and can be automatically corrected by a zeroing operation at the external lead or through RS485/SSI BiSS-C  communication.
RS485 Hollow Shaft Absolute Encoder 0

Detail Specifications

Items Basic parameters
Brand Hengxiang
Encoder type Absolute encoder
External diameter 55mm
Thickness 15mm
Hollow shaft type Through hole
Hollow shaft diameter 14mm; 15mm; 19mm; 20mm; 24mm
Resolution single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface E=SM08B-GHS-TB ;J=radial cable
Communication B=BISS-C; S=SSI
Electrical connection R=RS-485
Output mode M=multi-turn
Scanning principle Reflective grating code
Accuracy ±60"
Response speed Normal action: 6000min-1
RMS position signal noise ±2@18 bits/r
Communication clock frequency ≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time typical value: 13ms
Absolute position sampling period ≤75 ns
Allowable speed ≤32200 r/min (restricted by mechanical speed limit)
Cable Differential twisted-paired cable
Cable length 200mm-10000mm
Mechanical Connection With bearing& encircled locking shaft
Starting Torque less than 9.8×10-3 N.m
Inertial moment less than 6.5×10-6 kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed ≤6000rpm
Shell Material Aluminum
Environmental temperature Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity Operating and storage: 35~85%RH(Noncondensing)
Vibration Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock 980m/s2 11ms, three times for X,Y,Z direction individually
Protection IP50
Net weight About 100g

RS485 Hollow Shaft Absolute Encoder 1

Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)


Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.


Production date
3-5 working days for sample after full paid
7-15 days for mass production after full paid


Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.


About Hengxiang Encoder facotry
Advantage: of the first mover for encoder business in China started from 2001
2. core competitiveness is rotary encoder
3.professional production line and stuffs offering high quality products in a very short time
4.all encoder items have certification and have special team work for after sales services.
we could offer sensor encoder for you:
1. incremental encoder& absolute encoder
2. 9ppr to 80,000ppr for incremental, 5-24 bits for absolute
3. outside dia 18mm to 158mm
4.inner dia 2.5mm to 82mm
5. Minimum thickness 11.5mm
6.output circuit: NPN,PNP, push-pull, voltage, line driver, TTL,HTL,RS422,BISS-C,SSI,RS485
7.Single turn and Multi-turn

RS485 Hollow Shaft Absolute Encoder 2
