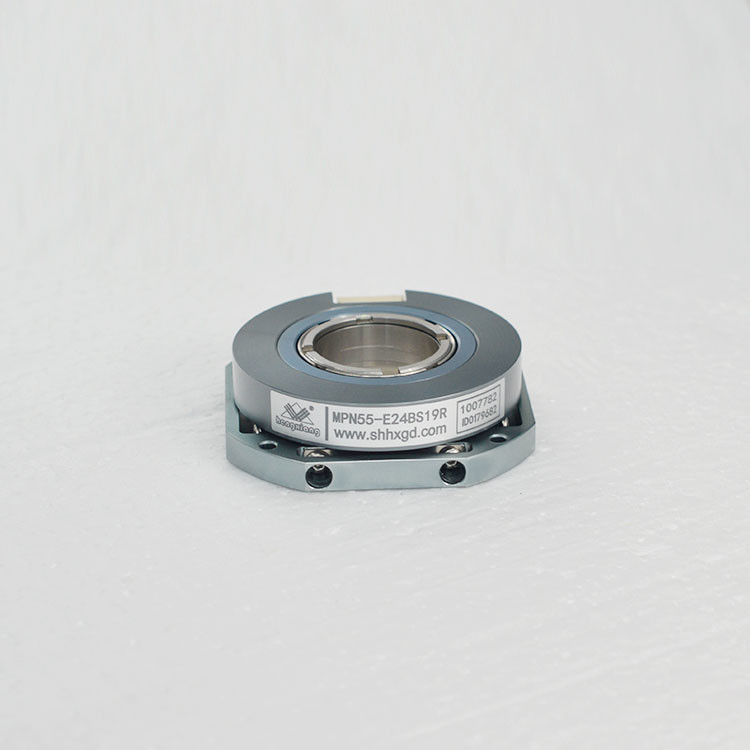

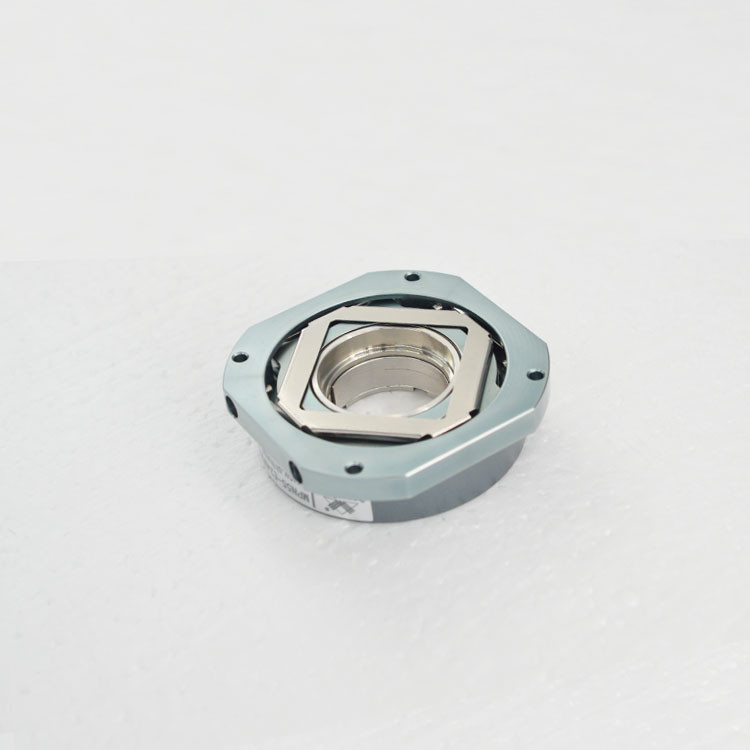

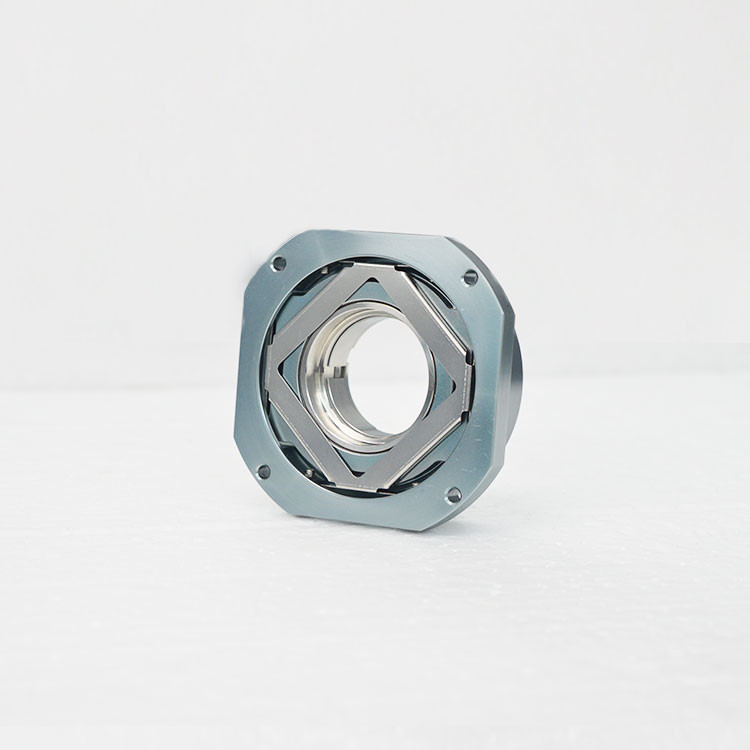

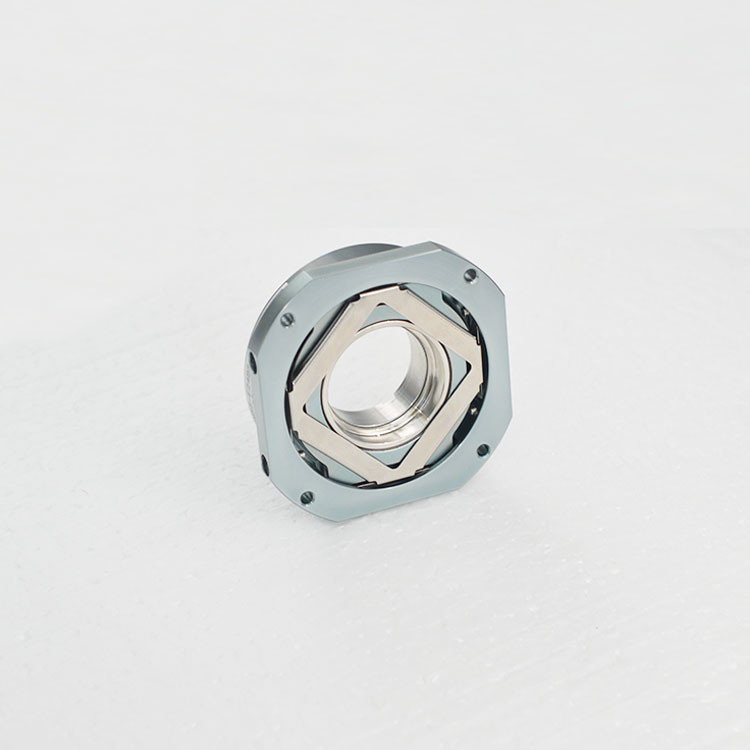

Ultra-thin mechanical flexible connection high precision 17-24 bits absolute rotary encoder SSI/BiSS-C/RS485 interface
MP55 RS485
Extra thin type absolute Position encoder,especially designed for limiting installtion spaces
Absolute shaft encoder, optical , RS485
Especially for food and beverage industry
Acid- and alkaline resistance
High pressure / steam cleaning
Clamping flange;
Housing: Ø 65 mm
17/24-bit Single-turn/Multi-turn;
Through hollow shaft up to ø24 mm
Encoder multiturn / RS485/SSI/Biss-C
Optical sensing method
Resolution: singleturn 24 bit, multiturn 24+16bit
Fieldbus protocol
Up to 4 bus users
Bus access according to master/slave principle
Maximum resistant against fields
● Full-scale true multi-turn encoder composed of precision reduction gears, no battery needed, power-break memory; any position within the range is unique, even if there is interference or movement after power break, the number of turns will not be lost .
● All parameters can be set through the communication of the computer, and the zero position can be set at any position, so when installing the encoder, the equipment can stay at any position, the connecting shaft can be fixed without considering the rotation position of the encoder, and can be automatically corrected by a zeroing operation at the external lead or through RS485/SSI BiSS-C communication.
Detail Specifications
Items | Basic parameters |
Brand | Hengxiang |
Encoder type | Absolute encoder |
External diameter | 55mm,Mounting flange 65mm |
Thickness | 15mm |
Hollow shaft type | Through hole |
Hollow shaft diameter | 14mm; 15mm; 19mm; 20mm; 24mm |
Resolution | single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit |
multi-turn: 1716=17+16Bit, 1916=19+16Bit, | |
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit | |
Interface | E=SM08B-GHS-TB ;J=radial cable |
Communication | B=BISS-C; S=SSI |
Electrical connection | R=RS-485 |
Output mode | M=multi-turn |
S=single-turn | |
Scanning principle | Reflective grating code |
Accuracy | ±80" |
Response speed | Normal action: 6000min-1 |
RMS position signal noise | ±2@18 bits/r |
Communication clock frequency | ≤10MHz(BISS) or ≤ 5MHz(SSI) |
Starting time | typical value: 13ms |
Absolute position sampling period | ≤75 ns |
Allowable speed | ≤32200 r/min (restricted by mechanical speed limit) |
Cable | Differential twisted-paired cable |
Cable length | 200mm-10000mm |
Mechanical Connection | With bearing& encircled locking shaft |
Starting Torque | less than 9.8×10-3 N.m |
Inertial moment | less than 6.5×10-6 kg.m2 |
Shaft load | Radial 30N; Axial 20N |
Slew speed | ≤6000rpm |
Shell Material | Aluminum |
Environmental temperature | Operating: -20~+95℃; Storage: -25~+100℃ |
Environmental humidity | Operating and storage: 35~85%RH(Noncondensing) |
Vibration | Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually |
Shock | 980m/s2 11ms, three times for X,Y,Z direction individually |
Protection | IP50 |
Net weight | About 150g |
