1000ppr 8mm Shaft High Resolution Rotary Encoder Push Pull E50s8-1000-3-T-24

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number 1000ppr 8mm Shaft E50s8-1000-3-t-24 high resolution rotary encoder Autonics Encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Product Name Solid Shaft Encoder Operating Temperature -40° C ~ +80° C
Current Consumption 80MA Working Temperature -40℃~60℃ Or Custom
External Diameter 38mm Protection Class Up To IP68
Thickness 28mm Output Circuit Push Pull/line Driver/voltage/NPN
Material Aluminum Alloy Shaft Diameter 6mm
High Light

8mm Shaft High Resolution Absolute Encoder

,

Push Pull High Resolution Encoder

,

Rotary High Resolution Optical Encoder

Leave a Message
Product Description

1000ppr 8mm Shaft E50s8-1000-3-t-24 high resolution rotary encoder Autonics Encoder

Key Features of S50 series rotary encoder

Sock(endure): 490m/s2 ,11 ms three times for X,Y,Z direction individually

Shaft Material: Stainless steel

Shell Material: die cast aluminum

Shaft length: 16mm

GND: not connect to encoder

Cable length: 1000mm(cable with shielding)

Package: Carton box

Solid Shaft diameter: 8mm(D shape)

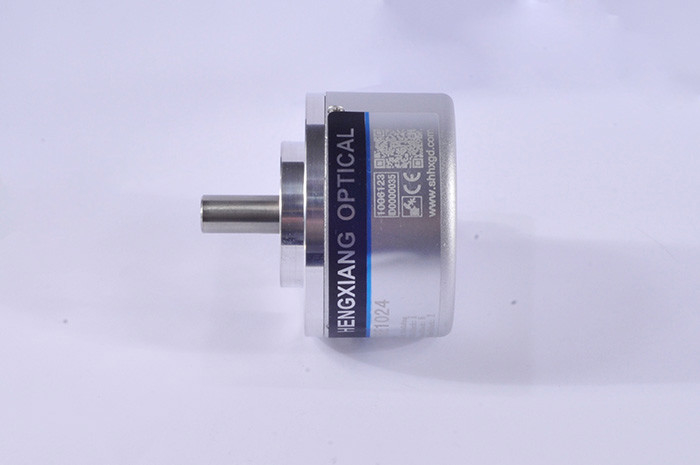

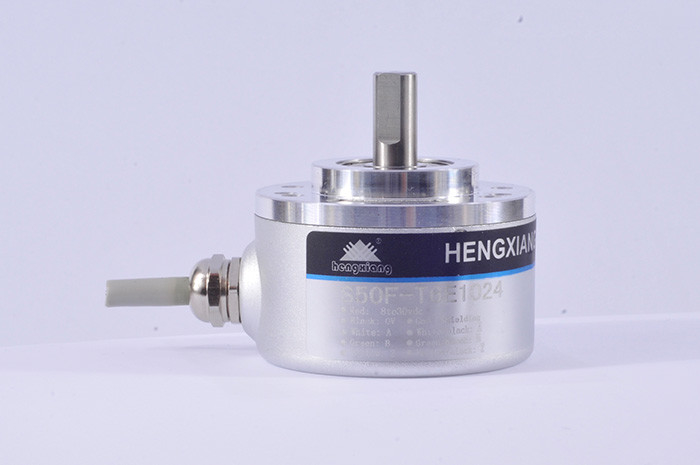

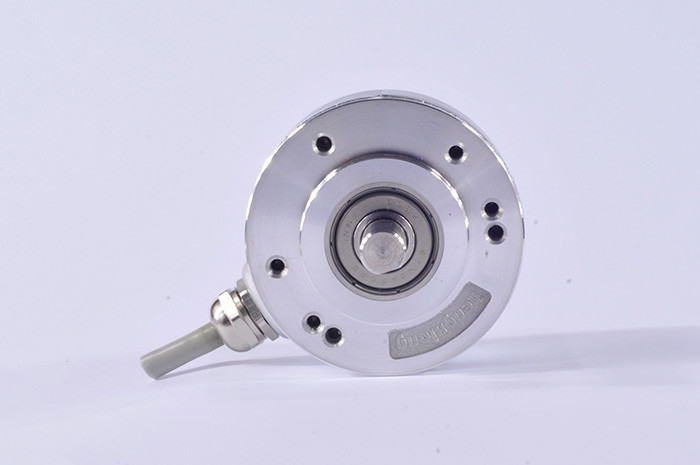

1000ppr 8mm Shaft High Resolution Rotary Encoder Push Pull E50s8-1000-3-T-24 0



Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
starting torque less than 5X10-3 N.m
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
  Socket out from back

Our Service

  • Quick response once received customer’s quotation query
  • Professional engineer team, to solve your problems at any time
  • Strictly inspection before shipment
  • Various encoder models to be selected
  • Short lead time
  • High quality standard

ENCODER TECHNOLOGY THEORY

An incremental encoder outputs a defined amount of pulses per revolution, so that every pulse is expected to be on a defined mechanical position. The maximum deviation between this ideal position and the actual position is called integral non linearity (INL). The INL accuracy is an important value if the incremental encoder is used for positioning tasks.

The duty cycle describes the ratio between “high” time to “low” time of an incremental encoder. Typically this ratio is 50/50, which is equivalent to 180 el° high and 180 el° low.

The performance of magnetic incremental encoders increases with higher PPR settings and higher rotation speeds (RPM). This is in contrast to optical encoders where the performance decreases. The DNL and INL accuracy that are stated in our datasheets are worst case values, a better performance can be expected for higher PPR and RPM.

This is the maximum frequency that the encoder is able to output via the output lines.

For example, the frequency of a 1024 PPR encoder that rotates at 600 RPM is 200 Hz (200*1024/60s).



S50 ordering encoder model number

S50-D3F50 DC8V

S50-D3P60 DC8V

S50-Q2N100 DC12V

S50-Q2F200 DC24V

S50-D1N250 DC8-30V

S50-Q1F256 DC5-30V

S50-D3N300 DC5-30V

S50-T3V360 DC12V

S50-T6E1024 DC8-24V

S50-T6C2048 DC5V

S50-D3NH4096 DC24V

S50-T3FH500DC12V

S50-T4C8192 DC24V

S50-D4E10000 DC8-30V

S50-Q3PH16384 DC5-12V

S50-Q6E2000 DC12-24V

S50-D6C23040 DC5V

S50-D3P20000 DC5V

S50-D3PH2500 DC12V

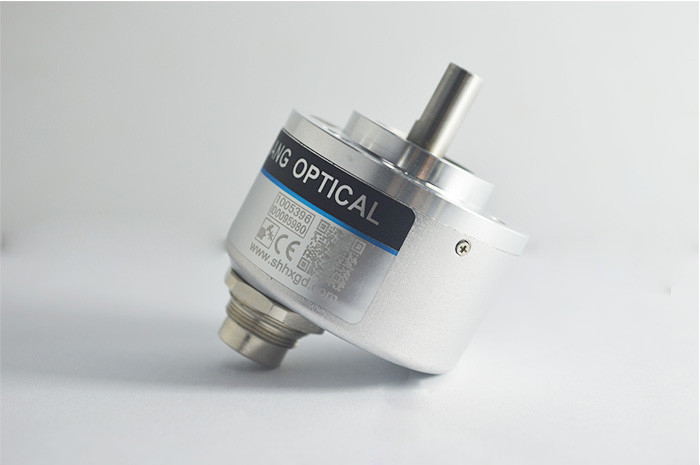

1000ppr 8mm Shaft High Resolution Rotary Encoder Push Pull E50s8-1000-3-T-24 1
