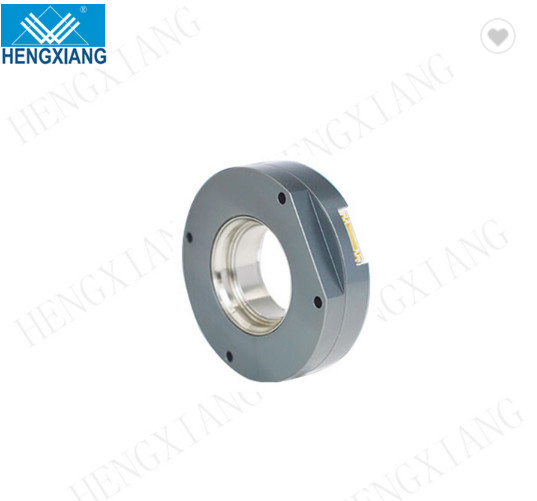

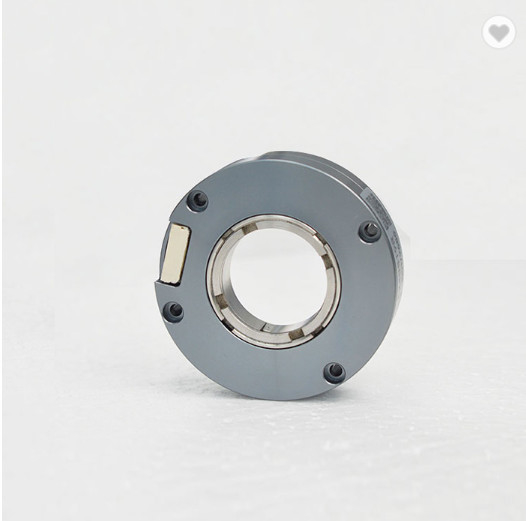

    MP55 Absolute Rotary Encoder

    ,

    Multi Turn Incremental Rotary Encoder

    ,

    17 Bit Through Hole Encoder

  • Brand
    HENGXIANG
  • Encoder Type
    Absolute Encoder
  • External diameter
    55mm
  • Installation Dimension
    49.2mm
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    14mm; 15mm; 19mm; 20mm; 24mm
  • Resolution
    Single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit;multi-turn: 1716=17+16Bit, 1916=19+16Bit,2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
  • Interface
    E=SM08B-GHS-TB
  • Communication
    B=BISS-C; S=SSI
  • Electrical Connection
    Radial Socket
  • Output mode
    M=multi-turn;S=single-turn
  • Protection
    IP50
  • Weight
    About 90g
  • Shell Material
    Aluminum
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    MP55
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C

  • Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C
  • Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C
Get Price Contact Now

Industrial Absolute Rotary Encoder MP55 interface RS485 17-24 bit single turn and multi turn SSI BiSS-C position encoder





Quick Details
Model Number:
MP55 Absolute encoder
Type:
ABSOLUTE ENCODER
Place of Origin:
SHANGHAI
Brand Name:
HENGXIANG
Usage:
Speed Sensor
Theory:
Optical sensor
Output:
RS-485
Description:
MP55 Absolute encoder
Brand:
HENGXIANG
Encoder type:
Absolute encoder
External diameter:
55mm
Thickness:
15mm
Hollow shaft type:
Through shaft
Hollow shaft diameter:
14mm; 15mm; 19mm; 20mm; 24mm
Resolution:
single-turn;multi-turn
Single-turn:
17Bit, 19Bit,20Bit, 22Bit, 24Bit
Multi-turn:
1716=17+16Bit--------2416=24+16Bit
Accuracy:
±60"
Supply Ability
Supply Ability
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Carton box for
Port
Shanghai

Product Description
Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C 0

  •

  • Why choose us?

--HENGXIANG brand--The trustworthy partner
--CE approved--advantaged product quality;
--Fast delivery--strong stock product ability;
--Factory directly provide a competitive price;
--One-stop service--for your efficient purchasing experience;
--OEM design accepted--customized design, your own brand accepted
Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C 1
Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C 2
Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C 3
Multi Turn Industrial Absolute Rotary Encoder MP55 Interface 17 Bit SSI BiSS-C 4



PN58 Series Rotary encoder Parameters
Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder
External diameter
55mm
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB ；J=radial cable
Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode
M=multi-turn
S=single-turn
Scanning principle
Reflective grating code
Accuracy
±60"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 30N; Axial 20N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 100g
Product Usage
