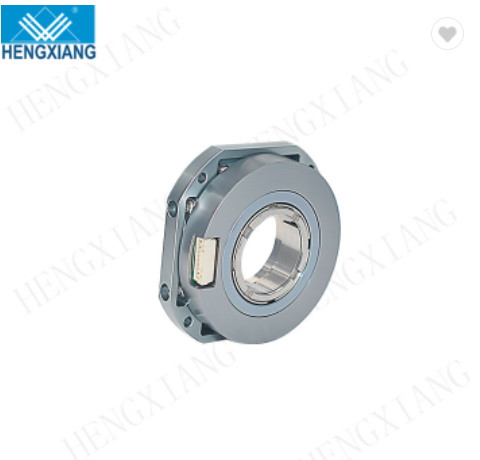

MPN55 Multi Turn Hollow Shaft Absolute Encoder Parallel 24 Bits

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number MPN55
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Brand Hengxiang Encoder Type Absolute Encoder
External Diameter 55mm(Mounting Flange 65mm) Hollow Shaft Type Through Hole
Hollow Shaft Diameter 14mm; 15mm; 19mm; 20mm; 24mm Thickness 15mm
Resolution Single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit; Multi-turn: 1716=17+16Bit, 1916=19+16Bit,2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit Interface E=SM08B-GHS-TB ;J=radial Cable
Communication B=BISS-C; S=SSI Electrical Connection R=RS-485
Output Mode M=multi-turn; S=single-turn Protection IP50
Net Weight About 150g Allowable Speed ≤32200 R/min (restricted By Mechanical Speed Limit)
High Light

Multi Turn Hollow Shaft Rotary Encoder

,

Parallel Incremental Shaft Encoder

,

23 Bits Absolute Incremental Encoder

Leave a Message
Product Description

absolute patallel encoder micr encoder MPN55 single-turn multi-turn 24 Bits Absolute encoder



★Overview
Quick Details
Model Number:
Absolute type
Type:
ABSOLUTE ENCODER
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Usage:
Optical encoder
Theory:
Optical encoder
Output:
Other
Description:
MPN55 encoder
Brand:
HENGXIANG
Encoder type:
Absolute encoder
External diameter/Thickness:
55mm/15mm
Hollow shaft type:
Though hole
Hollow shaft diameter:
14/15/19/20/24mm
Resolution:
single-turn:17-24Bits;multi-turn: 1716-2416bits
Electrical connection:
Radial socket/cable
Protection:
IP50
Net weight:
About 150g
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
package for MPN55
Port
Shanghai
Video Description
00:00

00:45

Product Description
MPN55 Multi Turn Hollow Shaft Absolute Encoder Parallel 24 Bits 0
  •

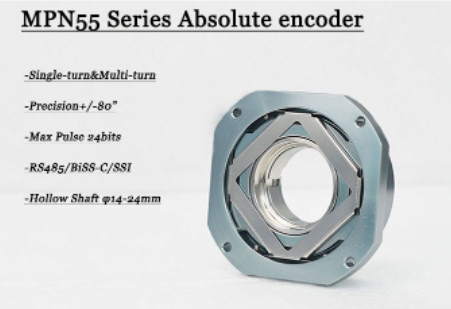

  • About MPN55 absolute encoder


-- RS485/SSI/Biss-C signal
--Single-turn and multi-turn
--Extra thin 15mm
--Machanical flexible connection design
--Especially designed for limiting installtion spaces
-Clamping flange;
Housing: Ø 65 mm
--17/24-bit Single-turn/Multi-turn;
--Through hollow shaft up to ø24 mm
Encoder multiturn / RS485/SSI/Biss-C
-Resolution: singleturn 24 bit, multiturn 24+16bit
MPN55 Multi Turn Hollow Shaft Absolute Encoder Parallel 24 Bits 1
MPN55 Multi Turn Hollow Shaft Absolute Encoder Parallel 24 Bits 2
MPN55 Multi Turn Hollow Shaft Absolute Encoder Parallel 24 Bits 3
MPN55 Multi Turn Hollow Shaft Absolute Encoder Parallel 24 Bits 4



MPN55 Series Rotary encoder Parameters
Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder
External diameter
55mm(Mounting flange 65mm)
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB ;J=radial cable
Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode
M=multi-turn
S=single-turn
Scanning principle
Reflective grating code
Accuracy
±80"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 30N; Axial 20N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 150g
