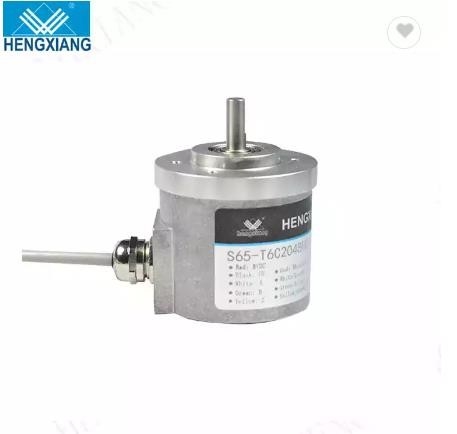

Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output

Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output

  • High Light

    Incremental Encoder Flange

    ,

    Heavy Duty Aluminum Optical Encoder

    ,

    Optical Solid Shaft Incremental Encoder

  • Encoder Type
    Incremental Encoder
  • External diameter
    65mm
  • Installation Dimension
    Diameter 48mm
  • Shaft Length
    20mm
  • Solid Shaft diameter
    8mm(D Shape)
  • Resolution
    9-23040 Ppr
  • Output phase
    Phase A+,B+,Z+ ,A- B- Z-
  • Outlettype
    Radial Cable/socket
  • Output mode
    NPN/Voltage/Push-pull/TTL/HTL
  • Protection grade
    IP50 ; IP65
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S65
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output

Hengxiang encoder position rotary solid shaft 1024/2048 ppr difference output



1. Feature: IP65 Sturdy and durable, various circuit mode and cable connection avalible, easy to install.



2. Application: Auotomation control like motor, CNC, textile machine, industry asembly line.



3. Important parameters: IP65, IP50 high protection, resolution up to 23040ppr, UVW signal pole encoder, differential output, push-pull, open collect circuit.



Basic parameters:

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 53mm
Installation dimension diameter 48mm
Shaft length 20mm
Solid Shaft diameter 8mm(D shape)
Resolution 9;20;30;50;60;100;200;250;256;300;360;400;450;500;512;600;720;900
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ ,A- B- Z-
Supply voltage DC5V ; DC8~30V
Outlettype radial cable

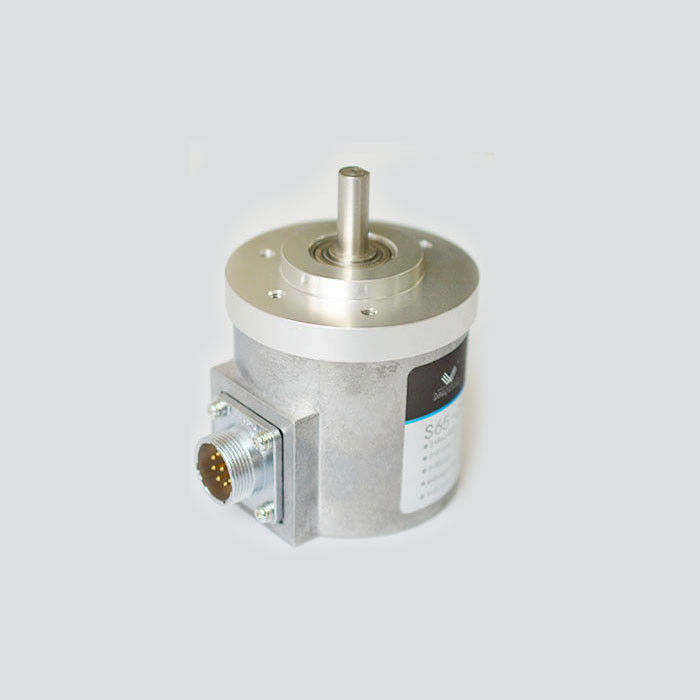

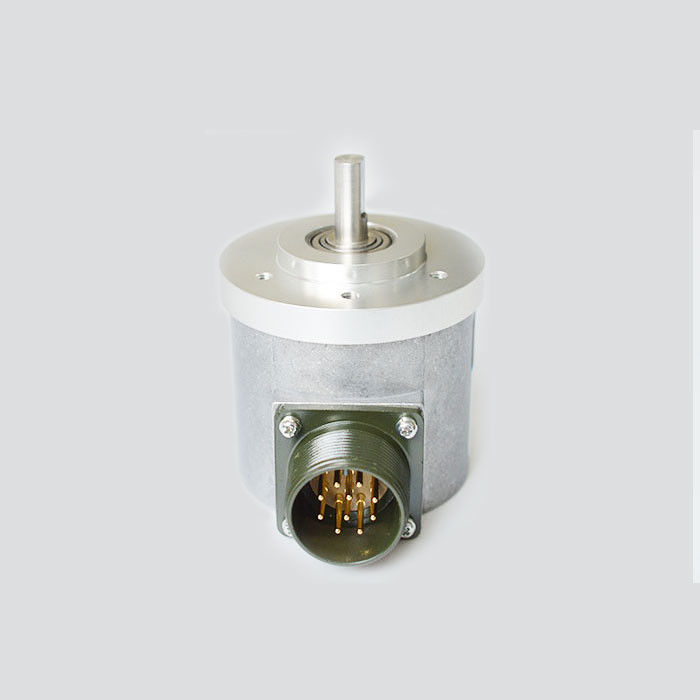

radial socket
Output mode Collector open circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frenquency 100KHZ
Allowable ripple Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 0
≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5x 10-3 N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM ;IP65≤3000r rpm
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE
package Carton box
Net weight About 350g (with package)
Products Description
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 1Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 2



Model Selection Guide
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 3



Manufacturing Dimensions
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 4
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 5

Product packaging
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 6
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 7
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 8
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 9
Product Usage
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 10
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 11
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 12
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 13
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 14
Customers' Feedback
Hengxiang encoder position rotary Solid Shaft 1024/2048 ppr difference output 15
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
