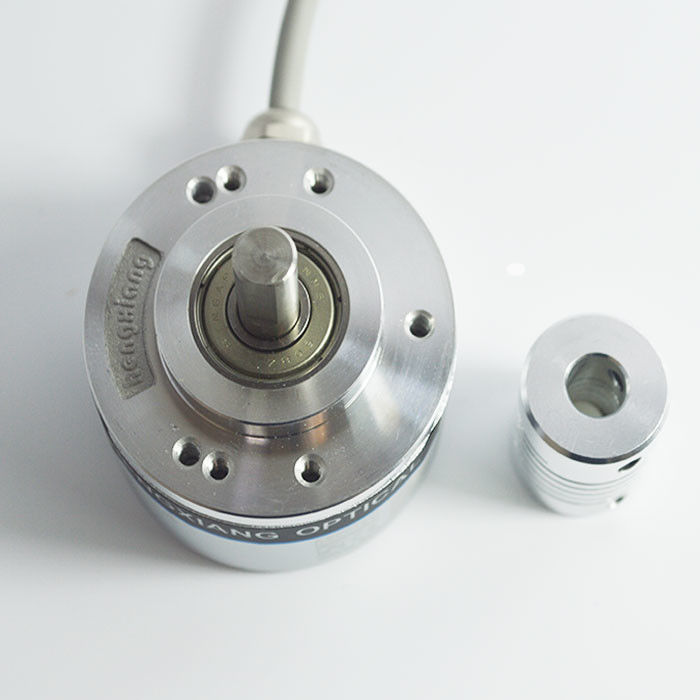

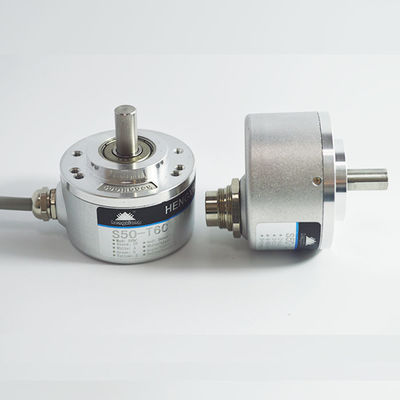

Solid shaft optical rotary encoder S50 encoder 720ppr voltage output axial cable
Our Selling points
Encoder type:Incremental encoder
Shaft length: 16mm
Solid Shaft diameter: 8mm (D shape)
Environmental humanity: Operating and storage: 35~85%RH (non-condensing)
Protection grade: IP50; IP65
Top response frequency: 300KHZ
Shaft Material: Stainless steel
Package: Carton box
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
|Encoder type||Incremental encoder|
|Output phase||Phase A+,B+,Z+ A- B- Z-|
|Supply voltage||DC5V ; DC8-30V|
|Outlet type||Cable out from side|
|Cable out from back|
|Socket out from back|
|starting torque||less than 5X10-3 N.m|
|Intertia moment||less than 3x 10-6kg.m2|
|Shaft load||Radiel 40N; Axial 20N|
|Top REV||5000RPM ;IP65≤3000r rpm|
RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Matters needing attention
1. Please read the encoder specification carefully before installation
2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
3. The power supply voltage must be holded within specified range, or encoder could be destroyed.
4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.
6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.
8. The encoder cable signal can’t be drew or bent forcibly.
