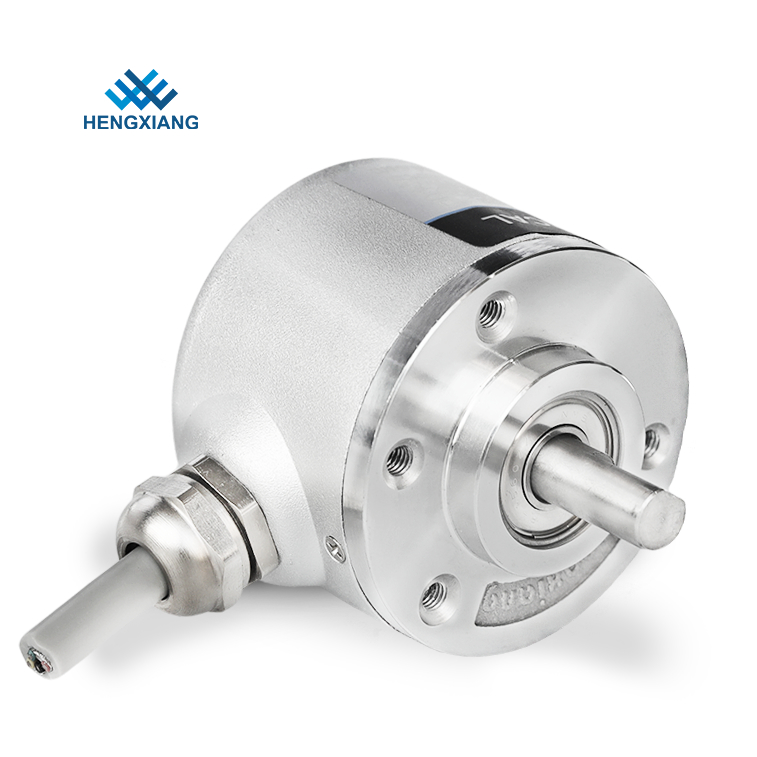

S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65

S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65

Products - Optical Rotary Encoders
  • High Light

    Servo Motor Rotary Incremental Encoders

    ,

    Robot Incremental Optical Encoders

    ,

    6mm Rotary Shaft Encoder

  • Encoder Type
    Solid Shaft Incremental Encoder
  • External diameter
    38mm
  • Thickness
    28mm
  • Solid Shaft diameter
    6mm(D Shape)
  • Resolution
    50-16384 Ppr
  • Output phase
    Phase ±A,B,Z
  • Protection grade
    IP65
  • Net weight
    About 120g (with Package)
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S38
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65

  • S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65
  • S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65
  • S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65
  • S38 6mm Shaft Incremental Optical Rotary Encoders Servo Motor Robot 2048ppr IP65
Get Price Contact Now

S38 incremental encoders servo motor Robot 2048ppr 6mm shaft IP65



1. Quick instructions

Shaft length 13mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn: 50ppr to 16384ppr

Solid shaft 6mm with D shape

Protection level grade IP50 or IP65



2. Applications

S38 series encoder can be used on all kinds of applications, when you need a controller to measure speed or length, then a encoder could be worked on your device, no matter what size you need, and what precision it requested, the encoder could always be a proper tool for you.



3. Some Related S38 encoder model number

S38-T6E600 DC12V

S38-T6E720 DC8-30V

S38-T4E720 DC8V

S38-T6E1024 DC30V

S38-T6E2500 DC24V

S38-T6E5000 DC8-30V

S38-T6E10000 DC10V

S38-T4E1200 DC12V

S38-T6C720 DC5V

S38-T6C1024 DC5V

S38-T3N1024 DC5-30V

S38-T6E512 DC12V



4. Specifications



ITEM PARAMTERS
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Solid Shaft diameter 6mm(D shape)
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;5000；8192；10000；16384
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Output phase Phase A,B,Z,A-,B-,Z-
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE
