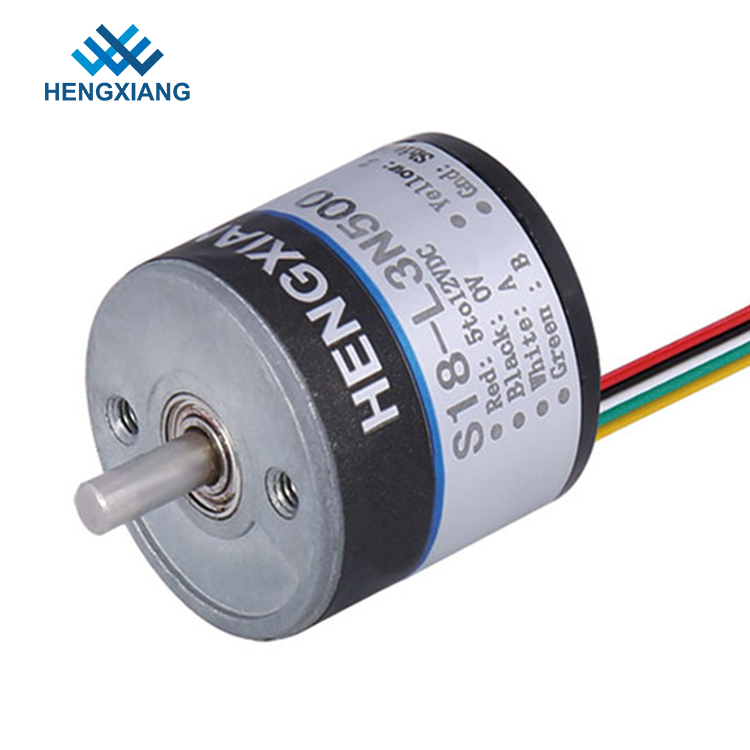

Miniature Optical Rotary Encoder 200 Resolution For Subminiature Motor

Miniature Optical Rotary Encoder 200 Resolution For Subminiature Motor

  • Miniature Optical Rotary Encoder 200 Resolution For Subminiature Motor
Miniature Optical Rotary Encoder 200 Resolution For Subminiature Motor
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S18-L Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: each piece will be packed by one single carton box, safety package before shipment
Delivery Time: 1-3 working days for sample, 7 -10 days for mass production
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 100K pieces per month
Contact Now
Detailed Product Description
Brand: HENGXIANG Shaft Diameter: 2.5mm
Thickness: 18mm Resolution: 36ppr(Min) To 1600ppr(Max)
Grade Of Protection: IP50 Optional Supply Voltage: DC5V & DC8-30V
Output Mode: Open Collector Outlet Type: Wire Out From Side & Wire Out From Back
Wire Length: 150mm (it Can Be Added As Requirement) Weight: About 20g (with Package)
High Light:

small rotary encoder

,

simple rotary encoder

Miniature optical rotary encoder with 18mm external diameter 2.5mm solid shaft 200 resolution used in subminiature motor



Specifications:



Brand HENGXIANG
External dimensions External diameter: 18mm
Thickness: 18mm
Solid Shaft Diameter: ⌀2.5mm
Resolution 36;50;60;100;200;250;256;360;400;500;1000;800;1600
Output phase Phase A,B,Z
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
Environmental temperature Operating temperature: -10~+70° (Non icing)
Storage temperature: -15~+75° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Top Resonse Frequency 80kHz Max
Top Rev 3000rpm
Protection grade IP40
Cable length 150mm
Shell Aluminium
Package Carton box
Net weight About 20g (with package)
Certification CE





More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.



Lead time:

1-3 working days for sample
7-10 working days for mass production



Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.



About HENGXIANG encoder Factory

our factory founded in 2001, ,main encoder products are China rotary encoder, incremental encoder, absolute encoder, magnetic

encoder, servo motor encoder, cnc rotary encoder,encoder module, encoder disc, encoder code, solid shaft encoder,heavy duty encoder,

hollow shaft encoder, spindle encoder,elevator encoder, industry encoder, flange solid shaft encoder, keyway encoder, slot encoder, etc

we could offer all kinds of encoders according to customer's requirements.

After more than 17 years of continuous development and efforts, our factory has built the engineer team,including 5-7 professional

engineers, both are highly experienced in study and develop in high technology of encoder.

As a professional manufacturer of rotary encoders, our factory independently develops dozens of product series, which are widely

used in elevators, servo motors, CNC machine tools, textile machinery, robots, wind power,

medical, assembly lines and other automation industries, with operations in 34 provinces and cities nationwide.

And more than 170 countries and regions around the world, won the trust and praise of customers.

Our SHANGHAI HENGXIANG ENCODER FACTORY has obtained a number of invention patents and utility model patents, and passed

the “Shanghai High-tech Achievement Transformation Project” certification,

ISO9001 quality management system certification and CE certification.
Our aim: to meet customer needs, create social value, service with heart, and work together for a win-win situation!
We warmly welcome new and old customers at home and abroad to come to the field to inspect and select and customize “Hengxiang” products.
